DC Geared Mini Motor G12 N20

DC Geared Mini Motor G12 N20

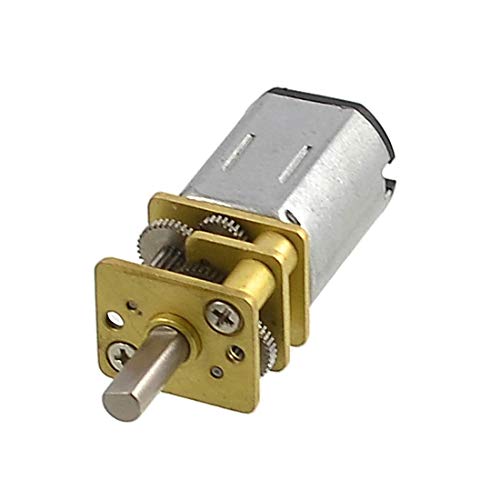

This is a DC Mini Metal Gear Motor, ideal for making robots. Light weight, high torque and low RPM. Fine craftsmanship, durable, not easy to wear. With excellent stall characteristics, can climb hills easily. You can also easily mount a wheel on the motor’s output shaft.Widely used on boat, model car, robotic, home appliances, linear motion control.

QUICK SPECS:

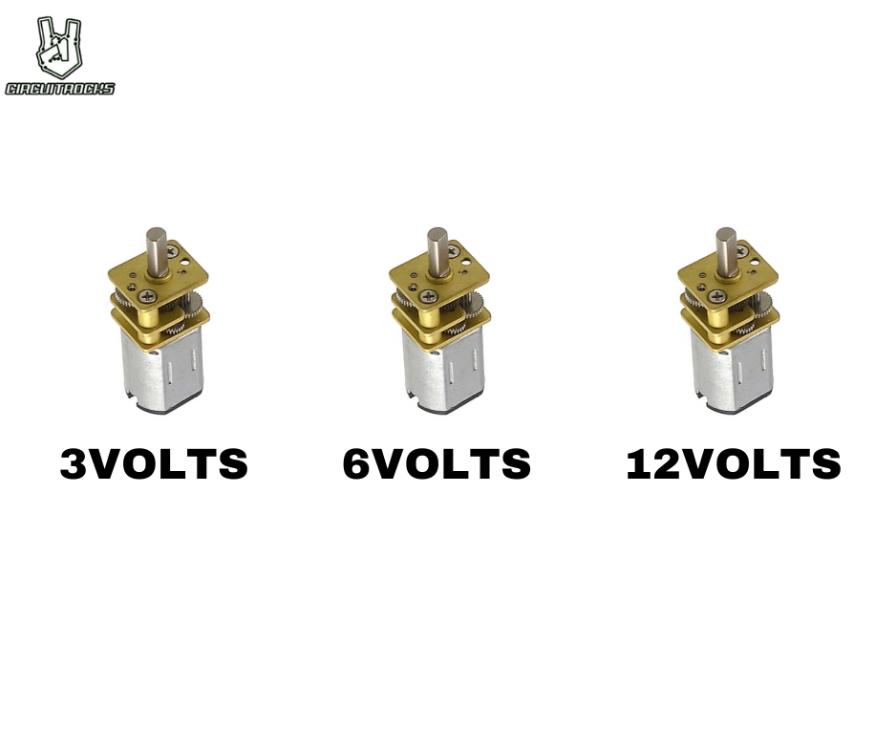

  • Rated Voltage : 6~12V
  • Revolving Speed : 100RPM @ 6V
  • Load Speed: 80RPM
  • Rated Torque: 2 kg.cm
  • Stall Torque: 16 kg.cm
  • Rated Current: 0.07A
  • Stall Current: 1A
  • Reduction Ratio: 1:10
  • Total Length : 34mm
  • Gear Material: Full Metal
  • Gearbox Size : 15 x 12 x 10mm (L*W*H)
  • Shaft Size : 3 x 10mm(D*L)
  • Net Weight : 10g
QUICK LINKS

Write a review

Please login or register to review

DC Geared Mini Motor G12 N20

  • Brand: OEM
  • Product Code: AN310
  • Availability: 41
  • ₱227
