Bluetooth HC 06 Serial Module

Bluetooth HC 06 Serial Module

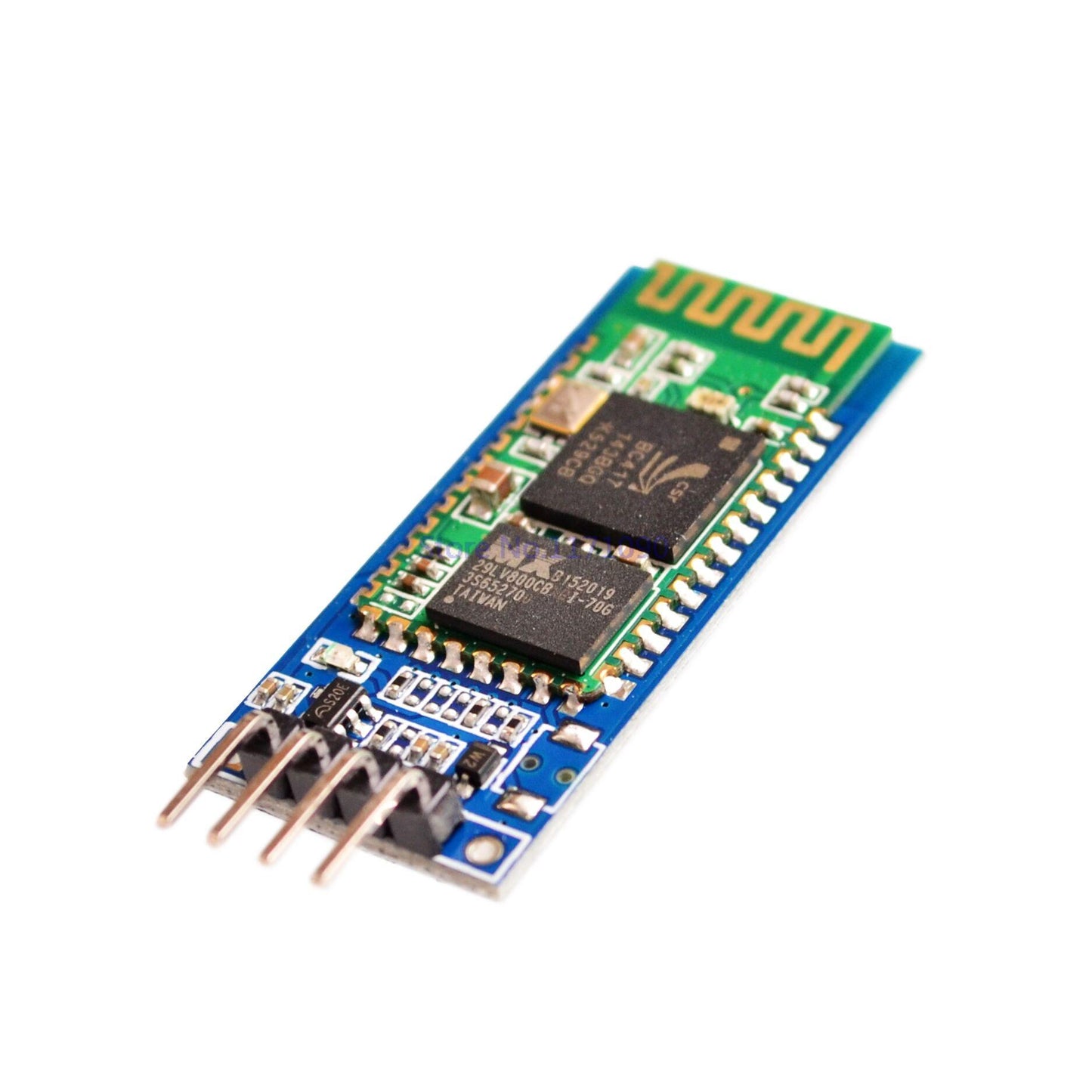

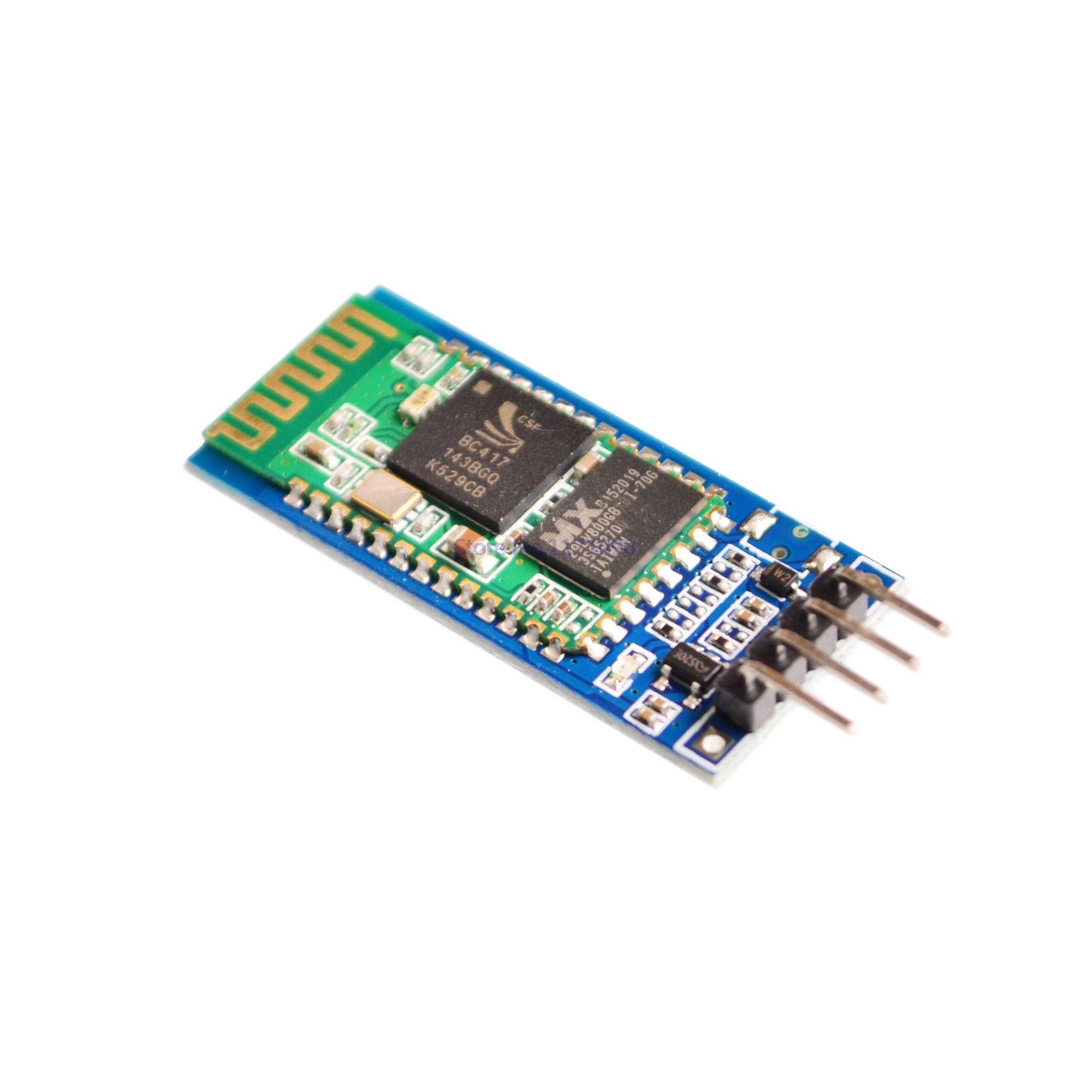

This small size Bluetooth HC-06 Serial Module TTL transceiver module allows your target device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer. It's easy to use and completely encapsulated.

PIN define:

  • STATE -You can connect a external LED to indicate the bluetooth state. It same as the state LED on the module.
  • RXD -Receive data
  • TXD -Send data
  • GND -Power ground
  • VCC -DC power in (3.6V-6VDC)
  • KEY -Turn on/off this module by this pin.(1- OFF, 0/Open- ON)

SPECIFICATIONS:

  • TTL data transparent transfer between a host Bluetooth device.
  • Works with any USB Bluetooth adapters.
  • Coverage up to 30ft.
  • Built in antenna.
  • Power input: 3.6V-6VDC (Can not higher than 6V)
  • Mini Size
AT command sets
  • Communication test
Send 'AT',If module received this command success the module will reply 'OK'
  • Change Baud Rate
Modify the Baud Rate of the module:Send 'AT+BAUD1' (BAUD must be capitalized),If setting success the module will reply 'OK1200'

The number after BAUD means the baud rate you want set:

1----1200bps

2----2400bps

3----4800bps

4----9600bps

5----19200bps

6----38400bps

7----57600bps

8----115200bps

9----230400bps

A----460800bps

B----921600bps

C----1382400bps

  • Change Device Name

Send 'AT+NAMEname',If module received this command success the module will reply 'OKname'

  • Change Pair number

Send 'AT+PINxxxx',If module received this command success the module will reply 'OKsetpin'

xxxx is that pair number you want to set. It must be 4 digits.
