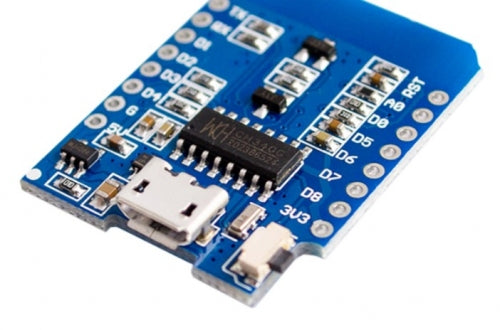

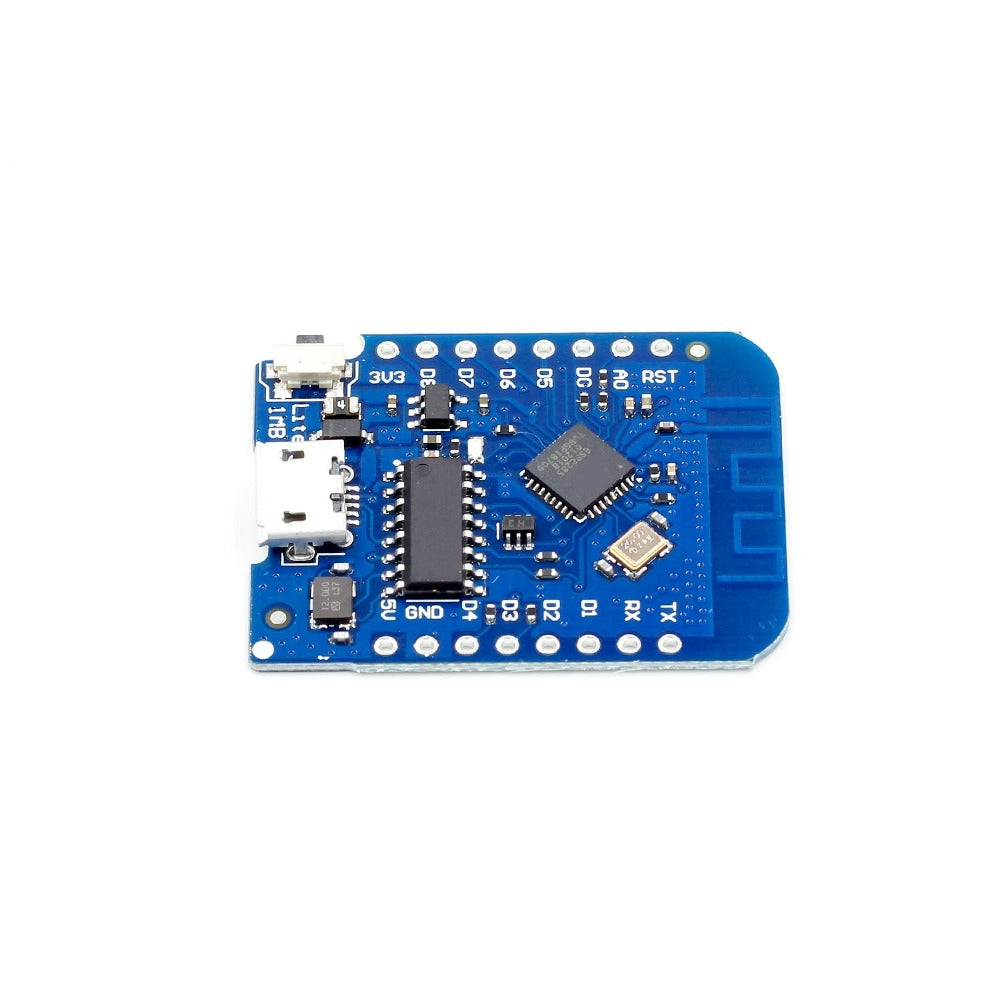

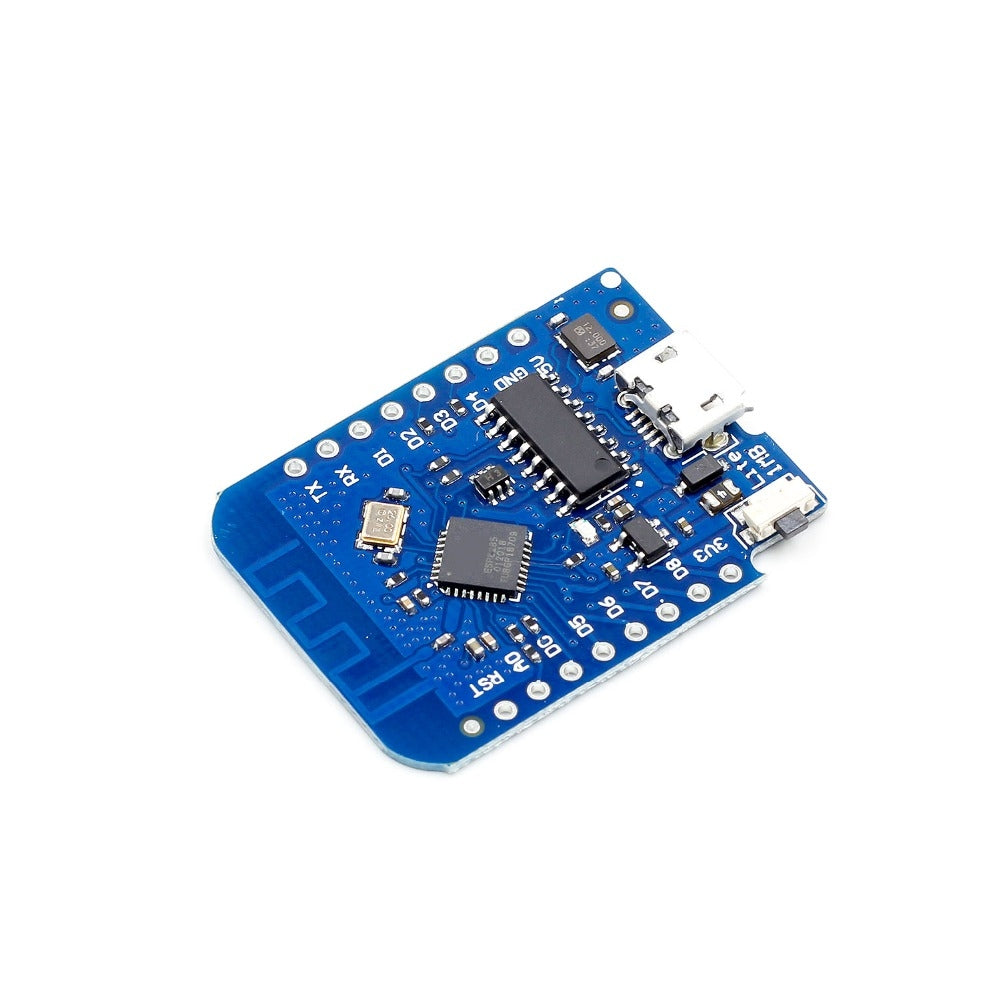

WeMos D1 Mini Lite — The Smallest ESP8285 Board for Wearables and Space-Constrained Builds
The WeMos D1 Mini Lite is built around the ESP8285 — not the ESP8266. The ESP8285 is a compact variant of the ESP8266 with 1 MB of flash integrated directly into the chip die, eliminating the external flash IC and enabling an incredibly small board footprint. If you are building a wearable, a tiny sensor node, or any project where PCB size is a hard constraint, the D1 Mini Lite is smaller than the already-compact D1 Mini.
WeMos D1 Mini Lite vs D1 Mini — what is the difference?
| Feature | D1 Mini Lite (this board) | WeMos D1 Mini |
|---|---|---|
| Core chip | ESP8285 (1 MB flash integrated) | ESP8266 + external 4 MB flash |
| Flash memory | 1 MB (internal to chip) | 4 MB (external SPI flash) |

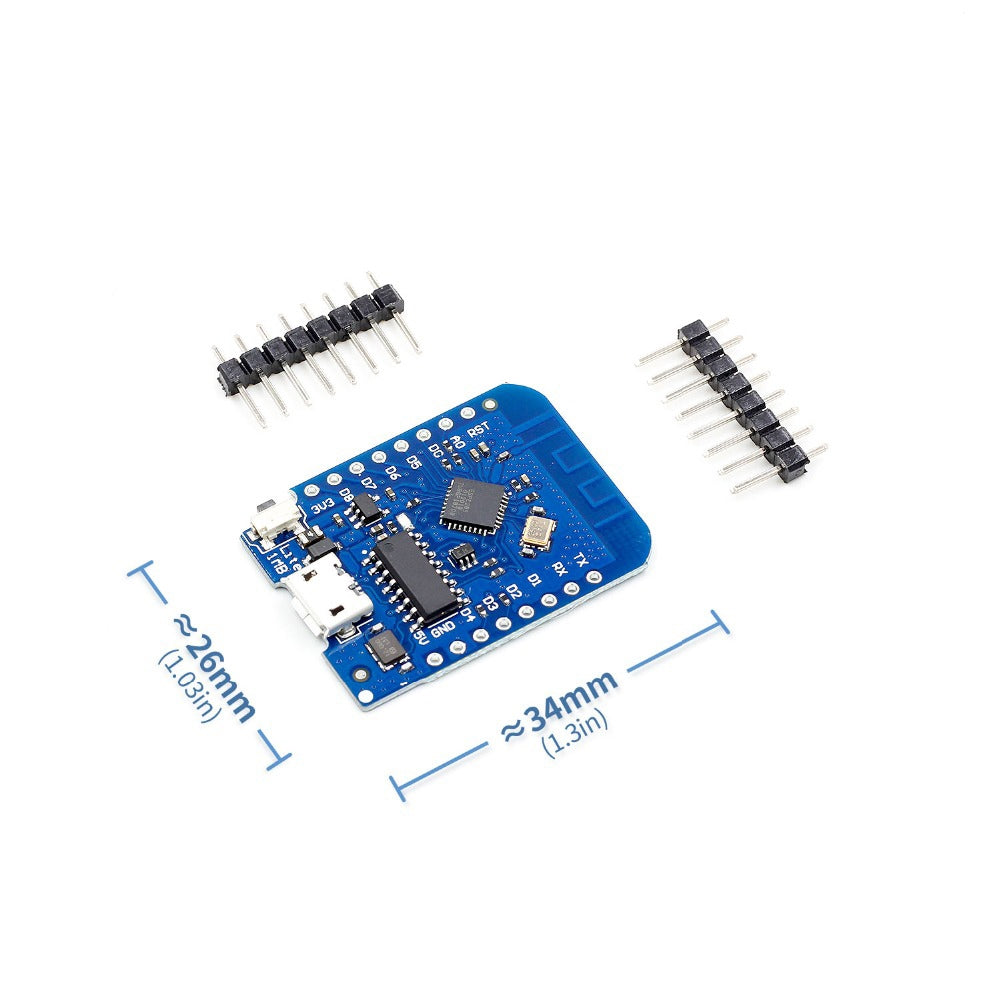

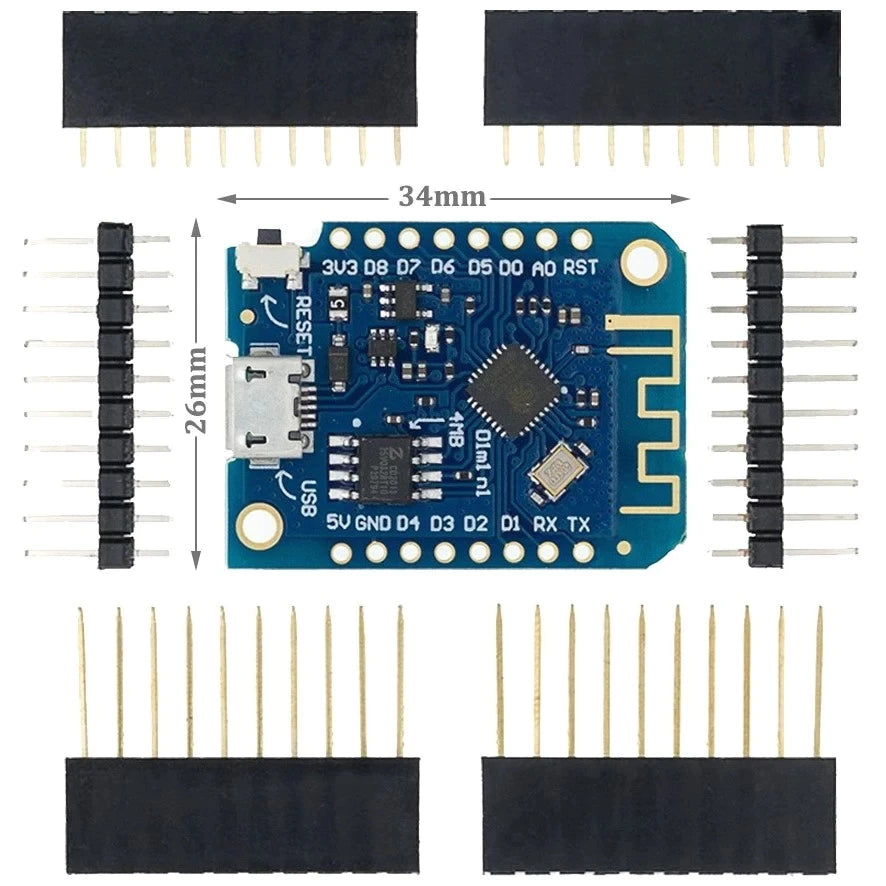

| Board size | Smaller (no external flash IC) | Compact but slightly larger |
| GPIO count | 11 digital + 1 analog | 11 digital + 1 analog |
| Shield compatible | ✅ D1 Mini shields | ✅ D1 Mini shields |
| Best for | Wearables, tiny sensor nodes, space-critical builds | General IoT prototyping with more flash |
Key features
- ESP8285 chip: 1 MB integrated flash — no external flash IC, smaller PCB
- D1 Mini shield compatible: Works with all WeMos D1 Mini shields (relay, OLED, motor, etc.)
- Micro-USB: Power and programming from any USB port
- 11 digital GPIO + 1 analog: Full I2C, SPI, UART, PWM support
- 3.3V logic: Direct connection to most modern sensors
- Arduino IDE compatible: Select "Generic ESP8266 Module" or "WeMos D1 Mini Lite"
Technical specifications
| Core Chip | ESP8285 (ESP8266 with 1 MB integrated flash) |
|---|---|
| Flash Memory | 1 MB (internal) |
| Digital GPIO | 11 (PWM, I2C, SPI, UART) |
| Analog Input | 1 × ADC (0–3.3V, 10-bit) |
| WiFi | 802.11 b/g/n, 2.4 GHz |
| Power Input | Micro-USB or 5V pin |
| Logic Level | 3.3V |
| Shield Compatibility | WeMos D1 Mini shields |
Frequently Asked Questions
Is the ESP8285 the same as ESP8266? Almost identical. The ESP8285 integrates 1 MB flash on-chip instead of using an external SPI flash. Firmware and code compatibility is essentially the same.
Will D1 Mini shields fit this board? Yes. The D1 Mini Lite uses the same pin layout as the WeMos D1 Mini, so shields are physically and electrically compatible.
Can I run MicroPython on this? Yes, but 1 MB is more constrained than the D1 Mini's 4 MB. For MicroPython with a file system, the D1 Mini (4 MB) is more comfortable.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
