Waterproof Integrated Ultrasonic Ranging Module- JSN-SR04T - Ultrasonic sensors are also known as sonar sensors. This sensor has two channels, the trigger and echo channel. It works by the trigger channel sending sound waves and the echo channels waiting for the sound wave to bounce back. Distance is measured based on the time the sound wave has bounced back.

This sensor can sense up to 4.5m(450mm). It works with a 5V power supply, with a working current of 30mA, and an idle current of 5mA. It also has an acoustic emission frequency of 40KHz.

This sensor is outdoors capable. The sensor is waterproof but not the primary circuit.

This sensor could are for projects that measure distance like water level monitoring or even an obstacle avoidance project.

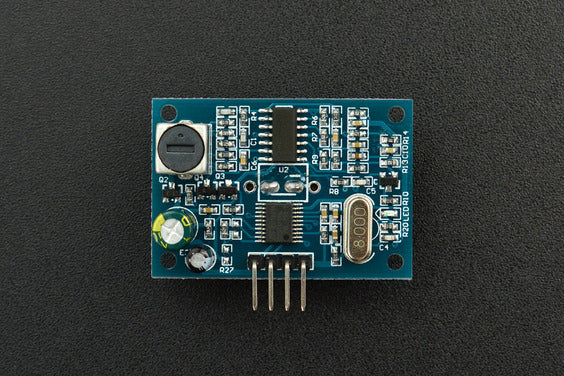

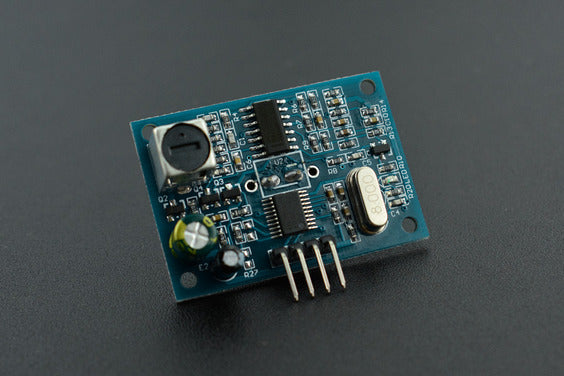

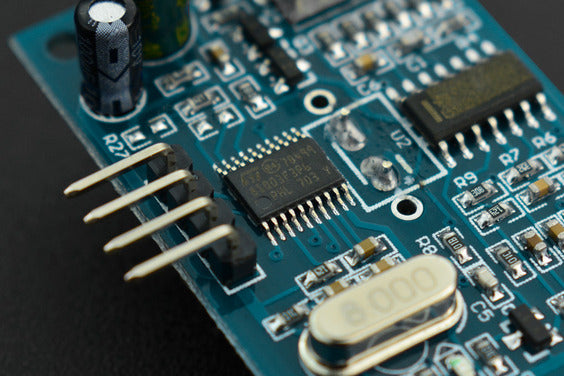

Waterproof Integrated Ultrasonic Ranging Module- JSN-SR04T

This waterproof ultrasonic obstacle sensor's primary advantage is its ability to pinpoint the sensing component in any control circuit from a distance. An industrial-grade distance measuring sensor, this ultrasonic sensor measures distance. It performs similarly to other inexpensive ultrasonic transducers, but it is waterproof, compatible with hard environments, and delivers greater performance. The Arduino interface is simple to use.

Pin Configuration/Pin.

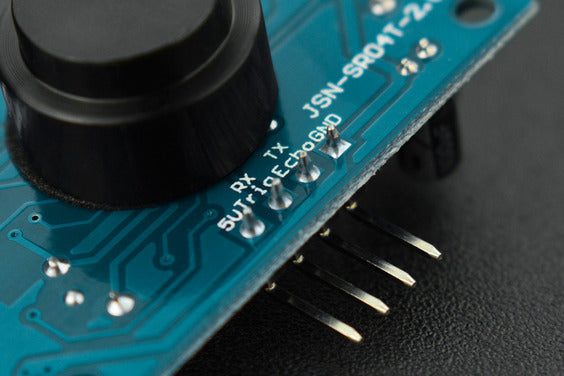

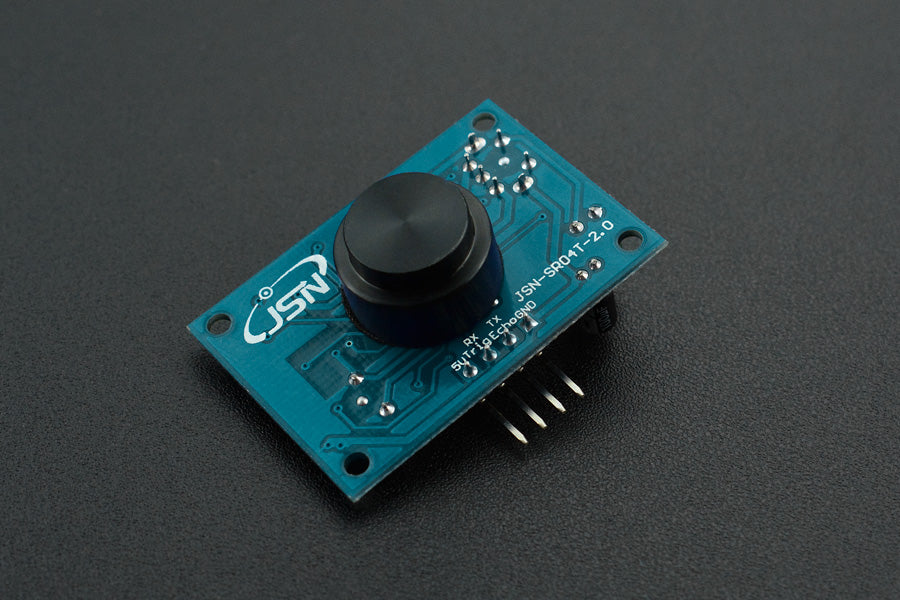

Below is an illustration of the pin arrangement or pin diagram for the JSNSR04T Waterproof Ultrasonic Sensor.

Pin 1: (5V): The sensor's positive power supply is indicated by this pin.

Pin 2 (Trig) is the sensor's input pin and is kept at an active high for 10 microseconds.

Pin 3: (Echo): This pin designates the sensor's output pin, which is held at an active high state for a duration equal to the time it takes for an ultrasonic wave to travel back to the sensor.

Pin 4: (GND): This pin stands for the system's ground and is connected to the ground pin.

JSN SR04T Technical Specifications:

The JSNSR04T Waterproof ultrasonic sensor's features and technical details are listed below.

  • It comes in a compact size and is quite simple to use.
  • It offers robust anti-interference and high measurement precision.
  • Low voltage is needed, and less power is used.
  • For wet and inaccurate measurements, it is a closed incorporated waterproof cable probe.
  • DC 3.0V to 5.5V is the range of its operating voltage.
  • Less than 8mA is the working current of it.
  • The frequency of its probe is 40kHz.
  • The maximum range is 600 cm.
  • 20 cm is the most recent range.
  • It has a 1 cm distance precision.
  • 1mm is the resolution.
  • 75° is the measurement angle.
  • Less than 50 degrees is the beam angle.
  • Its Quiescent current is 5mA.
  • The total current draw is 30mA.
  • It has a trigger signal with 10microseconds above the TTL pulse and serial port to send 0X55 instructions.
  • The echo signal output matches the signal level of output pulse width or TTL.
  • The required type will be - for positive power 3-5.5V, Trig (RX) RX, Echo (output) TX and for negative Power supply GND.
  • The product size is L42*W29*H12mm.
  • The range of operating and storage temperature is -20°C to +70°C
  • The color of the product is blue.
