Add More USB Ports in a Compact, Easy-to-Control Hub

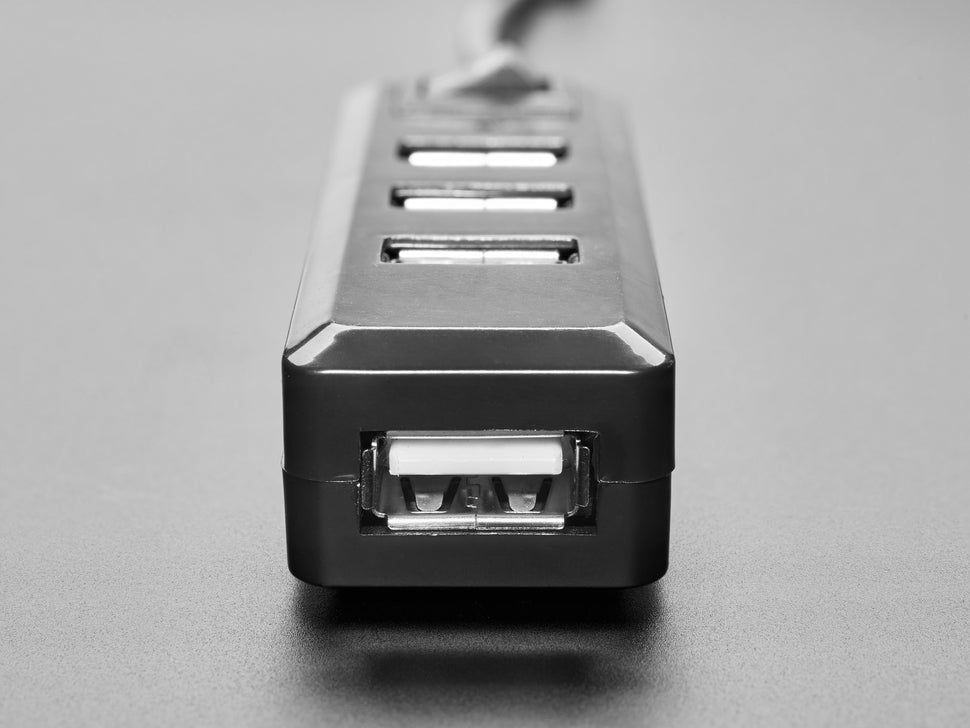

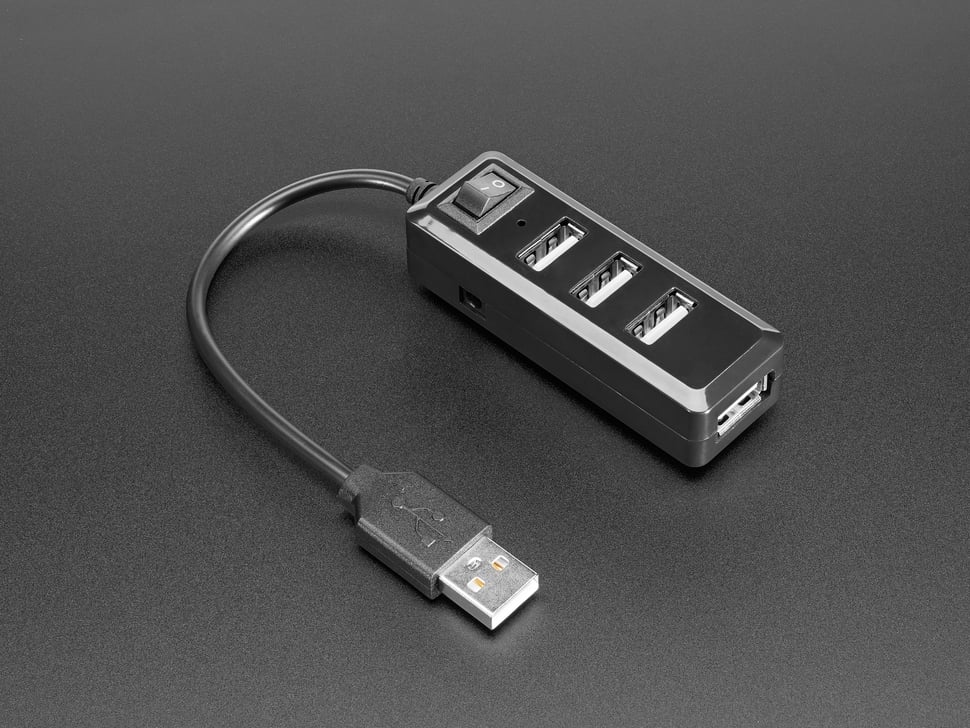

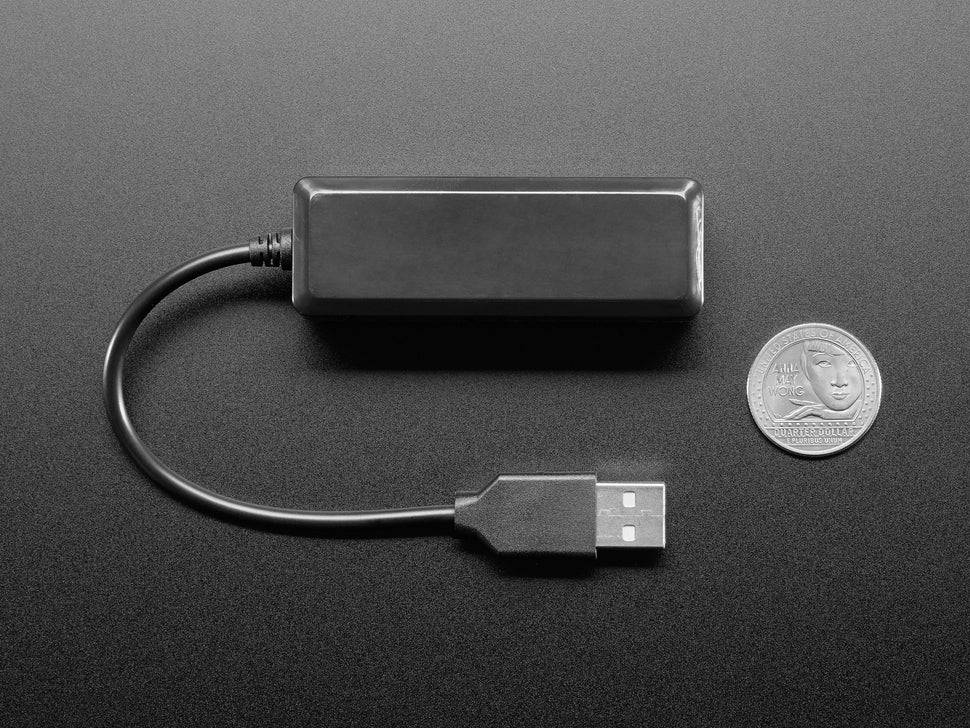

The USB Mini Hub with Power Switch is a compact and practical way to expand a single USB port into four usable connections for your desk, Raspberry Pi setup, or portable computer build. It is a handy solution when you need to connect multiple accessories like keyboards, mice, flash drives, adapters, or other USB devices without taking up too much space.
What makes this mini hub especially useful is its built-in on/off switch, which lets you control all four USB ports from one simple switch. That makes it convenient for setups where you want quick control over connected peripherals without unplugging everything one by one.
Important: This hub includes a 1.35mm DC power input, but it is connected directly to the 5V line. If you plan to use external power, the original USB 5V line may need to be modified internally first.
Why you'll love it
- 4 USB ports in one hub: Easy way to expand a device with limited USB connectivity
- Single power switch: Turns all four ports on or off together
- Compact footprint: Great for crowded desks, compact projects, and SBC builds
- Useful for Raspberry Pi and similar boards: A simple upgrade for devices with limited onboard USB ports
- Plug-and-use form factor: Handy for laptops, desktop PCs, and embedded projects
What you can build
This mini USB hub is ideal for Raspberry Pi workstations, retro gaming builds, desktop test benches, portable Linux or SBC setups, classroom kits, embedded projects, and any setup where you need more USB device connections in a small space.
Starter bundles
Pair it with a Raspberry Pi, USB keyboard, USB mouse, and USB WiFi adapter for a compact workstation setup.
Recommended add-ons
Useful extras include USB cables, flash drives, OTG adapters, USB Ethernet adapters, and power accessories for cleaner desktop or single-board-computer builds.
Technical specifications
| Product | USB Mini Hub with Power Switch |
|---|---|
| USB Ports | 4 × USB 2.0 ports |
| Switch | Single on/off switch controlling all four ports |
| Power Input | USB cable input, plus 1.35mm DC jack |
| External Power Note | DC jack is tied directly to the 5V line |
| Use Case | Raspberry Pi, BeagleBone Black, laptops, desktop computers, and other USB host devices |
| Hub Size | 71.5mm × 24.5mm × 18mm |
| Cable Length | Approximately 13cm / 5" |
| Weight | 27.8g |
Power & usage notes
All four USB ports are powered through the attached USB cable during standard use. The built-in switch controls the four ports together, which is useful for quickly enabling or disabling attached devices.
The onboard DC jack can be used as an external power option, but because it is directly tied to the 5V line, advanced users should review power routing carefully before applying external power in modified setups.
What’s in the box
1 × USB Mini Hub with Power Switch
Frequently Asked Questions
How many ports does this hub have?
It gives you four USB 2.0 ports from a single USB connection.
What does the switch control?
The single switch controls all four USB ports together.
Is this good for Raspberry Pi?
Yes. It is a practical option for Raspberry Pi and other single-board computers that need more USB ports.
Can I use external power?
There is a 1.35mm DC input, but it is directly tied to the 5V line, so external power setups should be handled carefully.
Is this only for single-board computers?
No. It can also be used with laptops, desktops, and other USB host devices that need extra ports.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
