Turnigy Accucell 6 80W 10A 1~6S Balancer/Charger (Suitable for LiHV)
The Turnigy Accucel 6 Balance Charger utilizes quality FETs and resistors to accurately balance and charge LiPoly, LiFe, LiHV, NiMH, NiCd, and Pb batteries. If you are looking for a charger for your Bolt or any other LiHV batteries this unit is perfect as a low-cost solution. The Accucel 6 will handle LiHV/LiPoly/LiFe up to 6S and NiMH/NiCd up to 15S, showing individual cell voltage throughout the charge cycle.
The intuitive menu system means charging, and cycling is an easy process and can be done quickly and accurately. The Accucel 6 is a DC-only input charger; it requires a DC input of between 11~18V, which can be supplied from either a battery or an AC mains power supply. On the power input side, it uses the popular XT60 (male) connector, so if you wish, you can power it on the field using a large capacity li-poly pack with an XT60 connector; no need for adapters or lugging a heavy 12V car battery about. Other connections are a series of JST-XH balance connector ports for 2~6S, temperature sensor port (sensor lead not supplied), PC Link port, and the 4mm banana plug charging outputs.
Using the PC Link port, you can connect this charger to your PC using a USB cable (not supplied); this allows you to monitor pack voltage, cell voltage, and other data through real-time graphs during charging. You can also control charging and update firmware from the "Charge Master" PC software download. A selection of input and output leads are supplied with the charger to simplify connections; for a piece of other adapters, please see related items.
Features:
- Microprocessor controlled
- Individual cell balancing
- LiIon, LiPoly, LiFe, NiCd, NiMH, and Pb are capable
- Terminal Voltage Control (TVC)
- Internal Resistance and Lipo Battery Meter
- Input voltage monitoring (Protects car batteries at the field)
- Can store up to 10 different charge/discharge profiles
Specs:
- Input Voltage: 11~18V
- Max Charge Power: 80W
- Max Discharge: 10W
- Charge Current Range: 0.1~10.0A
- Discharge Current Range: 0.1~2.0A
- LiIon/LiPoly Cells: 1~6
- NiMH/NiCd Cells: 1~15
- Pb Battery Voltage: 2~20V
- Controls: 4 programming buttons
- Display: Backlit 2x16 LCD
- External Balance Ports: JST-XH 2~6S
- Charging Output Port: 4mm banana plugs
- DC Input Port: XT60 male
- Other Ports: Temperature sensor and PC link
- Case: Aluminum
- Dimensions: 137.5x80.5x30mm
- Weight: 270g

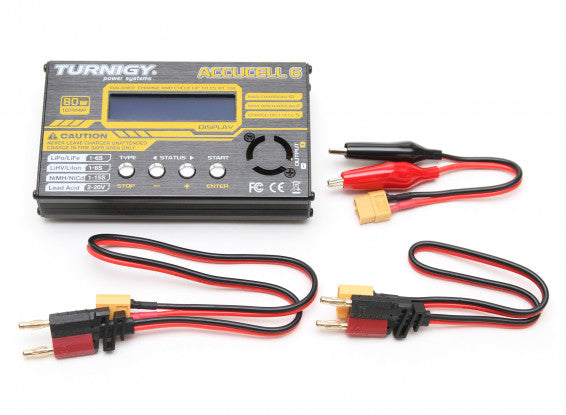

Included:
- Turnigy Accucel 6 80W 10A 1~6S Balancer/Charger (Suitable for LiHV)
- DC Input Cable with XT60 female connector and crocodile clips
- 430mm XT60 male to 4mm banana plug charge lead
- 300mm XT60 male to 4mm banana plug charge lead
