Thermistor NTC 3950 100K

The unique characteristic of these 100K ohm thermistors is that they show a significant change in resistance with only a slight temperature change. For the 3D printer RepRap, the thermistor is the optimal temperature sensor. To measure the negative temperature, it is also the other name coefficient in NTC 3950 100K.

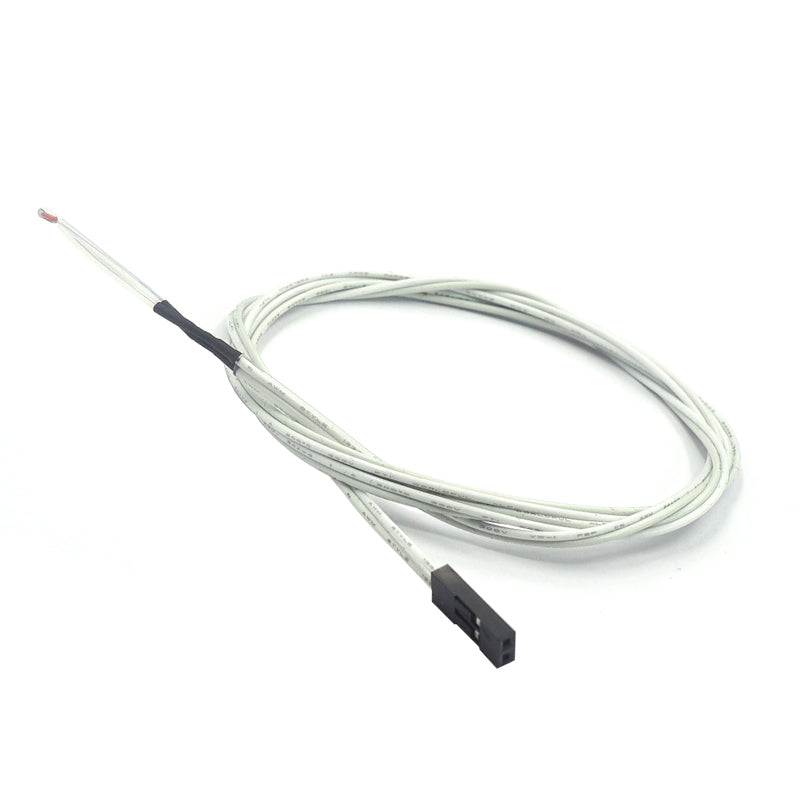

It adheres to a predetermined curve that the thermistor manufacturer provides. As the temperature rises, resistance with a positive thermal coefficient (PTC) will rise while that with a negative thermal coefficient (NTC) will fall. An exact table of measurements is sometimes preferable to the linear formula because the formula is not always linear in practice. This temperature sensor for 3D printer replacement has a 100k NTC thermocouple and a 1-meter cable.

Features:

·         Temp. Coefficient type – NTC

·         Resistance - 100kΩ

·         Maximum Power – 75mW

·         Operating Temp. – Min 40 degrees Celsius to Max 250 degrees Celsius

·         Lightweight and Small size

·         Stable

·         Highly resistant

Some specialisation of Thermistor NTC 3950 100K

·         By switching from a standard temperature probe, temperature measurement is immediately exposed to the resistance package temperature measurement.

·          The initial thermocouple temperature is replaced by printing high-temperature filament when the temperature measurement range is raised from -50 to +270.

·         To guarantee the longest possible service life with accurate temperature measurement, the latest iteration of the temperature measuring thermistor adopted stainless steel, resulting in an internal temperature package.

·         Thermistor has a high-temperature cable that can tolerate greater temperatures, and for the convenience of the user, the wires have a line connection, allowing the user to tear them as needed.

·         By incorporating the temperature head cylinder size, it facilitates the customization of various specifications.

Applications of using Thermistor NTC 3950 100K

·         Compensation,

·         Control,

·         Electronic Thermostats,

·         Liquid Level Sensing,

·         Automotive Electronics. Etc.

FAQs

Q-1. NTC mean in Thermistor?

Ans. It stands for Negative Temperature Coefficient.

Q-2. What is the temperature of this thermistor in resistance?

Ans. The temperature is 1,00,000 Ohms.

Q-3. What is the maximum rating of Thermistor NTC 3950 100K?

Ans. The power is 75mW

Q-4. Is this thermistor accurate?

Ans. It provides highly sensitive temperature when it is calibrated using a resistance temperature table.
