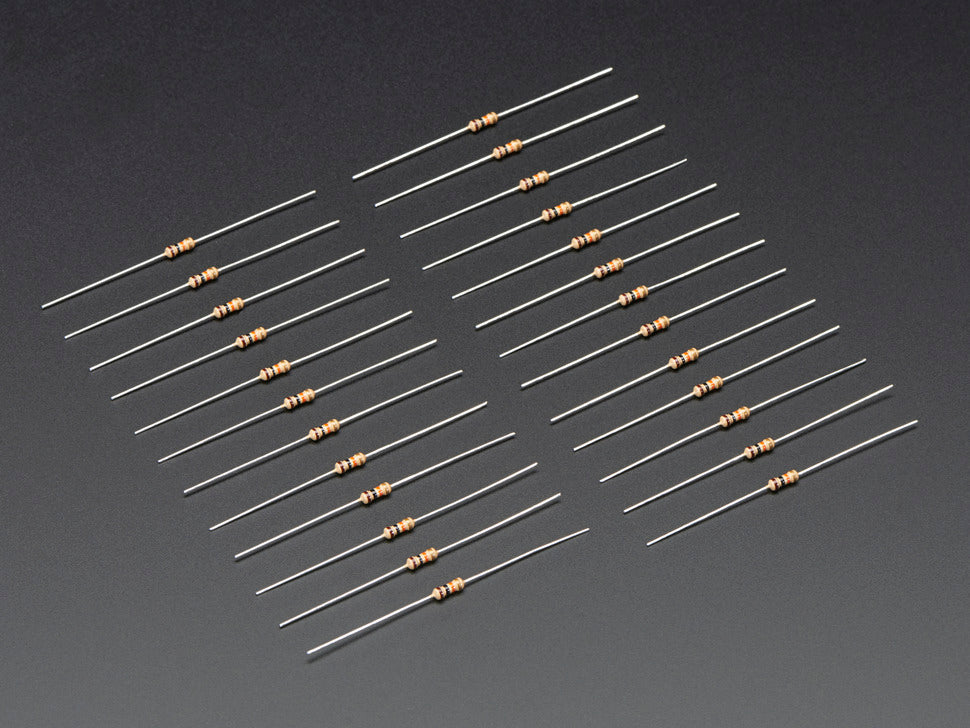

10KΩ carbon-film through-hole resistor. 5% tolerance, 1/4W max dissipation, 300V max. 0.4mm leads fit standard 2.54mm-pitch breadboards and perfboards. Pack of 10.
specs
| Resistance | 10 kΩ |
|---|---|
| Tolerance | 5% (9.5–10.5 kΩ) |
| Power | 1/4 W (0.25 W) |
| Max voltage | 300 V |
| Type | Carbon film, axial |
| Lead diameter | 0.4 mm |
| Pack | 10 pcs |
common uses
- Pull-up / pull-down on GPIO inputs (Arduino, ESP32, Raspberry Pi)
- Voltage divider for scaling analog sensor outputs
- I2C bus pull-ups on breakouts that lack onboard pull-ups
- General breadboard prototyping and current limiting
notes
Color code: brown-black-orange-gold. Confirm with a multimeter if mixing with older resistor stocks. Ships from Manila with same-day cutoff at 4 PM weekdays.
Q: How do I read the color code?Brown-Black-Orange-Gold reads as 10,000Ω ±5%. Bands left to right; gold band is the tolerance ring.
Q: Will these fit a standard 2.54mm breadboard?Yes. 0.4mm lead diameter slides into 2.54mm holes without forcing.
Q: Why 10K over other values?Standard pick for I2C pull-ups, MCU input pull-up/down, and op-amp voltage dividers. High enough to keep current low, low enough to fight noise.
Q: What's your return policy?7-day inspection window. If any are out-of-spec, email us with a photo of the meter reading and we'll replace.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
