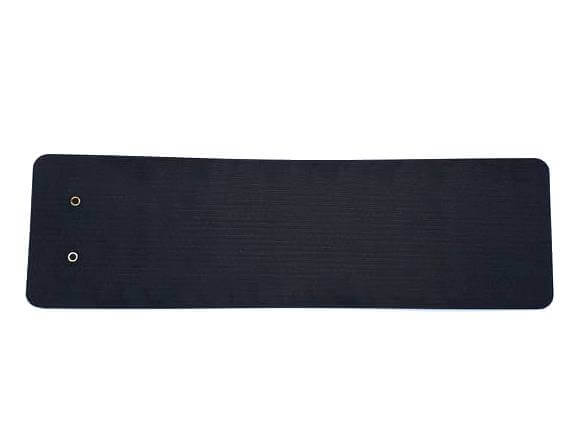

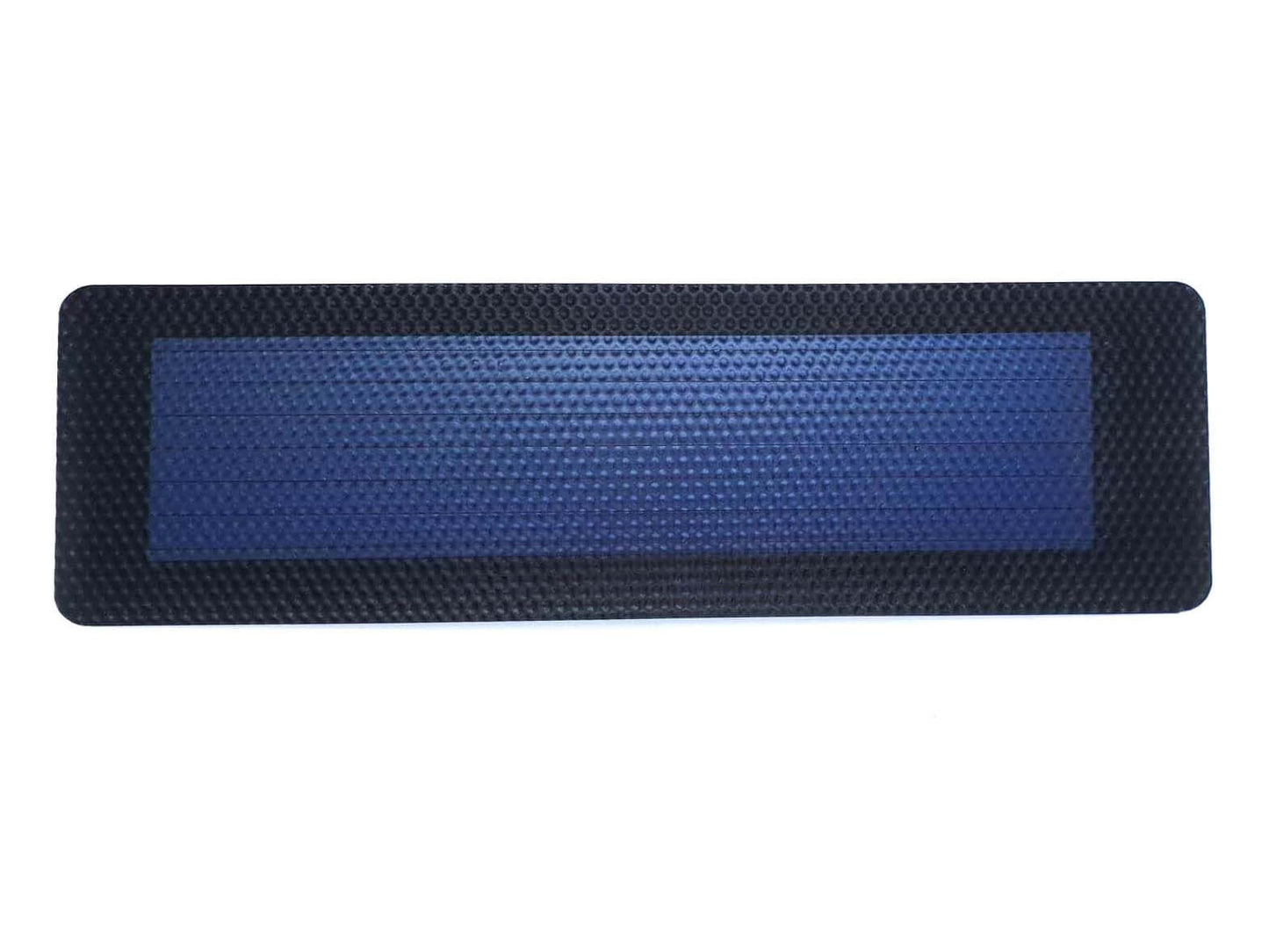

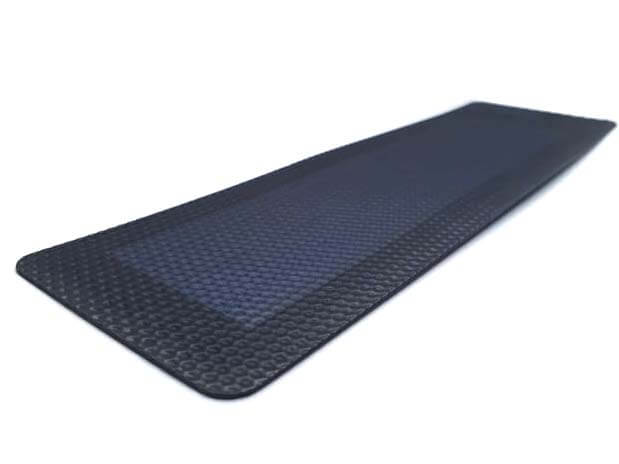

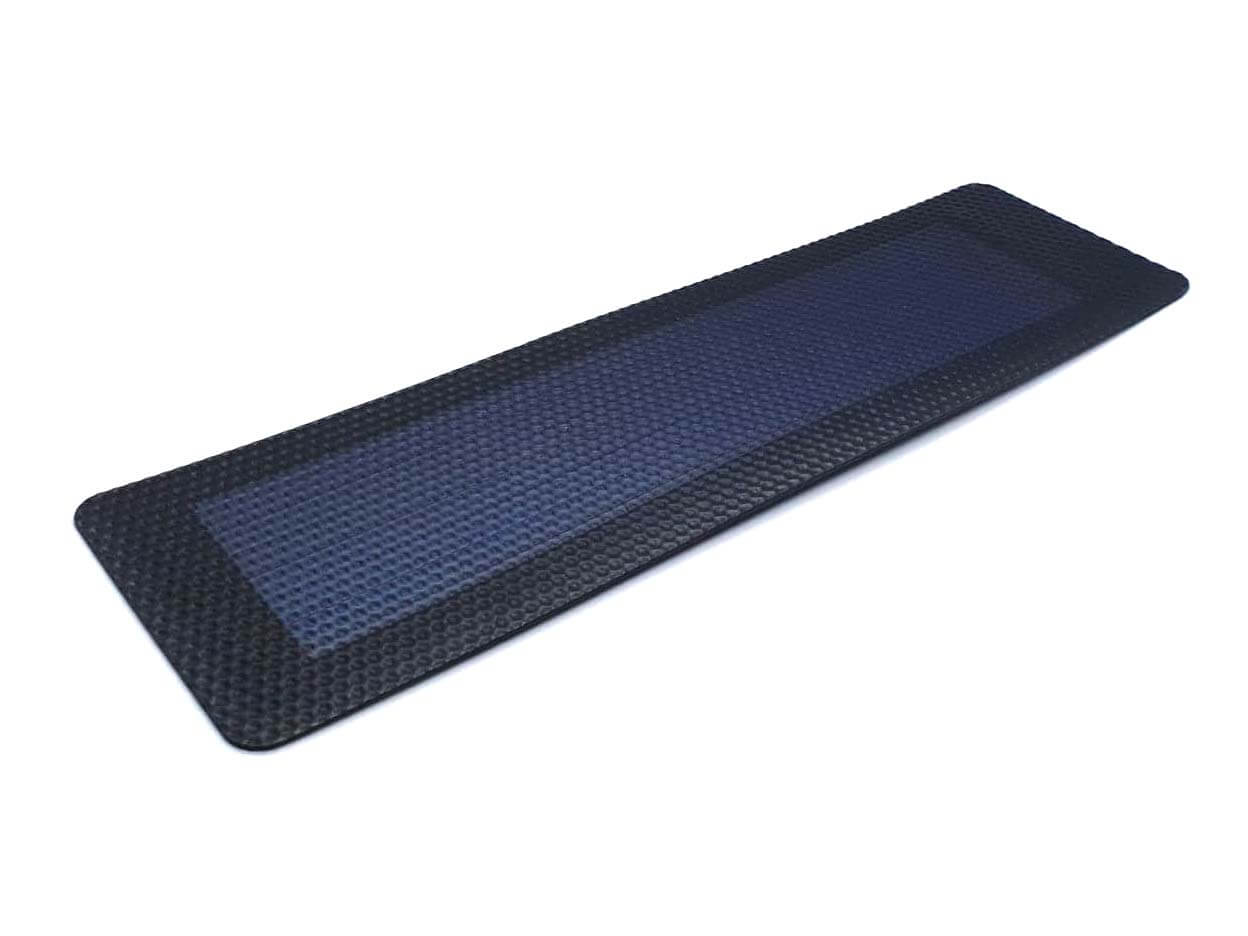

Looking to power-up your wearable projects? This solar panel is the thing for that. You can bend, sew the edge and the surface is like a hardened cloth. From a far, it is hardly recognized as a solar panel.
You can apply this on jackets and light-up all the LEDs with it.
The test cases are with the spectrum of AM 1.5, light intensity of 1000W/㎡, and cell temperature of 25 degrees Celsius.
QUICK SPECS:
- Operating Voltage: 1.5V
- Operating Current: 250mA
- Open-circuit voltage: 2.0V
- Short-circuit current: 420mA
- Power Rating: 0.5W
- Environment Temperature: -40 ~ 80 degrees Celsius
- Size L x W x H: 165mm x 38mm x 0.5mm
- Weight: ~18 g
- Material: Durable, High Transmittance ETFE film
- Adhesive: weather, high transmittance fast curing EVA Film
- Battery: Flexible Triple Junction Amorphous Silicon Thin Film
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
