Romeo BLE Mini Small Arduino Robot Control Board with Bluetooth 4.0

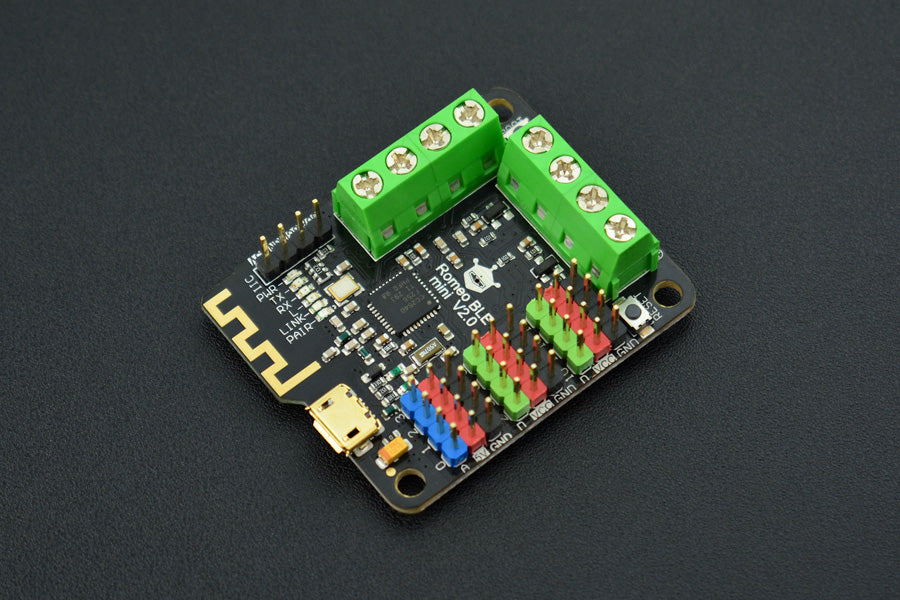

Romeo BLE mini is a simplified version of Romeo board. It inherits all functions of Romeo BLE. Moreover, IT GOT A SMALLER SIZE! Yes, you got it all. It has 8 Digital pins, 4 analog pins and integrates Bluetooth 4.0 wireless communication function. And it can easy to drive the mobile platform using two 1.2A H-bridged Motor Driver to meet the needs of small scale robots. We hope Romeo BLE mini will be a good assistant to Makers.

Version Update: V2.0 has upgraded its motor driver IC, it replaces HR8833 with TB6612 motor driver chip. TB6612 has the same control logic with L298 motor driver. The code will be compatible with Romeo robot control board. And it finally breakouts 2 interrupt pins now! You can connect encoders to make PID motor control.

Romeo BLE mini Projects:

• How To Make Arduino Bluetooth Tank with Custom Android Application (V1.0)

• How to Build a BB-8 Robot

• How to Build a Smartphone Controlled Arduino Robot In Only 1 hour

• How to make a Wobbly Penguin Arduino Robot

FEATURES

• Support Gravity-3Pin interface, color-coded, compatible with servos and Gravity sensors & modules

• Support external power supply automatically switch, can simultaneously USB and external power supply

• Support wireless download program / wireless communication function

• Support mobile phone APP control

• Two-way H-bridged Motor Driver

• Support servo external power input

• Supports AT commands to configure BLE

• Support serial transmission

• Support master and slave switch

SPECIFICATION

• BLE chip: TI CC2540

• Transmission distance: 30m (open area)

• Microprocessor: ATmega328P

• Board selection: Arduino UNO

• Flash: 32 KB (ATmega328P) of which 0.5 KB used by bootloader

• SRAM2: KB (ATmega328P)

• EEPROM: 1 KB (ATmega328P)

• Clock Frequency: 16 MHz

• Digital I/O Pins: 8

• PWM Digital I/O Pins: 4 (D3, D9, D10, D11)

• Analog Input Pins: 4

• Output current: 1.2A single-channel continuous drive current

• Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)

• Motor Drive Pins: D4, D5, D6, D7

• microUSB connector

• 2x2A H-bridge motor driver

• Size: 45x38.5mm

DOCUMENTS

• Romeo BLE Mini V2 WIKI

• Romeo BLE Mini V1 WIKI

• More Documents

SHIPPING LIST

• Romeo BLE mini V2.0 x1
