Raspberry Pi Zero WH Package E with 2.13inch e-Paper HAT

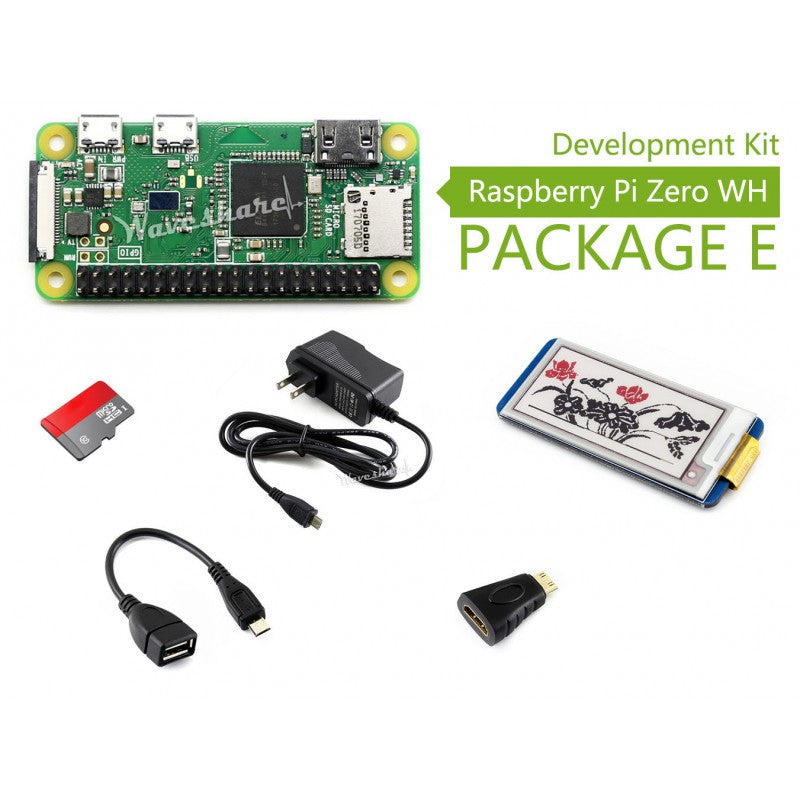

This development kit includes: the Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers), 16GB Micro SD Card, 5V 2.5A Power Adapter, 2.13inch e-Paper HAT (B) which is a three-color e-ink display.

The kit also comes with some most basic components you may need to get going with your Pi Zero: Mini HDMI to HDMI Adapter, Micro USB OTG Cable.

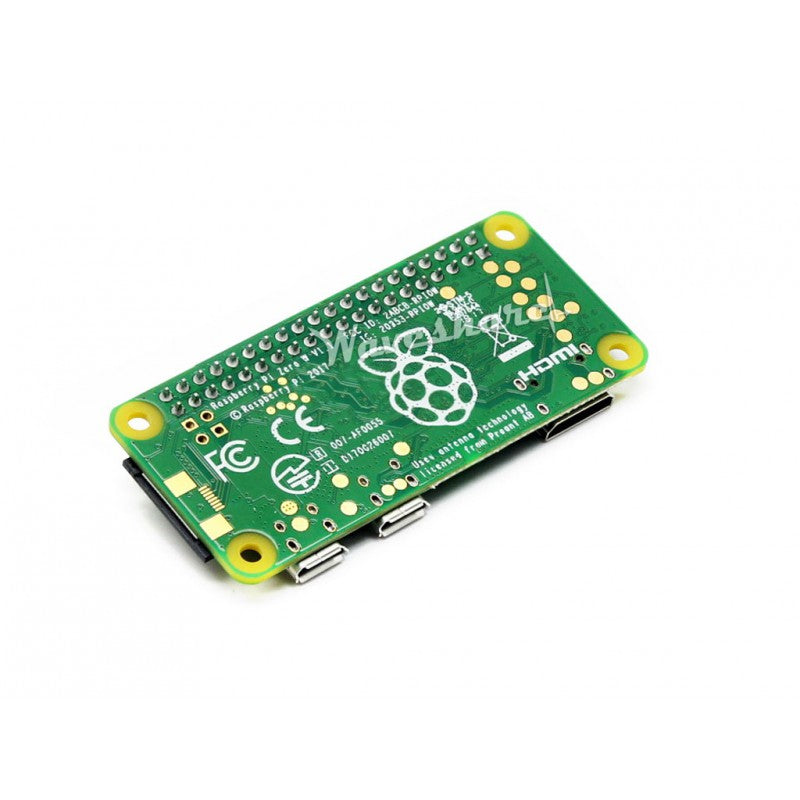

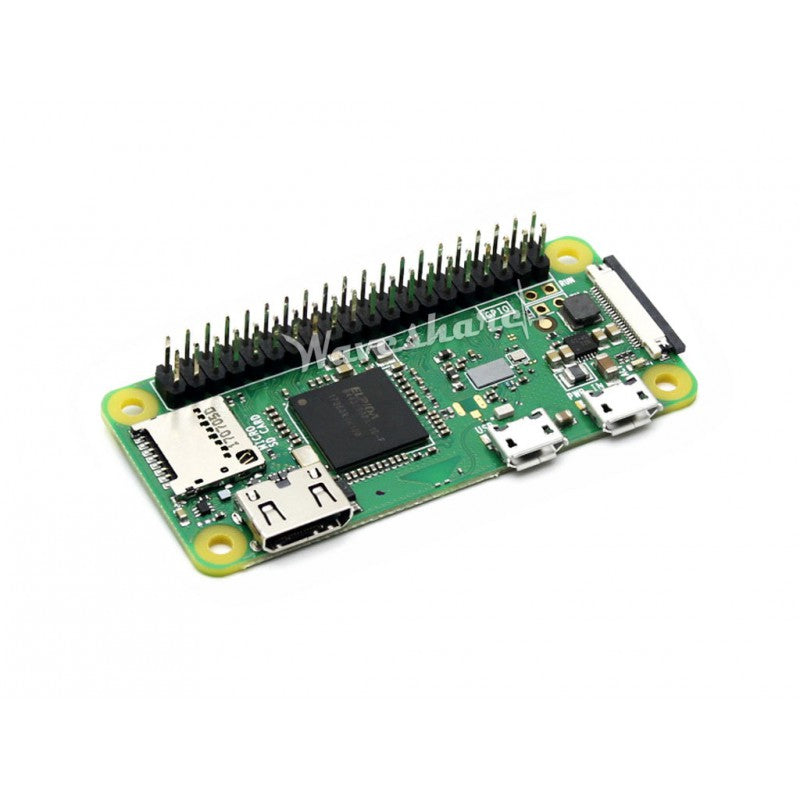

• Broadcom BCM2835

• 1GHz ARM11 single-core processor

• 512MB RAM

• Added wireless connectivity

• 802.11 b/g/n wireless LAN

• Bluetooth 4.1

• Bluetooth Low Energy (BLE)

• 40PIN pre-soldered GPIO headers

• Micro SD card slot

• Mini-HDMI port (1080p60 video output)

• Micro-USB power

• Micro-USB OTG port

• CSI camera connector

• Composite video header

• Composite reset header

• Dimension: 65mm x 30mm x 11.6mm

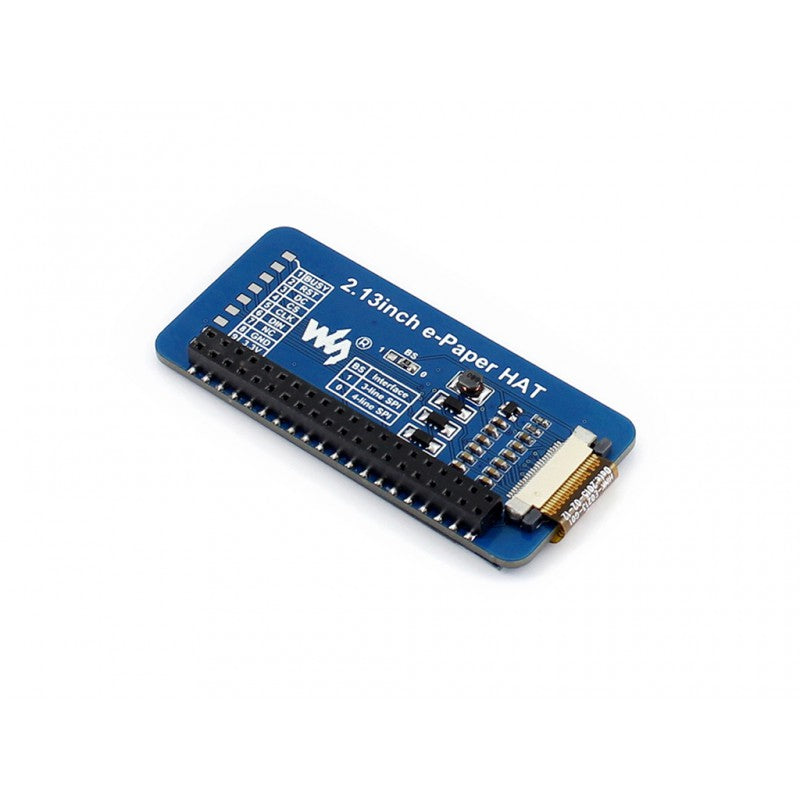

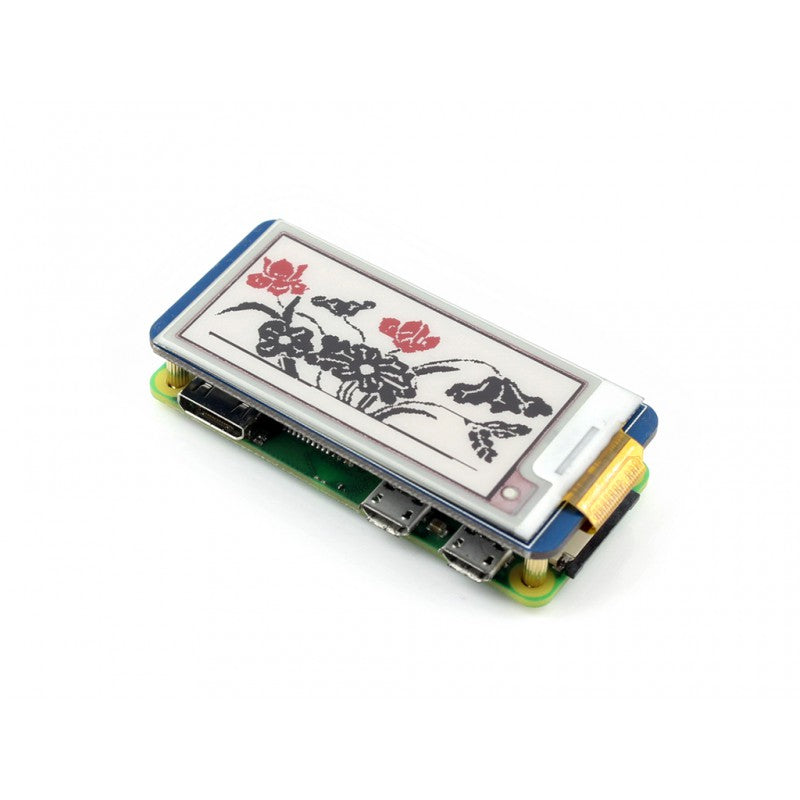

2.13inch e-Paper HAT (B) Features

• No backlight, keeps displaying last content for a long time even when power down

• Ultra low power consumption, basically power is only required for refreshing

• Compatible with Raspberry Pi 2B/3B/Zero/Zero W

• Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

• Onboard voltage translator, compatible with 3.3V/5V MCUs

• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

2.13inch e-Paper HAT (B) Specifications

• Operating voltage: 3.3V/5V

• Interface: 3-wire SPI, 4-wire SPI

• Outline dimension: 65mm × 30.2mm

• Display size: 23.71mm × 48.55mm

• Dot pitch: 0.229 × 0.228

• Resolution: 212 × 104

• Display color: red, black, white

• Grey level: 2

• Full refresh time: 15s

• Refresh power: 26.4mW(typ.)

• Standby power: <0.017mW

• Viewing angle: >170°
