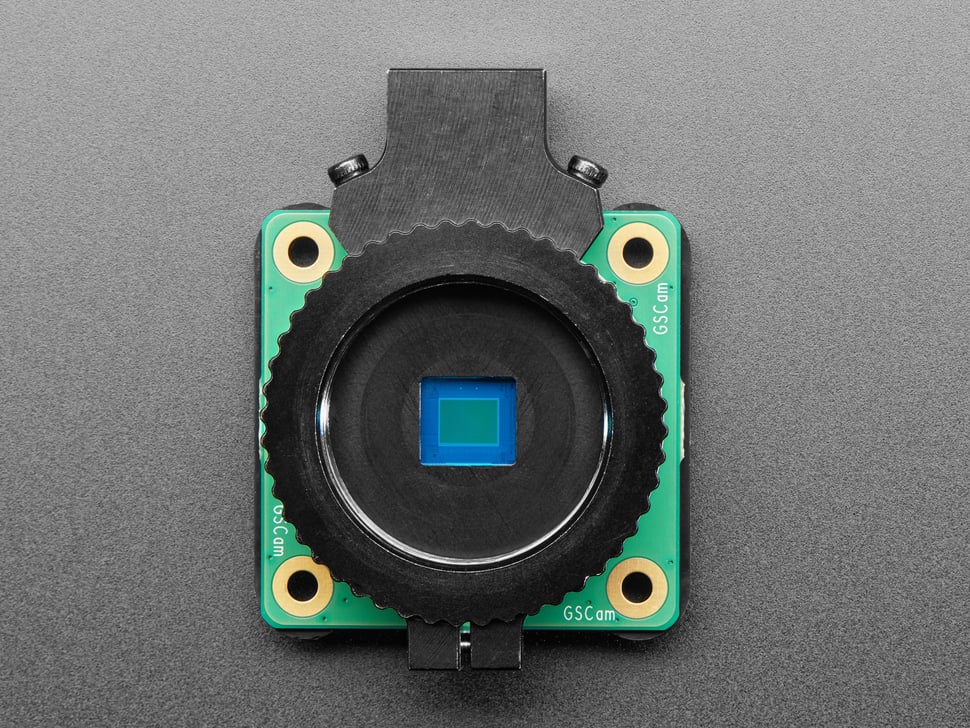

The Raspberry Pi Global Shutter Camera is a high-performance imaging solution designed to capture crisp, clear images even in challenging conditions. Unlike traditional rolling shutter cameras that can introduce motion blur or distortion, especially with fast-moving subjects, this camera uses a global shutter to capture the entire frame simultaneously. This feature is particularly valuable for applications that require precision and accuracy, such as robotics, industrial automation, and scientific research, where every detail counts.

With a resolution of 1456x1088 pixels, the Global Shutter Camera delivers sharp, high-quality images, ensuring that even the smallest details are preserved. The CS lens mount provides flexibility in lens choice, allowing users to select the most suitable lens for their specific needs. Whether you're capturing high-speed action or working in environments with rapidly changing lighting conditions, this camera maintains image integrity without the distortion artifacts commonly associated with rolling shutter systems.

This camera is perfect for those who need reliable and precise imaging capabilities for their projects. Its ability to handle fast motion and quickly varying lighting makes it ideal for use in sports analysis, security systems, and other demanding applications. By incorporating the Raspberry Pi Global Shutter Camera into your setup, you can achieve superior image quality and performance, enhancing the overall effectiveness of your Raspberry Pi projects.

Please note, the camera does not come with a lens. A lens is required! You can pick up a wide-angle or telephoto lens here.

Features:

• High Resolution: Offers a resolution of 1456x1088 pixels, providing sharp and detailed images, which is essential for applications requiring high image clarity.
• CS Lens Mount: Comes with a CS lens mount, allowing for compatibility with a wide range of lenses. This provides flexibility in choosing the right lens to suit specific project requirements.
• Excellent Performance in Varying Lighting: The global shutter technology helps the camera perform well in rapidly changing lighting conditions, ensuring consistent image quality even in challenging environments.
• Compact and Lightweight: Designed to be compact and lightweight, making it suitable for integration into various projects, including robotics, drones, and other mobile applications.
• Durable and Reliable: Built to handle demanding tasks, the camera is suitable for applications that require robust performance over extended periods.

Specifications:

• Image Sensor: Sony IMX296LQR-C
• Resolution: 1456 x 1088 pixels
• Pixel Size: 3.45µm x 3.45µm
• Shutter Type: Global Shutter
• Frame Rate: Up to 120 fps
• Lens Mount: CS-mount
• Connection Interface: 22-pin CSI-2
• Optical Size: 1/2.9 inch
• IR Sensitivity: Standard
• Output: 8-bit and 10-bit raw Bayer
• Dimensions: 25mm x 24mm x 20mm (without lens)
• Compatibility: Raspberry Pi boards with CSI connector


Technical Details:

• Datasheet
