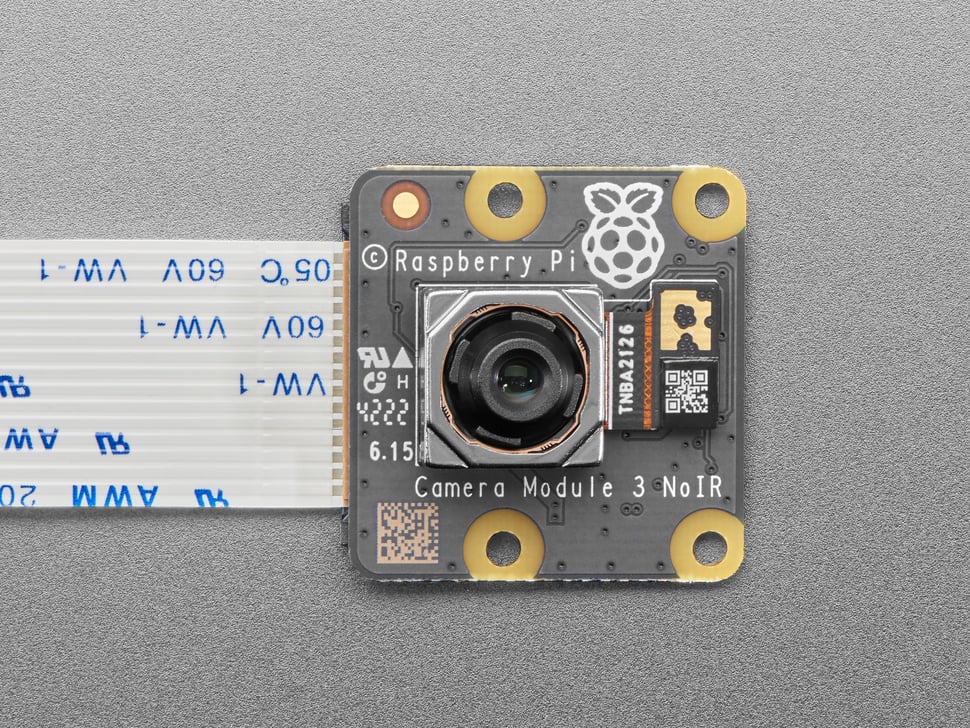

The Raspberry Pi Camera Module 3 NoIR features a 12-megapixel Sony IMX708 sensor, providing a 75-degree field of view. This compact camera is perfect for capturing high-resolution images and videos in both regular and low-light conditions, thanks to its infrared lens. The NoIR version excludes the infrared cut filter, making it ideal for night vision projects and low-light applications.
Supporting HDR mode with up to 3-megapixel output, the camera can capture full HD video and high-quality stills. It also features phase detection autofocus for fast, precise focusing across various lighting environments. The Camera Module 3 NoIR is fully supported by the libcamera library, ensuring seamless integration with Raspberry Pi for both novice and advanced users.

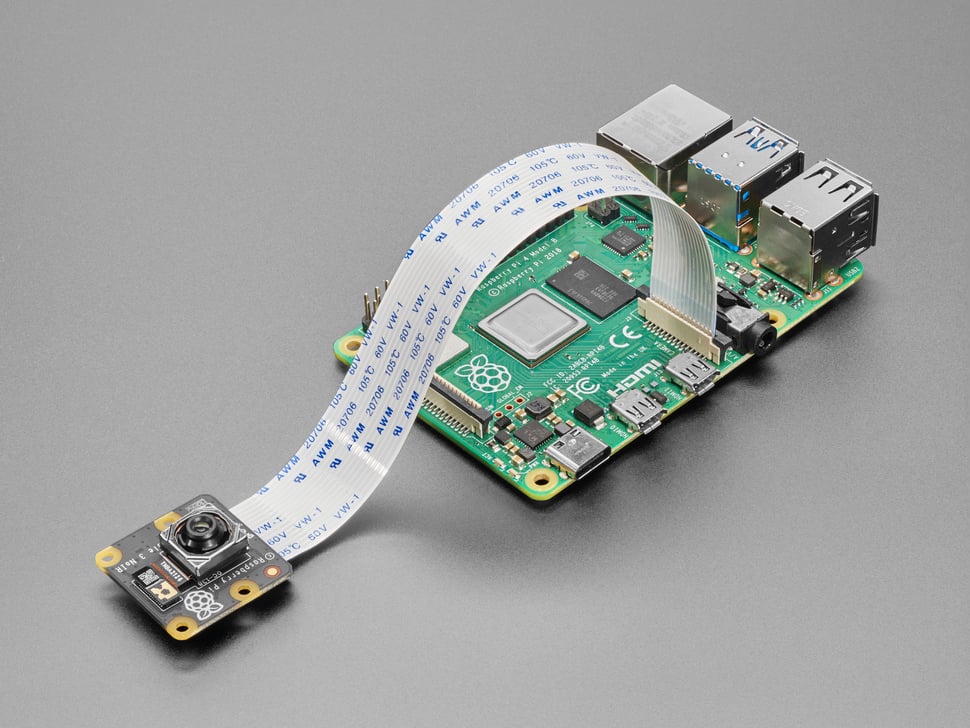

This module is compatible with all Raspberry Pi computers, maintaining the same PCB size and mounting holes as previous models. Its upgraded optics deliver sharper results without requiring additional lenses, making it an easy, out-of-the-box solution for infrared-enabled projects.

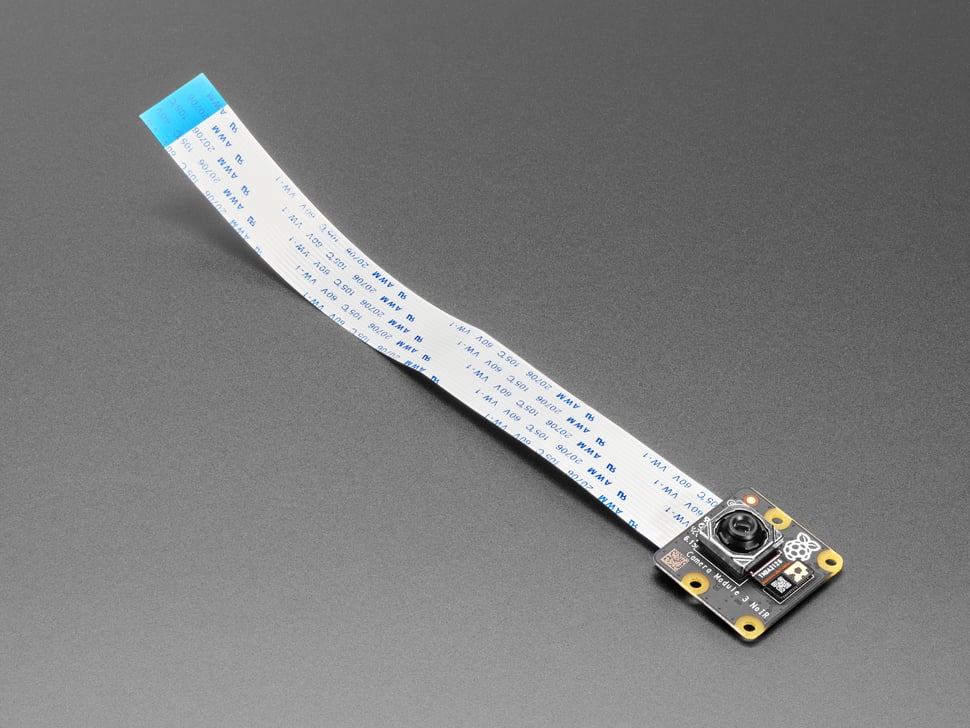

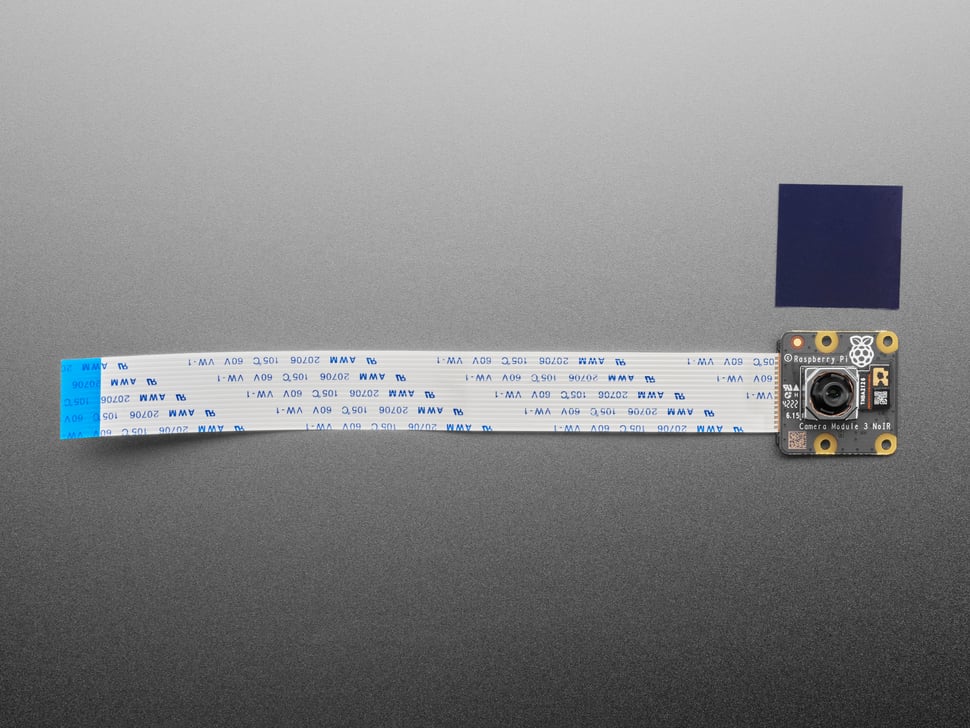

Comes with a 200mm long flexible cable for connecting to a Raspberry Pi computer, if it's too short/long we have a range of Raspberry Pi Camera Cables in various lengths, you can use here.
To use with a Pi Zero, you will need an adapter cable, which we stock here!
Features:
- Field of View: 75-degree lens, providing a balanced capture angle.
- Infrared Sensitivity: No infrared cut filter, allowing it to capture infrared light, making it perfect for low-light and night vision applications.
- Autofocus: Equipped with Phase Detection Autofocus (PDAF) for clear and precise focusing, even in darker conditions.
- Best Use: Night vision projects, security cameras, or any low-light application where infrared capture is needed.
Specifications:
- Sensor: 12MP Sony IMX708, 7.4mm diagonal, 1.4μm pixel size
- Resolution: 4608 × 2592 pixels (11.9MP)
- Field of View: 75° (Standard)
- Autofocus: Phase Detection Autofocus (PDAF)
- Output: RAW10, HDR mode (up to 3MP)
- Video Modes: 1080p50, 720p100, 480p120
- Features: No IR cut filter, 2D Dynamic Defect Pixel Correction, QBC Re-mosaic function
- Connection: CSI-2 output, 2-wire I2C control
- Dimensions: 25 × 24 × 11.5mm
Technical Details
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
