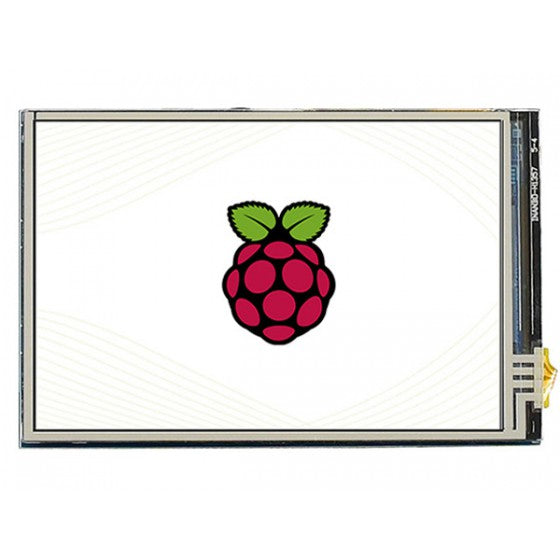

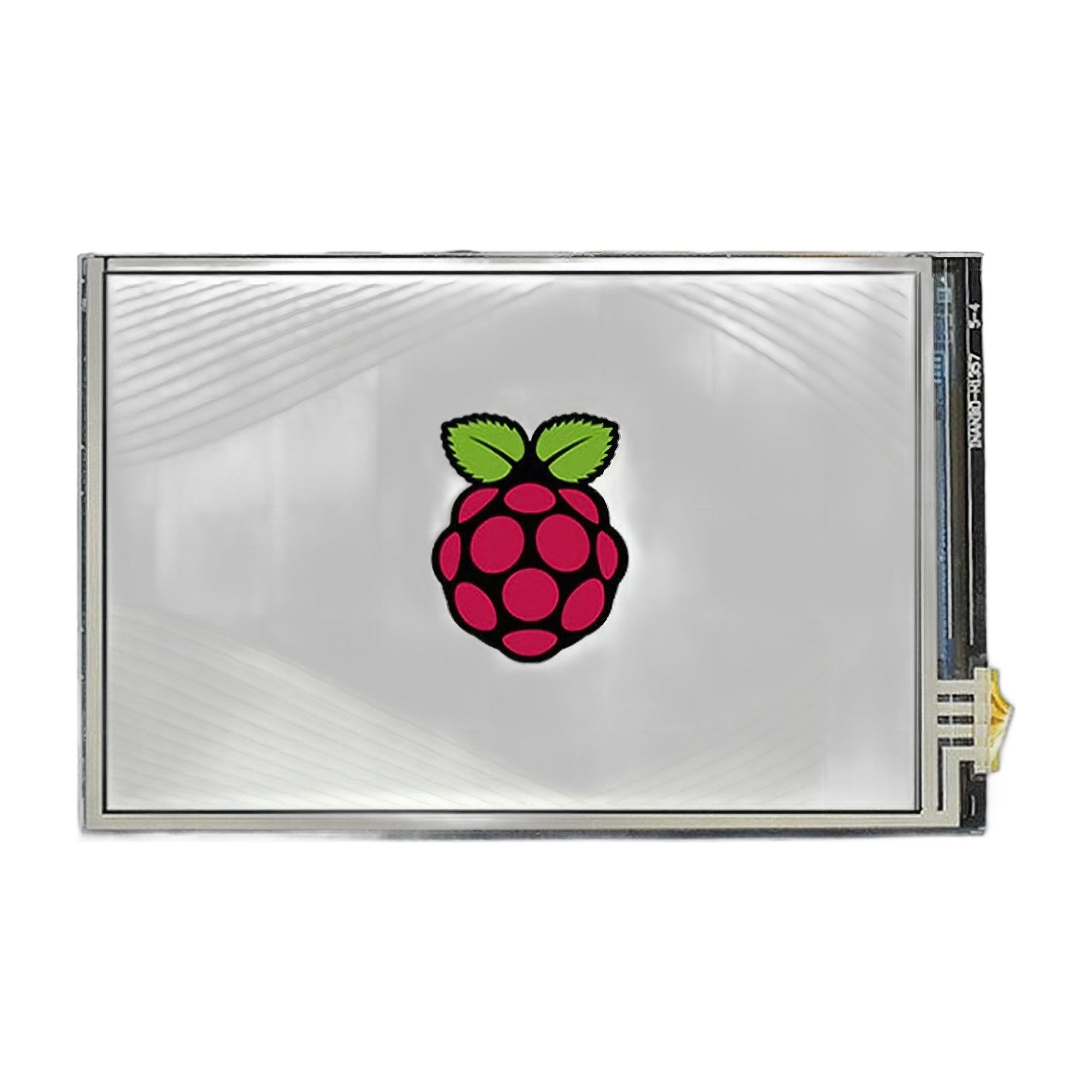

Compact 3.5-inch HDMI Touch Display for Portable Raspberry Pi Builds
The 3.5inch Resistive Touch Screen LCD is a small HDMI display made for Raspberry Pi, mini PCs, and compact embedded builds. It gives you a crisp 480×320 IPS panel in a space-saving format that works well for handheld tools, status screens, and portable control panels.
This model uses resistive touch over SPI, so it is a good fit when you want a simple touch interface in a compact footprint. It also includes OSD controls for brightness and contrast, plus a 3.5mm audio jack for HDMI audio output.
Important: Official Waveshare docs list Raspberry Pi OS, Ubuntu, Kali, and Retropie support on Raspberry Pi. When used with a Windows PC, it works as a display, but touch is not supported in the official product notes.
Why you'll love it
- Small footprint: Easy to fit into portable projects, custom enclosures, and bench tools
- IPS panel: Offers better color and viewing consistency than basic TFT displays
- HDMI video input: Simple hookup for Raspberry Pi and other HDMI-capable devices
- Resistive touch: Good for basic touch input and stylus use in utility builds
- 3.5mm audio out: Lets you pass HDMI audio to headphones or speakers
- Driver support for Raspberry Pi: Works with Raspberry Pi OS, Ubuntu, Kali, and Retropie
Good fit for
This display works well for Small dashboards and handheld use. It is a practical choice if you want an official Waveshare HDMI screen with clear setup docs and strong compatibility with Raspberry Pi workflows.
Waveshare display lineup comparison
| Model | Size | Resolution | Touch | Panel | Interface | Case | Best for |
|---|---|---|---|---|---|---|---|
| 3.5inch HDMI LCD ← this model | 3.5" | 480×320 | Resistive (SPI) | IPS | HDMI | No | Small dashboards and handheld use |
| 5inch HDMI LCD | 5" | 800×480 | Resistive (SPI) | TFT | HDMI | No | Budget Raspberry Pi touch builds |
| 7inch HDMI LCD | 7" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Mid-size dashboards and HMIs |
| 10.1inch HDMI LCD | 10.1" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Large HMIs and workbench displays |
| 7inch HDMI LCD (H) with Case | 7" | 1024×600 | Capacitive, 5-point (USB) | IPS | HDMI / VGA | Yes | Ready-to-deploy kiosk and desktop use |
| 10.1inch HDMI LCD (B) with Case | 10.1" | 1280×800 | Capacitive, 10-point (USB) | IPS | HDMI | Yes | Higher-res touch dashboards |
| 13.3inch HDMI LCD (H) (with case) V2 | 13.3" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Premium Full HD touch displays |
| 15.6inch HDMI LCD (H) with Case | 15.6" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Large premium touch screens |
| 11.9inch HDMI LCD | 11.9" | 320×1480 | Capacitive, 5-point (USB) | IPS | HDMI | No | Portrait dashboards and side screens |
Technical specifications
| Screen Size | 3.5" |
|---|---|
| Resolution | 480×320 |
| Display Interface | HDMI |
| Display Panel | IPS |
| Viewing Angle | 160° |
| Touch Type | Resistive |
| Touch Interface | SPI |
| Audio Output | 3.5mm jack |
| OSD Menu | Brightness / Contrast |
| Best Fit | Compact Raspberry Pi dashboards, portable tools, handheld builds |
| System Support | Raspberry Pi OS / Ubuntu / Kali / Retropie on Raspberry Pi; Windows 11/10/8.1/8/7 as a display only |
Official Waveshare resources
Official product page
Official wiki / setup guide
Frequently Asked Questions
Does this work with Raspberry Pi?
Yes. Official Waveshare resources list Raspberry Pi support for this model.
How is touch connected?
This model uses Resistive (SPI).
Can I use it with a PC?
Yes. Official Waveshare documentation lists PC support for this model. Touch behavior can vary by operating system, so check the official wiki for setup notes.
Does it include a case?
No. This model is sold without a case.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
