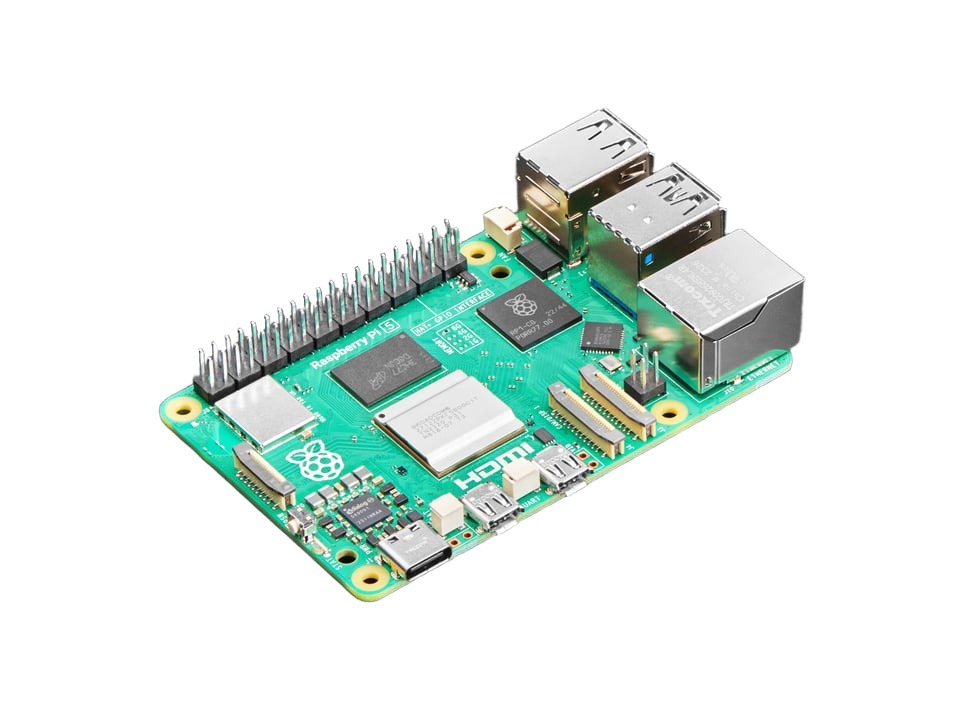

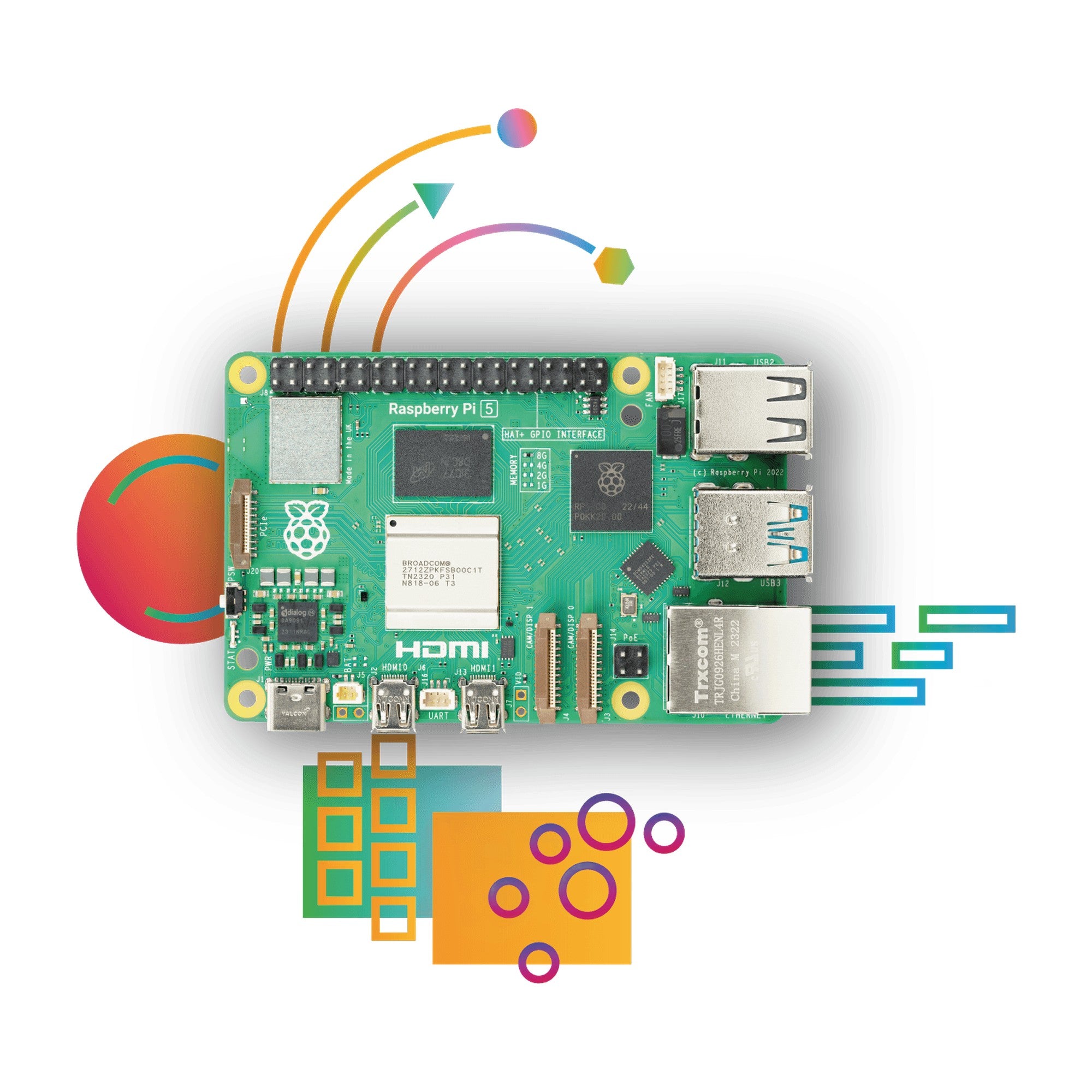

Raspberry Pi 5 — Small Board, Big Performance
The most powerful Raspberry Pi yet: a quad-core ARM Cortex-A76 CPU, new RP1 I/O controller, and VideoCore VII graphics drive dual 4Kp60 displays—perfect for desktop-class projects, dashboards, robotics, and edge AI.
GB LPDDR4X • Dual 4K micro-HDMI • PCIe • USB 3.0 • GbE • Wi-Fi AC/BT
Why you’ll love it
- Serious speed: Cortex-A76 up to ~2.4 GHz + faster RAM
- Modern I/O: PCIe 2.0 (via FFC), 2× USB 3.0, GbE, RTC header
- Pro display: dual micro-HDMI up to 4Kp60
- Maker-ready: 40-pin GPIO with the classic Pi layout
What you can build
- Home/office dashboards & kiosks with dual displays
- Robotics & control with HATs and sensors
- Media centers, retro gaming, or lightweight desktop
- High-speed storage nodes via PCIe/NVMe adapters
Technical specifications
| Processor | Broadcom BCM2712, quad-core 64-bit ARM Cortex-A76, up to ~2.4 GHz |
|---|---|
| GPU | VideoCore VII; dual 4Kp60 decode; OpenGL ES support |
| Memory | 8GB LPDDR4X-4267 (on-package) |
| Display | 2 × micro-HDMI (up to 4Kp60 each) |
| Storage | microSD (UHS-I SDR104); PCIe 2.0 ×1 via FFC for NVMe adapters |
| Connectivity | Gigabit Ethernet (PoE+ via HAT), 2.4/5GHz Wi-Fi 802.11ac, Bluetooth (with BLE) |
| USB | 2 × USB 3.0, 2 × USB 2.0 (Type-A) |
| Camera/Display FFC | 2 × MIPI connectors (camera/display, flexible routing) |
| GPIO | 40-pin header: 3.3V logic, I²C, SPI, UART, PWM, etc. (Pi-compatible layout) |
| Power | USB-C 5V; official recommendation 5V 5A (27W) PSU for heavy loads |
| Other | Power button, real-time clock (RTC) battery header, PCIe FFC, debug pads |
| Dimensions | Approx. 85 × 56 mm (classic credit-card footprint) |
Specs summarized for quick selection; minor variations may occur by batch/revision. Updated November 2025.
Pinout & power notes
- GPIO: 3.3V logic only. Use level shifters with 5V accessories.
- Power budget: For USB drives, HATs, and dual 4K displays, use the official 27W supply to avoid undervoltage.
- Cooling: Active cooling (fan/active cooler) is recommended for sustained performance.
- Storage: For fastest I/O, use NVMe via the PCIe FFC with a compatible adapter/enclosure.
What’s in the box
- Raspberry Pi 5 Board (8GB)
- Power supply, case, storage, cooler, and cables sold separately.
FAQ
Does it work with older HATs and GPIO add-ons?
Yes—the 40-pin header keeps the classic Raspberry Pi layout. Check power/cooling needs for demanding HATs.
Can I boot from NVMe?
Yes—use the PCIe FFC and a compatible NVMe adapter/enclosure. You can also boot from USB SSDs or microSD.
What PSU should I use?
The official 27W USB-C PSU (5V 5A) is recommended, especially with USB peripherals and dual displays.
Do you ship nationwide?
Yes—fast shipping anywhere in the Philippines. Same-day processing on in-stock orders before cutoff.
Explore related: Cases & Cooling • Power Supplies • microSD & NVMe • Cables & Adapters • Cameras • Displays • HATs
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
