Rain Steam Water Sensor Gravity

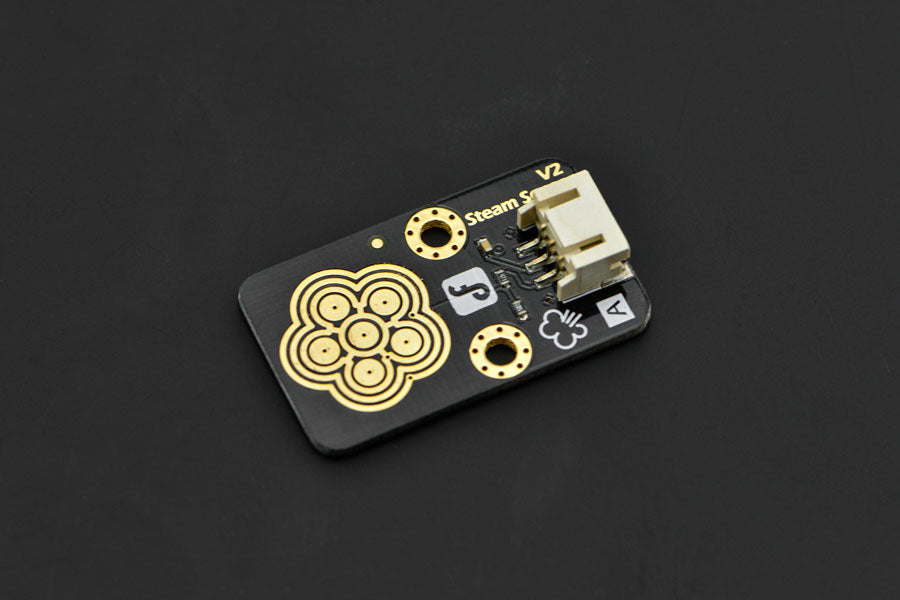

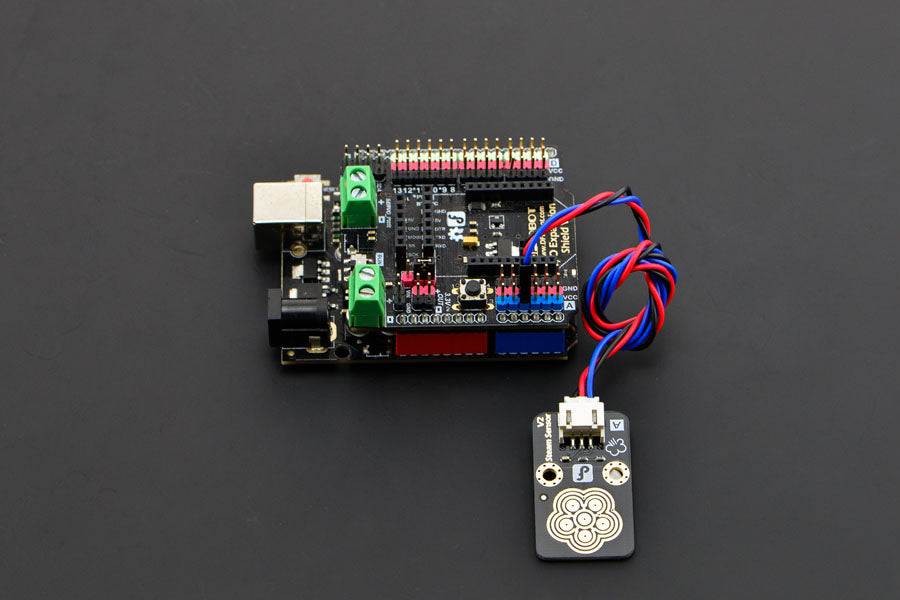

This is a steam(water)sensor from DFRobot. This steam sensor can be connected to the Arduino IO Expansion shield directly. The output voltage will increase when the humidity of the sensor surface goes up.

Notice:The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.

Warning: The connector is not waterproof, please be careful not to put the connector directly in water.

APPLICATIONS

  • Simple rain detector
  • Cheap steam level switch
  • Touch sensor based on humidity

SPECIFICATION

  • Power supply: 3.3v or 5v
  • Output voltage signal: 0~4.5v(@5v) or 0~3.0v(@3.3v)

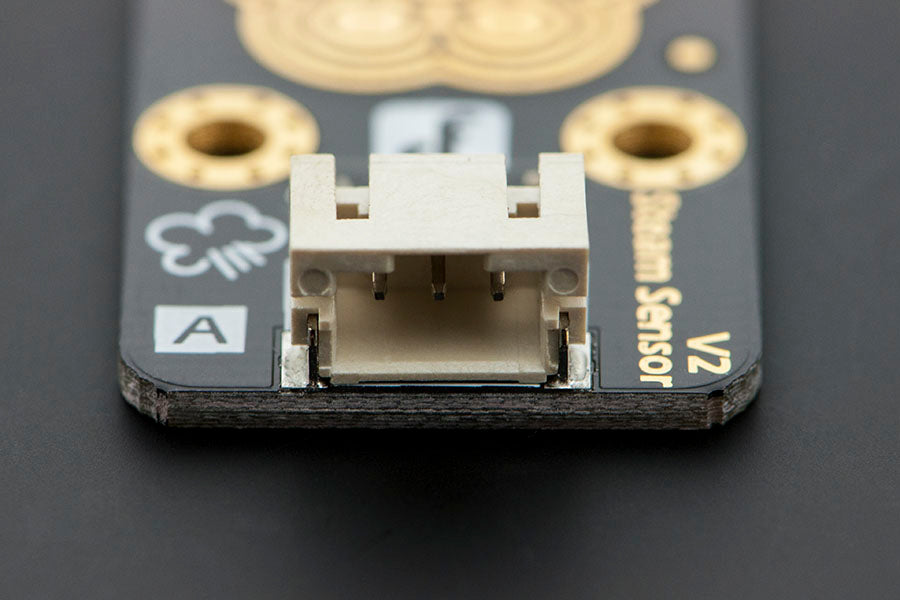

  • Pin definition:
  • Analog output(Blue wire)
  • GND(Black wire)
  • Power(Red wire)
  • Size: 30x20x6mm (0.18x0.79x0.24")

DOCUMENTS

  • Wiki Doc

SHIPPING LIST

  • Steam sensor    x1
  • Analog Sensor Cable    x1

Circuit Rocks

Rain Steam Water Sensor Gravity

Rain Steam Water Sensor Gravity

Low stock: 3 left

Product Code

SKU:SEN0121

Regular price ₱85.00 PHP
Regular price Sale price ₱85.00 PHP
Sale Sold out
Shipping calculated at checkout.
View full details
