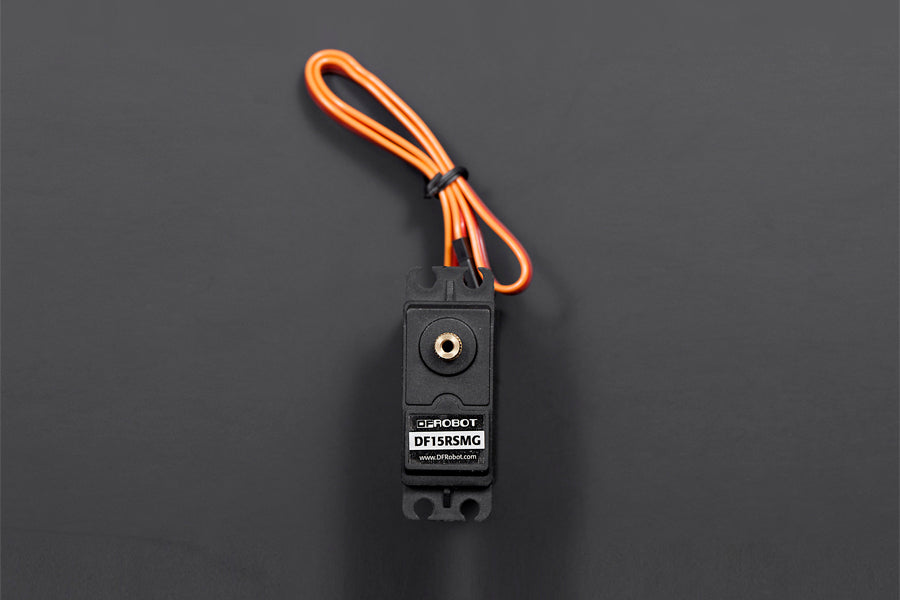

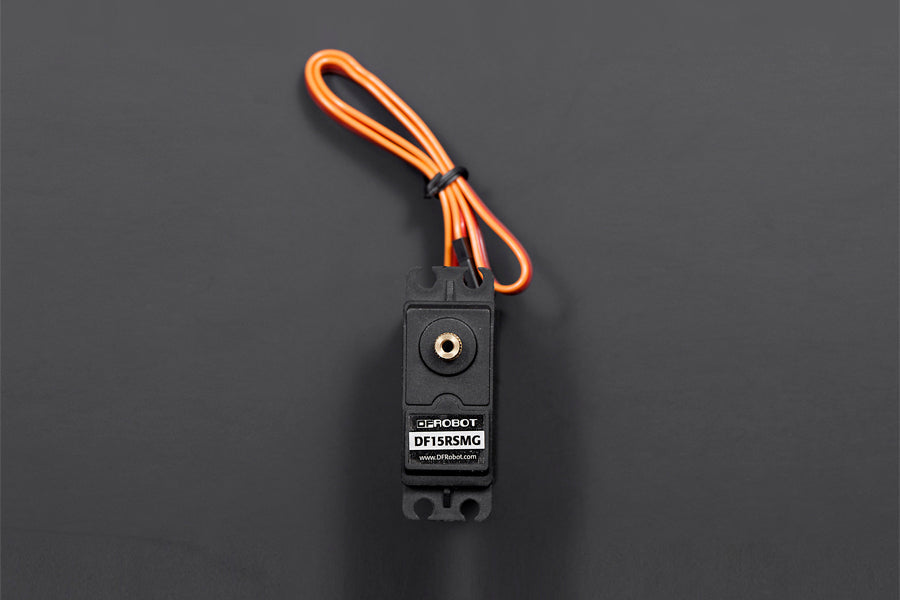

Servo DF15RSMG 360 Degree Motor 20kg

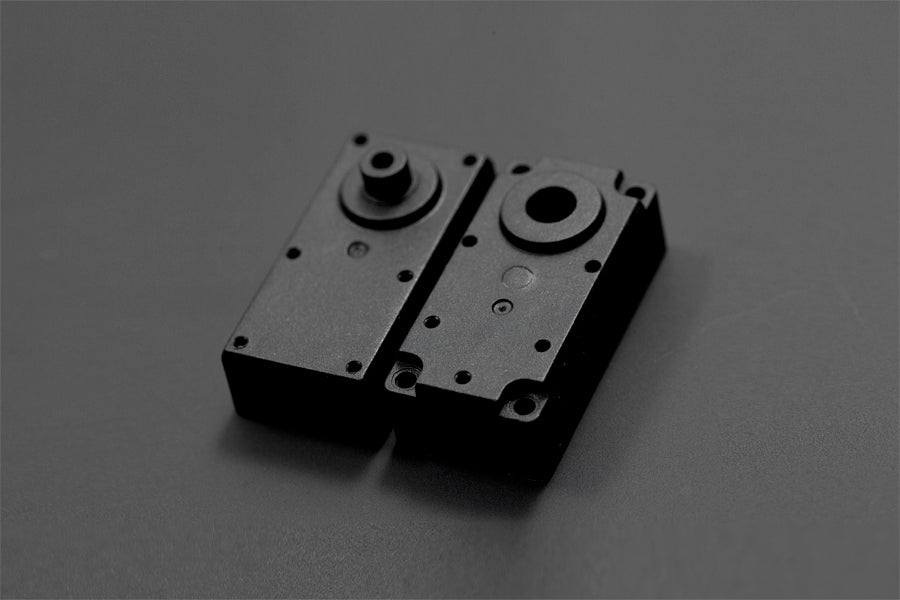

This is the most powerful standard servo sized motor from DFRobot so far. The DF15RSMG  equips with two pairs of the servo shells. One is a standard shell with four M4 mounting holes. And the other one includes a shell with double bearing which is specially designed for the application of the robot arm or the joints.The shells of this kit are thickened to make it stable enough for motion system.

The torque of this motor is about 19kg.cm at 7.4v power supply.Using the Arduino servo library, you could drive this servo motor easily.To reduce the consumption of your micro controller, this servo has a lock function for the pulse detection. So driving it to a target position just requires one PPM controlling signal.

Cable definition

• Brown - GND

• Red  - VCC

• Orange  - Signal(PPM input wire)

SPECIFICATION

Mechanical specification

• Rotation angle range: 360°

• No-load speed:60°/0.16s @7.4v

• Stall torque:19.3kg.cm（7.4v）

• Dynamic torque:15.1kg.cm（7.4v）

• Gear:steel,copper mixed gear

• Assembly method:fastening with double layer 4 screws

• Equip 2 pairs of shells,2 metal servo horns and 2 servo support

• Size: 40x40x20mm (1.57x1.57x0.79")


• Working Voltage: 5-7.4v

• Stall current:3A(@8.5V - Limit test)

• PPM Voltage:3V-5V

• PPM Resolution:2us

• PWM driver frequency:4KHZ

• Range of PPM positive pulse width:400us-2550us

• Minimum value of PPM negative pulse width:400us

DOCUMENTS

• Servo library

• Standard mode dimension

• Robot arm mode dimension


SHIPPING LIST

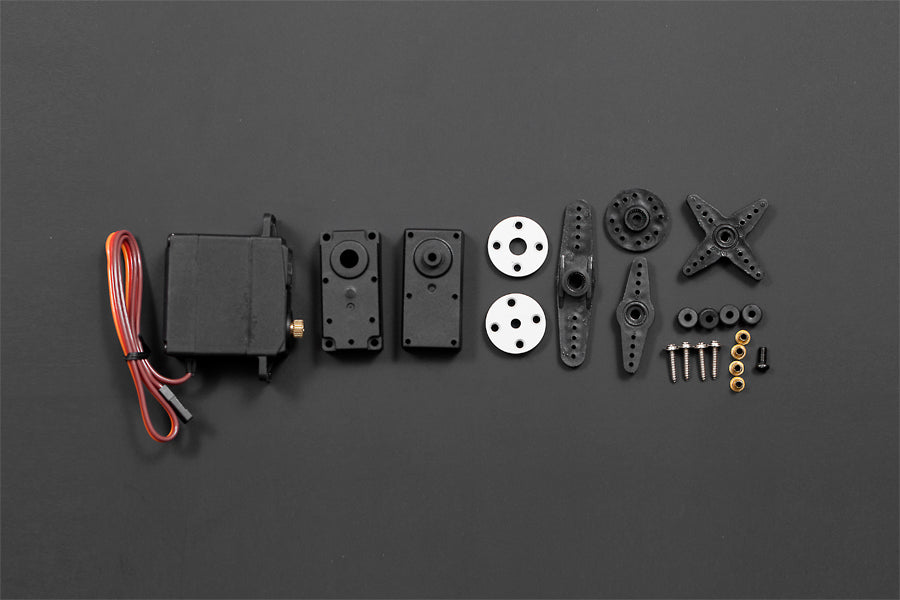

• DF15RSMG Servo x1

• Servo Shell x2

• Fitting package x1
