Teensy 4.1 Development Board

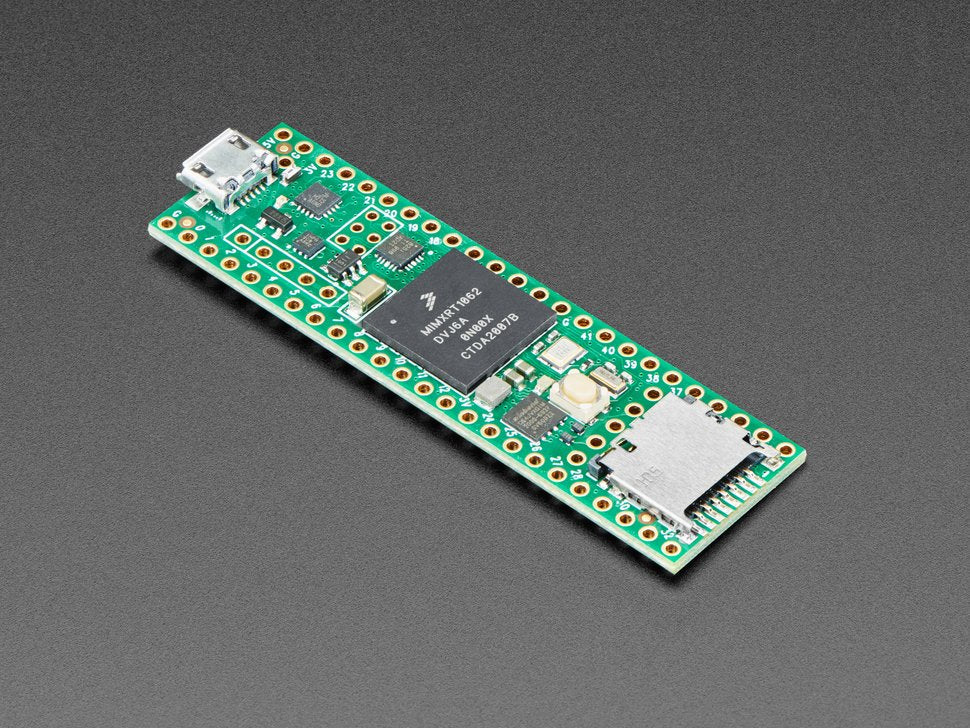

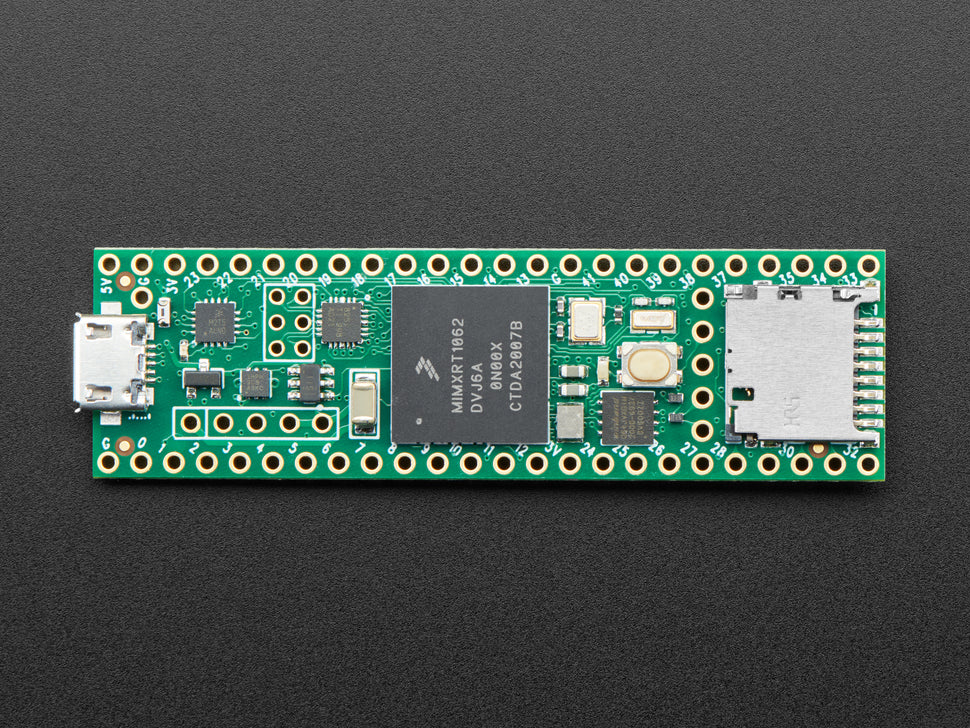

The Teensy 4.1, like the 4.0, also features an ARM Cortex-M7 processor at 600 MHz, with an NXP iMXRT1062 chip, the fastest microcontroller available today - ten times faster than the Teensy 3.2! The NXP iMXRT1062 is a 'cross-over' processor, which has the functionality of a microcontroller, at the speeds of a microcomputer. It's perfect for when you need tons of flash, RAM and, to crunch lots of data, or when you need two full-speed USB ports.

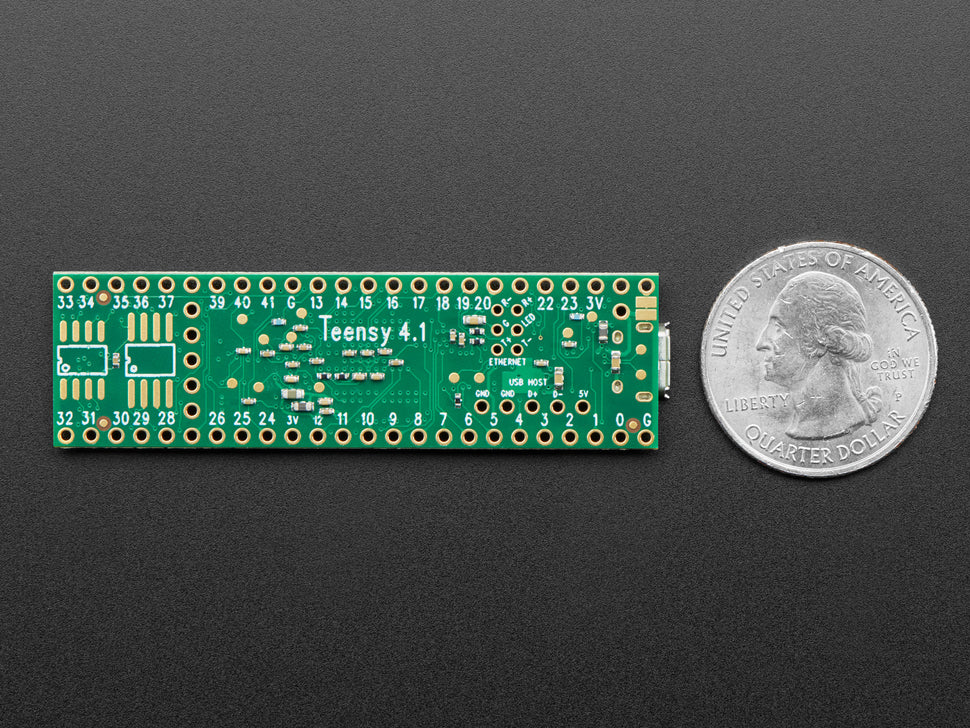

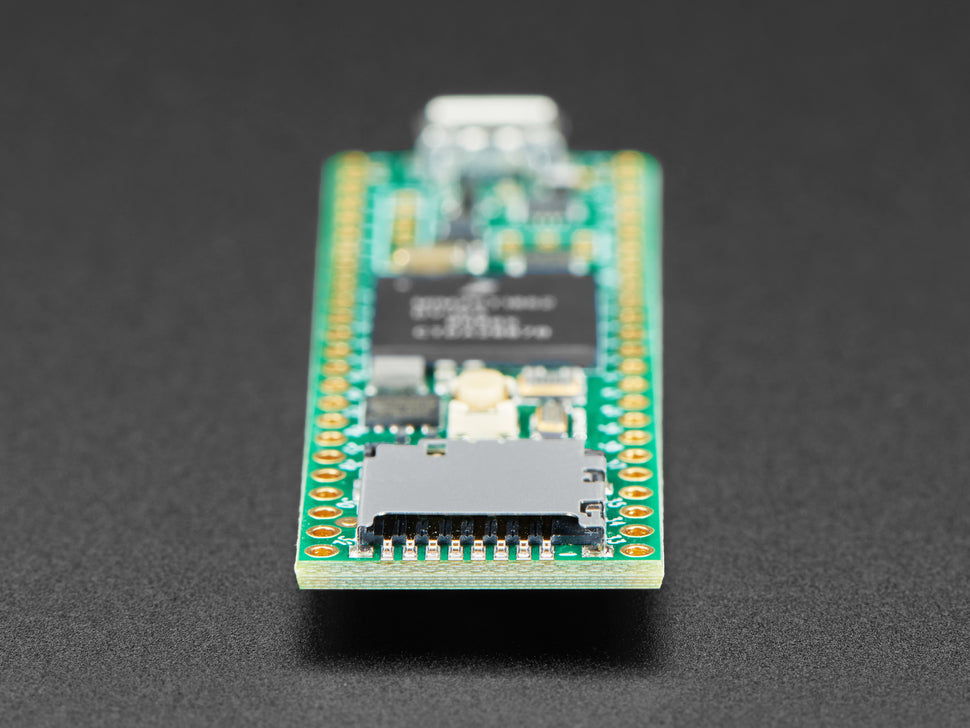

Teensy 4.1 comes with four times larger flash memory than the 4.0, and two new locations to optionally add more memory. The Teensy 4.1 has the same form factor as the Teensy 3.6 (2.4" by 0.7"), but provides a ton more I/O capability, including a 100MB Ethernet PHY, SD card socket (SDIO connected), and USB host port. Please check out the Teensy 4.0 page for common specifications and features.

Specifications:

• ARM Cortex-M7 at 600 MHz
• 1024K RAM (512K is tightly coupled)
• 2048K Flash (64K reserved for recovery & EEPROM emulation)
• 2 USB ports, both 480 MBit/sec
• 3 CAN Bus (1 with CAN FD)
• 2 I2S Digital Audio
• 1 S/PDIF Digital Audio
• 1 SDIO (4 bit) native SD
• 3 SPI, all with 16 words FIFO
• 3 I2C, all with 4 byte FIFO
• 7 Serial, all with 4 byte FIFO
• 32 general-purpose DMA channels
• 31 PWM pins
• 40 digital pins, all interrupt capable
• 14 analog pins, 2 ADCs on chip
• Cryptographic Acceleration
• Random Number Generator
• RTC for date/time
• Programmable FlexIO
• Pixel Processing Pipeline
• Peripheral cross triggering
• Power On/Off management

TECHNICAL DETAILS

• Overview,Datasheet anda Schematic Diagram
• Compare all Teensy 4.1 to all Models
