W1209 Temperature Control Thermostat Switch

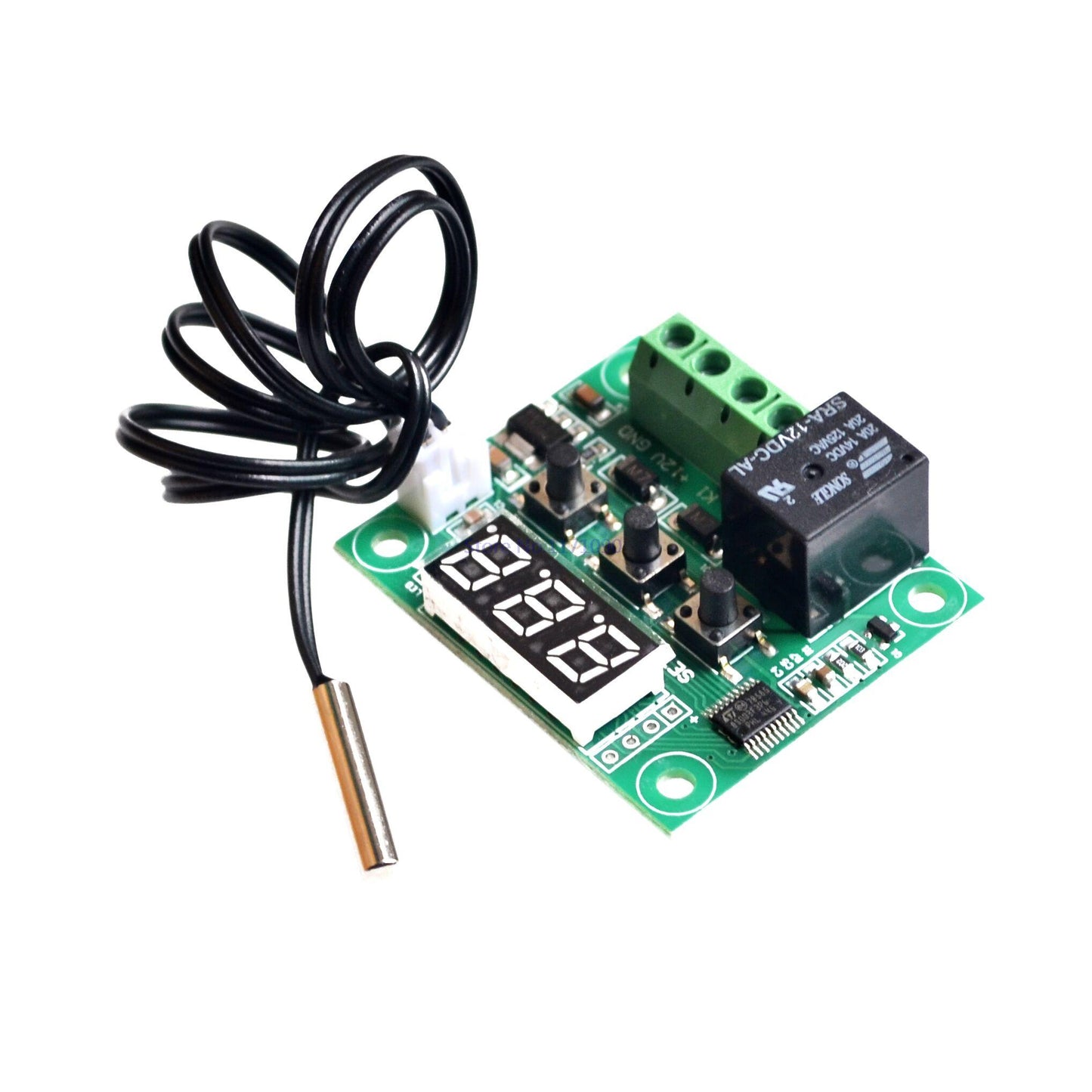

W1209 Temperature Control Thermostat Switch -  You won't need a microcontroller for this one as this is a complete temperature-controlled switch. It has a temperature sensor, as well as a relay that can control your electronics. This module could control electricity-powered components with a voltage range of 14VDC and 125VAC with a current of 20A for both AC and DC voltages. 12V DC power-up this module. There is a 3-bit 7-segment display that indicates the temperature setting.

There are three buttons embedded into this module that has unique functions, with the first button that has the "SET" function. The second and the last button is for calibrating your thermostat with its function as "+" and "-" to increase and decrease the temperature you want to set. You may use it in powering up small fans as well as lighting up a bulb.

Typical Terms/Specifications of Temperature switches:

  • Adjustable Range: The range of temperatures between the upper and lower limits that can be set to cause or prevent the temperature switch from acting. It is commonly used to describe rising temperatures.
  • Set Point: The specific temperature above or below which the temperature switch is set to actuate or de-actuate in response to changes in temperature. It can be expressed as an increase in temperature or a decrease in temperature, but it must be within the adjustable range.
  • Dead band: the temperature difference between the rising set point and falling set point. Usually, it can be fixed (not adjustable).
  • Repeatability: A temperature profile is created by a temperature switch's capacity to function at a specified point repeatedly while approaching it from a starting point in the same direction and returning to it after each cycle. As a percentage of full scale, the proximity of the measured set point values is typically stated (maximum adjustable range temperature).
  • SPDT Switch Element: Three connections are included on a single-pole, double-throw (SPDT) switching element: The switch can be electrically linked to the circuit in either the NO or NC state thanks to the C-Common, NO-Normally Open, and NC-Normally Closed components.
  • DPDT Switch Element: Two synchronized SPDT switching elements make up a DPDT, which actuates at higher set points and de-actuates at lower set points. The ability to switch two independent circuits, such as an AC and a DC, is provided by discrete SPDT switching elements.
  • Over range: For temperature switches that are filled with fluid, the over-range temperature is the highest temperature to which the sensing bulb may be continually exposed without causing a significant change in the set point, leakage, or degradation of the fill fluid. The temperature switch could become permanently damaged and inoperable if the temperature exceeds the range.
  • Maximum Process Pressure: The highest process temperature to which a thermo-well-protected temperature measuring bulb should be exposed.

People Also Ask:

Q1: A temperature switch is what?

Ans: Switch contacts are opened and closed using temperature switches, also known as thermal switches. Depending on the input temperature, the switching status of the temperature switches changes. To safeguard against overheating or overcooling, this function is employed. In essence, the thermal switches serve to limit the temperature of machinery and equipment and to monitor their temperature.

Q2: Which temperature switches are available?

Ans: Mechanical and electronic switches are typically distinguished from one another. Different switch models, such as bimetal temperature switches and gas-actuated temperature switches, have different mechanical temperature switches. A temperature switch made of electronic components should be utilized when high accuracy is required.

Here, the user can set several switch points and alter the limit value on their own. On the other hand, bimetal temperature switches are small and reasonably priced but work with low accuracy. The gas-actuated temperature switch is another switch type that is employed, particularly in safety-critical applications.

Q3: What distinguishes a temperature controller from a temperature switch?

Ans: Using a temperature probe, a temperature controller may ascertain the real temperature and compare it to the set point. The actuator is used to change the intended set point. Thus, the display, control, and monitoring of temperatures fall under the purview of the temperature controller. On the other hand, temperature switches are utilized to open and close circuits because they cause a switching operation based on the temperature.

Q4: How do I choose a temperature or process controller?

Ans: The controller is a component of the overall control system, hence it is important to consider the system as a whole while choosing the right controller. When choosing a controller, the following factors should be taken into account:

1. The temperature range and type of input sensor (thermocouple, RTD).

2. The kind of output needed (electromechanical relay, SSR, analog output).

3. An on/off, proportional, or PID control scheme is required.

4. The quantity and kind of outputs (heat, cool, alarm, limit).

Q5: What Kinds of Process or Temperature Controllers Are There, and How Do They Operate?

Ans: On-off, proportional, and PID process controllers are the three fundamental types. The operator will be able to employ one type or another to control the process depending on the system that has to be controlled.

1. A temperature control device

The most basic type of control device is an on-off temperature controller. There is no intermediate state in the device's output; it is either on or off. Only when the temperature exceeds the set point will an on-off controller switch the output. When the temperature is below the set point, the output for heating is on, and when it is above the set point, it is off.

2. Proportional Control

On-off control cycling is intended to be eliminated via proportional controls. As the temperature approaches the set point, a proportional controller reduces the average power provided to the heater. This has the effect of slowing down the heater, allowing it to maintain a constant temperature and avoid overshooting the set point.

3. PID Management

PID, or proportional with integral and derivative control, is offered by the third controller type. This controller uses proportional control together with two extra modifications to enable the device to automatically account for system changes.
