In a variety of bridge circuits, due to vibration, shock and temperature and humidity and other environmental factors, the potentiometer position and parameters will always change, so our common potentiometer always need to constantly adjust, these to use Brought a lot of inconvenient place.

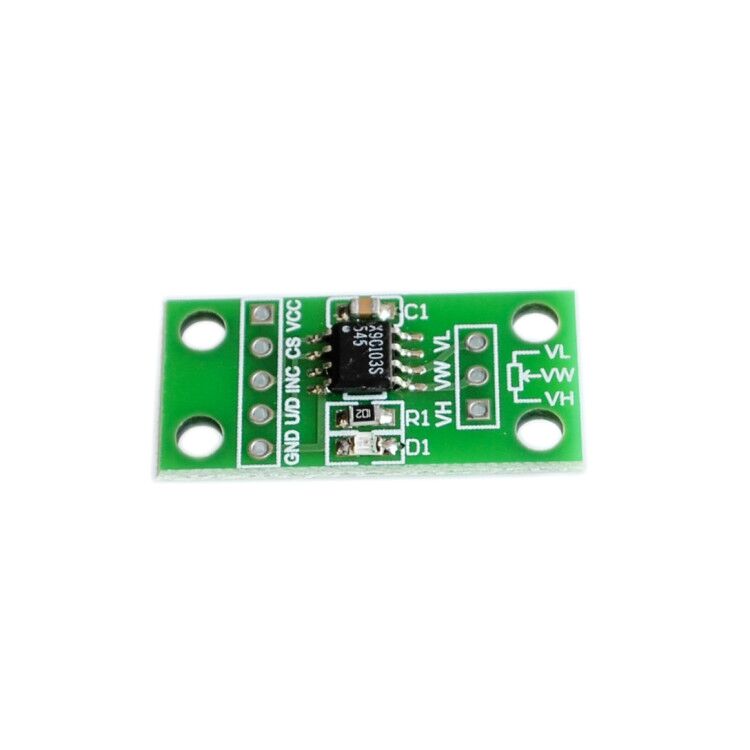

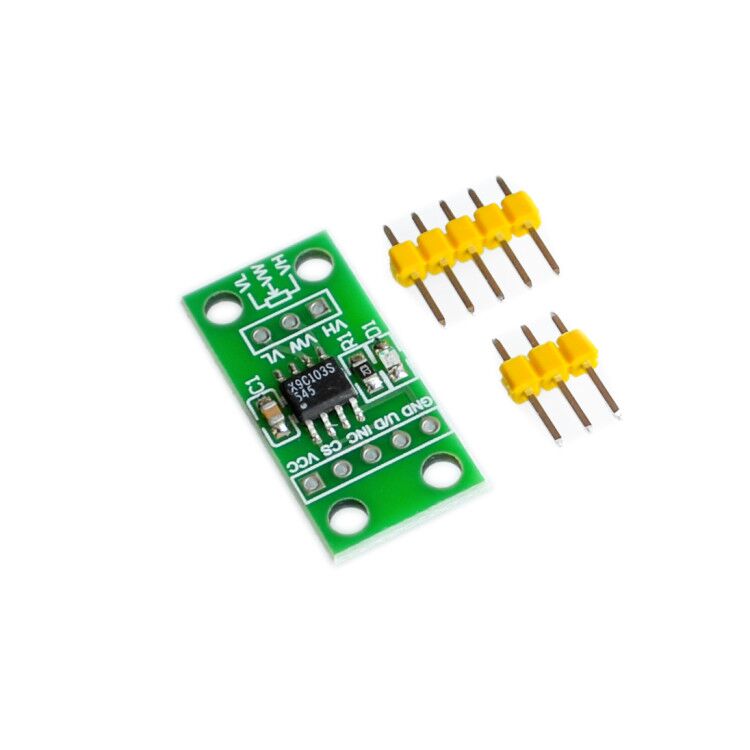

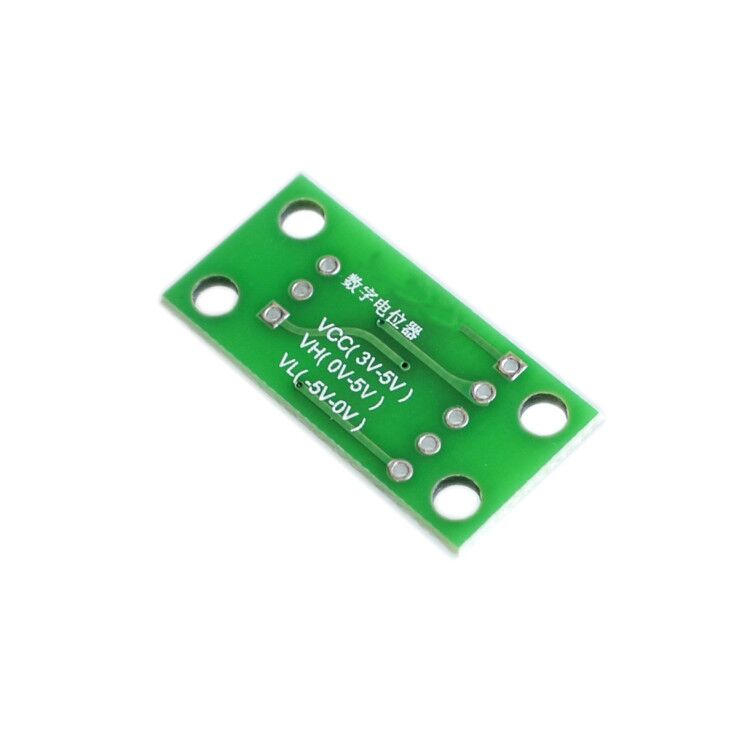

So we designed this product which not only eliminates the need for constant adjustment, but also improves the accuracy of the entire system. It uses the potentiometer is X9C103S - a 100-order digital potentiometer, the resistance range from 40R to 100K, in its internal contains 99 resistance array, a temperature compensation function, and resistance resolution up to 1%.
FEATURES:
- Temperature compensation
- Digital and Programmable
- High resistance resolution
- No manual adjustment
SPECIFICATIONS:
- Operating voltage (V): 5V
- Total resistance (kΩ): 100
- Terminal voltage (V): -5V ~ 5V
- Resistance increase mode: linear
- Interface: crowtail
- Operating current (mA): 3
- Temperature (℃): -40 ~ 85
- Resistance resolution: 1%
- Resistance range: 40R-100K
- Operating voltage (V): 5V
- Total resistance (kΩ): 100
- Terminal voltage (V): -5V ~ 5V
- Resistance increase mode: linear
- Interface: crowtail
- Operating current (mA): 3
- Temperature (℃): -40 ~ 85
- Resistance resolution: 1%
- Resistance range: 40R-100K
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
