Stable Pololu 5V Power for Embedded Builds

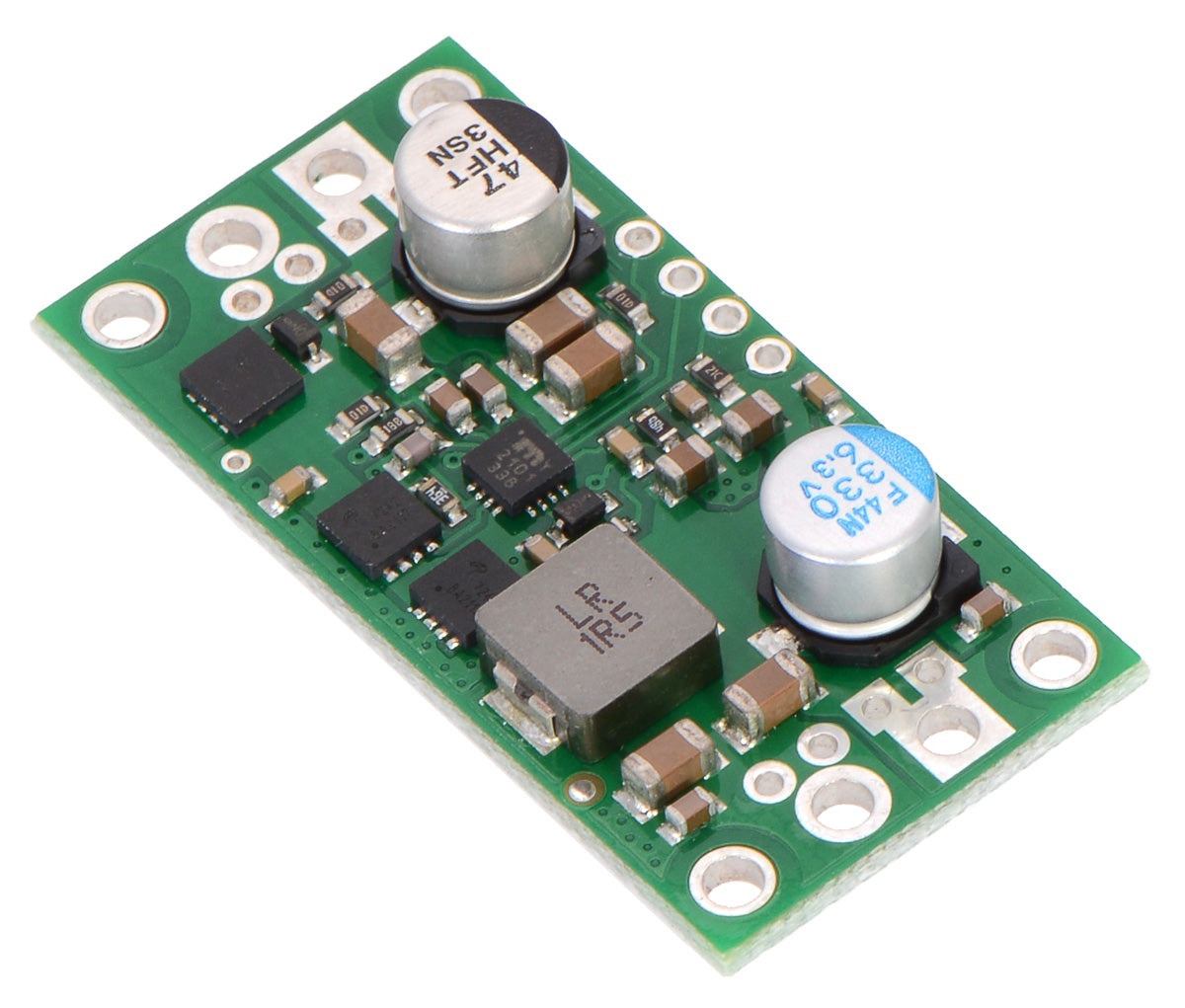

The Pololu 5V, 9A Step-Down Voltage Regulator D24V90F5 is a compact switching regulator for projects that need a lower and more stable DC rail from a higher input source.
It is a strong fit for robots, control boxes, battery-powered builds, and embedded systems that need efficient power conversion with less heat than a linear regulator.
Important: Choose a regulator based on your full input-voltage range, startup current, thermal limits, and required headroom. Real output current depends on input voltage, airflow, and temperature.
Why you'll love it
- High efficiency: typically 80–95%; switching frequency adjusts at light loads to help maintain efficiency
- System-friendly signals: PG (Power Good) open-drain output indicates when the regulator can’t maintain its set output voltage
- Low-power control: pull ENABLE low to reduce quiescent current to ~10–20 µA per volt on VIN (sleep)
- Protection features: reverse-voltage protection, over-current/short-circuit protection, thermal shutdown (~160°C), soft-start, and…
- Compact + mountable: 1.6″ × 0.8″ × 0.3″ (40.6 × 20.3 × 7.6 mm) with four mounting holes for #2 or M2 screws
- Great for 12V/24V systems that need a strong 5V rail
What you can build
Great for powering 5V or 12V rails in robots, controllers, sensor hubs, SBC projects, vehicle electronics, and custom battery systems.
Compare regulator options
| Model | Topology | Output | Max current |
|---|---|---|---|
| D24V22F5 | Buck | 5 V | 2.5 A |
| D36V28F5 | Buck | 5 V | 3.2 A |
| D30V30F5 | Buck | 5 V | 3.4 A |
| D24V50F5 | Buck | 5 V | 5 A |
| D42V55F5 | Buck | 5 V | 6 A |
| D24V90F5 | Buck | 5 V | 9 A |
| D24V150F5 | Buck | 5 V | 15 A |
Technical specifications
| Product | Pololu 5V, 9A Step-Down Voltage Regulator D24V90F5 |
|---|---|
| Brand | Pololu |
| Model | D24V90F5 |
| Category | DC-DC Step-Down Regulator |
| Topology | Step-Down (Buck) |
| Output Voltage | 5 V |
| Max Current | 9 A |
| Operating Voltage | 5-38 V |
| Support | Official Pololu product search and support resources linked below |
Official resources
Find this product on Pololu | Pololu support and resources
What’s in the box
1 × Pololu 5V, 9A Step-Down Voltage Regulator D24V90F5
Frequently Asked Questions
Can I power a microcontroller with this?
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Will it run cool at full load?
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
Is this better than a linear regulator?
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
