Stable Pololu 5V Power for Embedded Builds

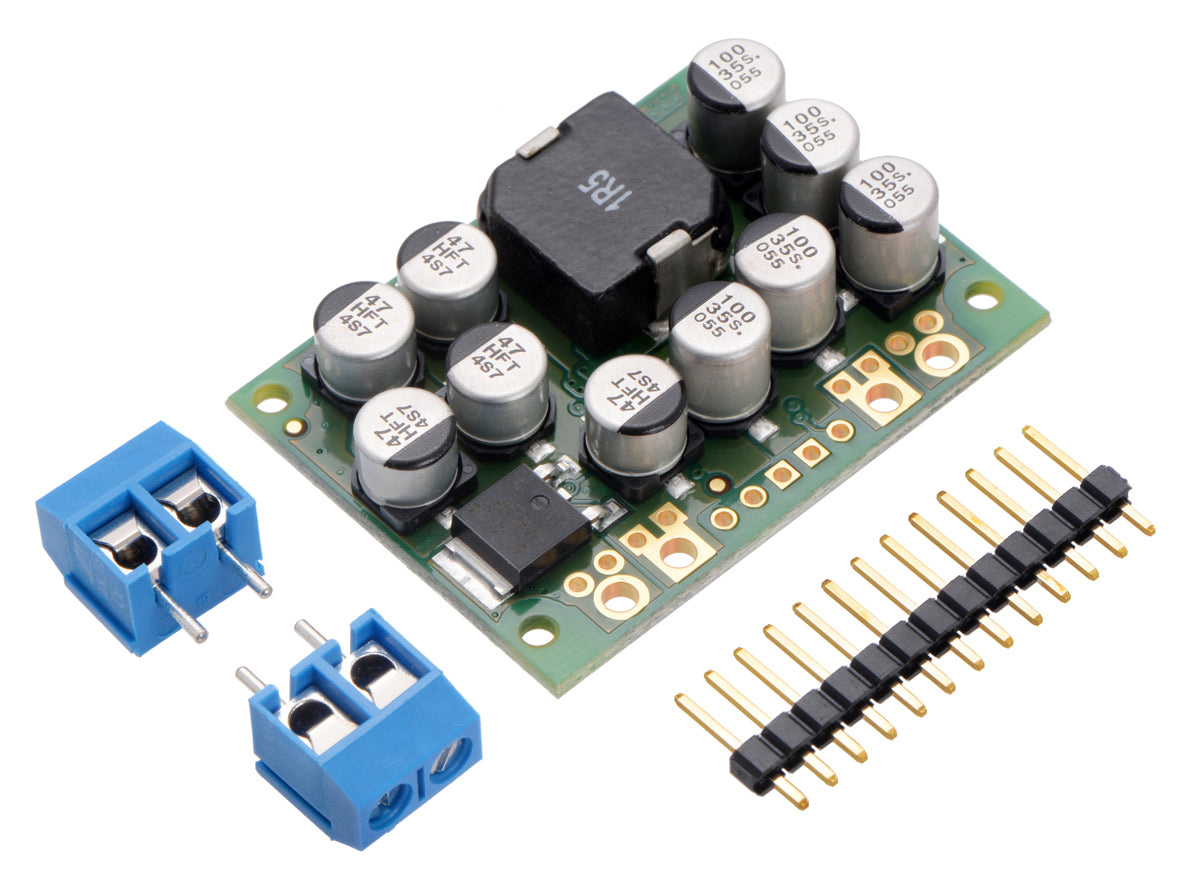

The Pololu 5V, 15A Step-Down Voltage Regulator D24V150F5 is a compact switching regulator for projects that need a lower and more stable DC rail from a higher input source.
It is a strong fit for robots, control boxes, battery-powered builds, and embedded systems that need efficient power conversion with less heat than a linear regulator.
Important: Choose a regulator based on your full input-voltage range, startup current, thermal limits, and required headroom. Real output current depends on input voltage, airflow, and temperature.
Why you'll love it
- Efficiency: typical 80% to 95% depending on VIN/load
- Enable low-power: EN low disables output and reduces quiescent to about 5–10µA per volt on VIN
- 5V version power-save mode: available when VIN is above 12V (via MOD pin)
- Synchronous SMPS (DC-DC) design is far more efficient than linear regulators—especially for big VIN→5V drops
- Designed for high peak loads with ~ 32A instantaneous current limiting
- Typical continuous current can land anywhere from ~5A to 20A depending on VIN and cooling (forced airflow/heatsink helps)
What you can build
Great for powering 5V or 12V rails in robots, controllers, sensor hubs, SBC projects, vehicle electronics, and custom battery systems.
Compare regulator options
| Model | Topology | Output | Max current |
|---|---|---|---|
| D24V22F5 | Buck | 5 V | 2.5 A |
| D36V28F5 | Buck | 5 V | 3.2 A |
| D30V30F5 | Buck | 5 V | 3.4 A |
| D24V50F5 | Buck | 5 V | 5 A |
| D42V55F5 | Buck | 5 V | 6 A |
| D24V90F5 | Buck | 5 V | 9 A |
| D24V150F5 | Buck | 5 V | 15 A |
Technical specifications
| Product | Pololu 5V, 15A Step-Down Voltage Regulator D24V150F5 |
|---|---|
| Brand | Pololu |
| Model | D24V150F5 |
| Category | DC-DC Step-Down Regulator |
| Topology | Step-Down (Buck) |
| Output Voltage | 5 V |
| Max Current | 15 A |
| Support | Official Pololu product search and support resources linked below |
Official resources
Find this product on Pololu | Pololu support and resources
What’s in the box
1 × Pololu 5V, 15A Step-Down Voltage Regulator D24V150F5
Frequently Asked Questions
Can I power a microcontroller with this?
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Will it run cool at full load?
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
Is this better than a linear regulator?
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
