Stable Pololu 12V Power for Embedded Builds
The Pololu 12V, 15A Step-Down Voltage Regulator D24V150F12 is a compact switching regulator for projects that need a lower and more stable DC rail from a higher input source.
It is a strong fit for robots, control boxes, battery-powered builds, and embedded systems that need efficient power conversion with less heat than a linear regulator.
Important: Choose a regulator based on your full input-voltage range, startup current, thermal limits, and required headroom. Real output current depends on input voltage, airflow, and temperature.
Why you'll love it
- Instantaneous current limit is about 32A (short bursts)
- Continuous current depends on heat; typical continuous range for the family is ~5A to 20A without extra cooling (varies with VIN/VOUT)
- Built-in protections: reverse-voltage , over-current/short , thermal shutdown , soft-start , and undervoltage lockout
- Clean 12V from higher voltages: great for 6S–10S battery systems, 24V rails, or adapters up to 40V
- Efficient power delivery: much less heat than linear regulators when stepping down big voltage gaps
- Built-in reverse-voltage protection: extra safety for field wiring and portable builds
What you can build
Great for powering 5V or 12V rails in robots, controllers, sensor hubs, SBC projects, vehicle electronics, and custom battery systems.
Compare regulator options
| Model | Topology | Output | Max current |
|---|---|---|---|
| D24V22F12 | Buck | 12 V | 2.2 A |
| D36V28F12 | Buck | 12 V | 2.4 A |
| S13V25F12 | Buck-Boost | 12 V | 2.5 A |
| D42V55F12 | Buck | 12 V | 4.5 A |
| D24V150F12 | Buck | 12 V | 15 A |
| U3V16F12 | Boost | 12 V | — |
| U3V40F12 | Boost | 12 V | — |
Technical specifications
| Product | Pololu 12V, 15A Step-Down Voltage Regulator D24V150F12 |
|---|---|
| Brand | Pololu |
| Model | D24V150F12 |
| Category | DC-DC Step-Down Regulator |
| Topology | Step-Down (Buck) |
| Output Voltage | 12 V |
| Max Current | 15 A |
| Support | Official Pololu product search and support resources linked below |
Official resources
Find this product on Pololu | Pololu support and resources
What’s in the box

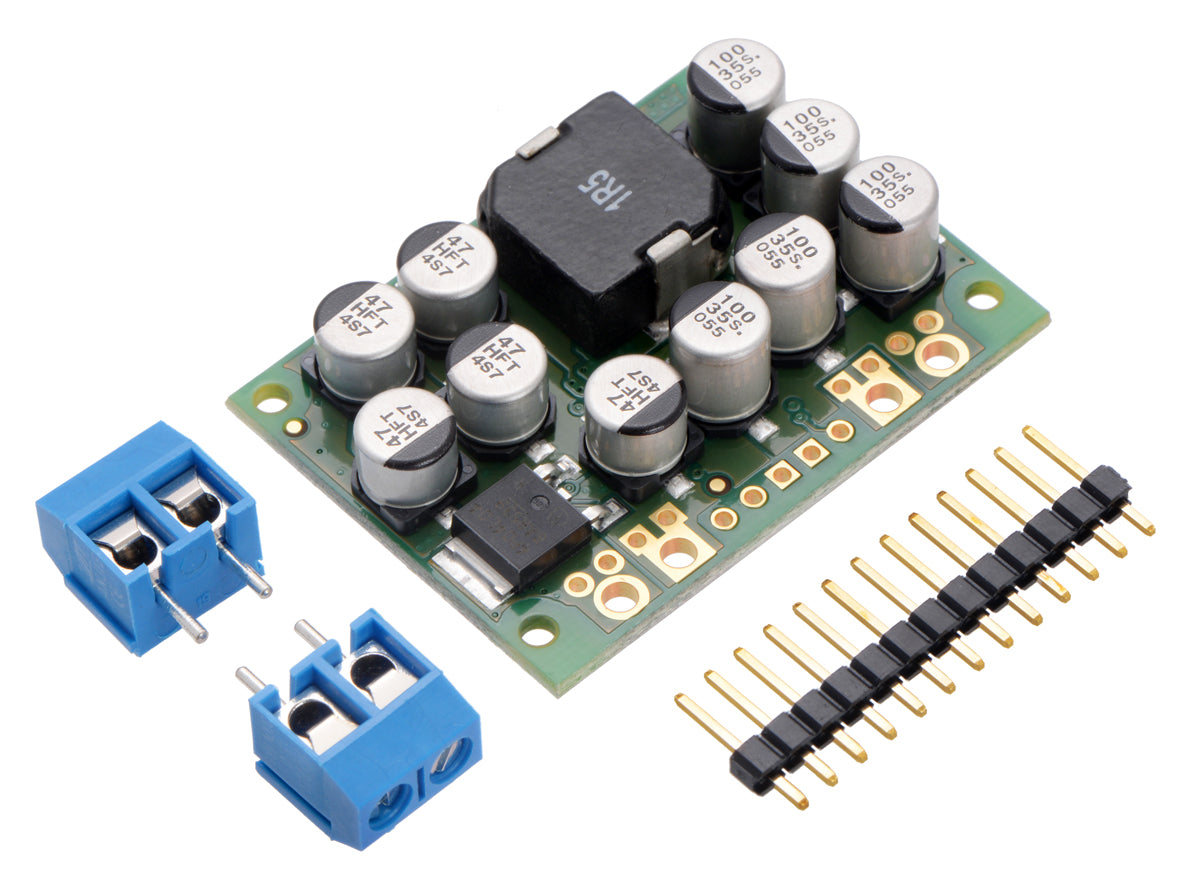

1 × Pololu 12V, 15A Step-Down Voltage Regulator D24V150F12
Frequently Asked Questions
Can I power a microcontroller with this?
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Will it run cool at full load?
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
Is this better than a linear regulator?
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
