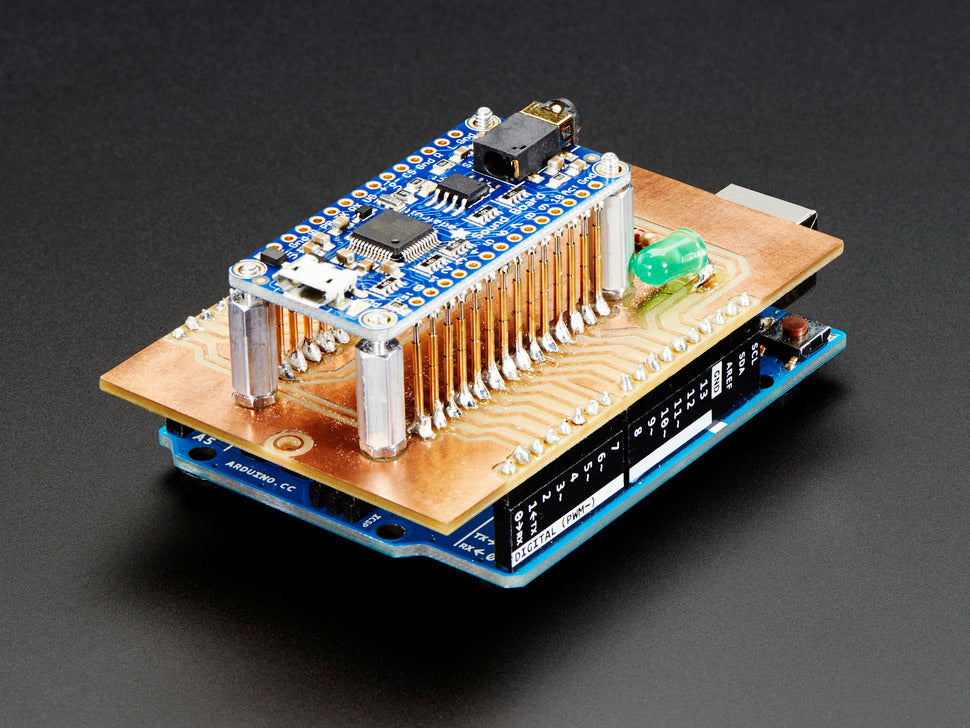

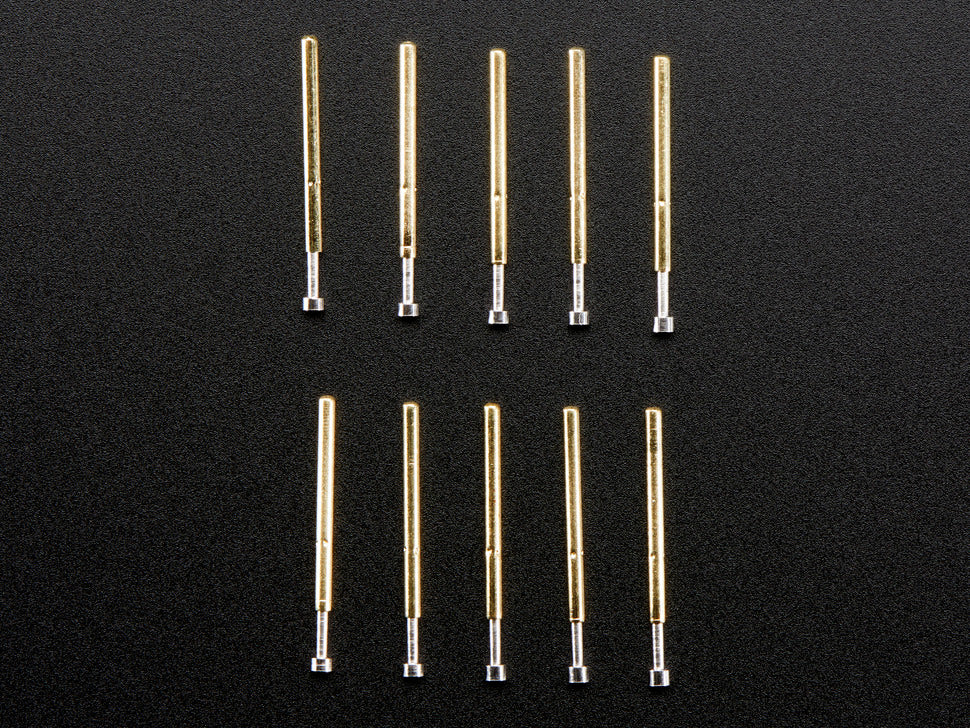

Pogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts. We use them by the dozen for making programming and testing jigs but they're handy also if say you want to JTAG program a board that you cant solder headers to - just shove these thin contacts into a 0.1" pitch IDC programming cable and press it onto the contacts.

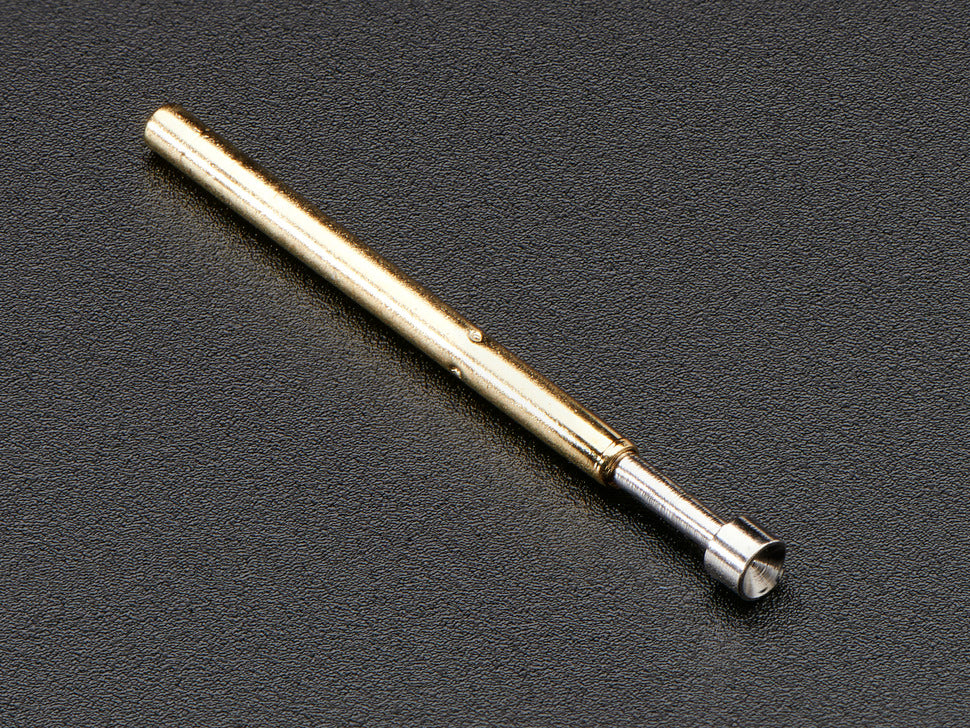

These particular pins are (in our opinion) ideal because they are skinny enough to fit into the most protoboard or perf board - they have a 1.0mm/0.04" diameter body (the gold part) but the spring contact head is 1.3mm (0.05") wide. The uncompressed length is 16.5mm/0.65", compressed is 13.8mm/0.54"
TECHNICAL DETAILS
- Diameter (body): 1mm / 0.04"
- Diameter (spring contact head): 1.3mm / 0.05"
- Uncompressed Length: 16.5mm / 0.65"
- Compressed Length: 13.8mm / 0.54"
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
