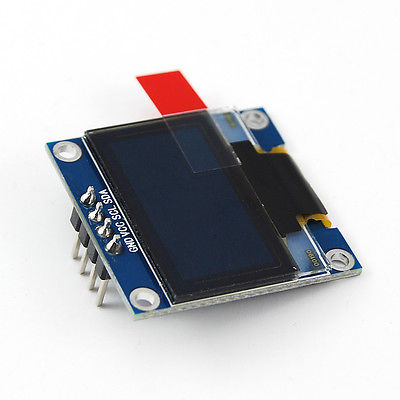

OLED 0.96 128x32 I2C

The OLED 0.96" I2C Display Module is a compact and powerful visual output solution for small-scale projects. With its 128x64 pixels and monochrome color depth, it delivers crisp visuals perfect for displaying anything from simple text to intricate images. It operates with a 3.3V to 5V power supply, making it compatible with various microcontrollers like Arduino or Raspberry Pi via I2C communication (SDA/SCL pins). Its small diagonal size of 0.96" makes it ideal for compact projects such as wearable devices or portable data displays.

This OLED display offers several benefits due to its OLED technology, including a high contrast ratio, fast response times, and wide 160-degree viewing angles. Unlike traditional LCD screens, it doesn’t need a backlight, which not only saves power (maximum of 0.06W) but also enhances the readability of the display, even at smaller sizes. The module is perfect for low-power projects where energy efficiency is important, such as battery-operated devices.

With dimensions of 27.8 x 27.3 x 4.3 mm, it can easily fit into tight spaces, making it versatile for numerous applications like wearable tech, information displays, and user interfaces. Its I2C interface reduces the number of required connections, making it easier to integrate into your designs. Whether you’re working on IoT, data monitoring, or creating interactive interfaces, this OLED 0.96" display is a powerful addition to your toolkit.

Features:

• High Resolution: The OLED display typically features a resolution of 128x64 pixels, providing clear and crisp visuals. This is ideal for displaying text, graphics, and even simple animations.
• Compact Design: Its small size makes it suitable for a variety of applications without taking up too much space in your project enclosure.
• Low Power Consumption: OLEDs are known for their energy efficiency, especially when displaying darker images. This makes the Crowtail display perfect for battery-powered projects.
• I2C Communication: The OLED Crowtail uses I2C communication, allowing for easy wiring and a reduction in the number of pins needed. This is particularly useful for complex projects where space is limited.
• Versatile Compatibility: The display can work seamlessly with various platforms, making it an excellent choice for both beginners and seasoned developers.

Specifications:

• Diagonal Screen Size: 0.96"
• Resolution: 128 x 64 dot matrix
• Power Supply: 3.3~5V DC
• Max OLED Voltage: 15V
• Current: 100uA (segment), 15mA (common)
• Brightness Control: 256-step contrast
• Display Buffer: 128 x 64 bit SRAM
• Interfaces: 8-bit 6800/8080 parallel, SPI, I2C
• Screen Scrolling: Horizontal and vertical
• Frame Rate: Programmable
• Re-mapping: Row and column
• Temperature Range: -40°C to 85°C
• Color Depth: Monochrome
• Dimension: 27.8 x 27.3 x 4.3 mm
• Power: 0.06W Max
• Viewing Angle: 160 Degree
• Duty: 1/32

Technical Details

• Datasheet
