NeoPixel Ring 40 x WS2812 5050 RGB LED

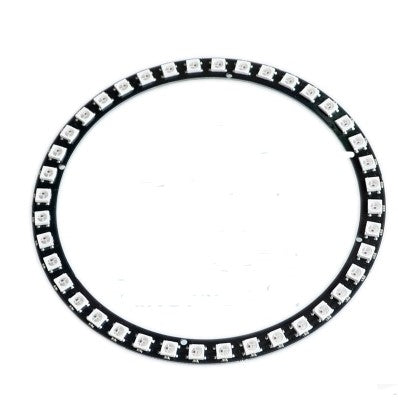

NeoPixel Ring 40 x WS2812 5050 RGB LED - This is the 40 LED NeoPixel Ring similar from Adafruit, a small chainable 5" (12.5cm) outer diameter board equipped with 5050 WS2812 RGB LEDs. The WS2812s are each addressable as the driver chip is located inside the LED. Each NeoPixel Stick has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and requires 5V.

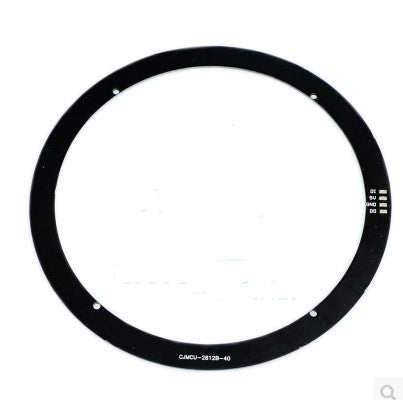

Every ring is equipped with a single data line with a very timing-specific protocol requiring a real-time microcontroller with a 8MHz or faster processor such as an AVR, Arduino, PIC, mbed, etc. There are solder pads on the back for connecting wires or breadboard pins and two mounting holes for securing this board to many different surfaces.

Frequently Asked Questions AboutNeoPixel Ring 40 x WS2812 5050 RGB LED

Q1: What is a 40 x WS2812 5050 RGB LED NeoPixel Ring?

The NeoPixel Ring 40 x WS2812 5050 RGB LED is a circular arrangement of 40 unique WS2812 RGB LEDs. These LEDs are organized in a ring, with each LED independently addressable, and can show a variety of colors and designs.

Q2: What exactly is the WS2812 LED?

The WS2812 LED is a form of RGB LED that incorporates a controller IC into the LED package, enabling individual LED management. This also allows for the creation of intricate lighting patterns using a large number of LEDs.

Q3: What is the size of NeoPixel Ring 40 x WS2812 5050 RGB LED?

The NeoPixel Ring 40 x WS2812 5050 RGB LED has a 70mm perimeter and a 3.5mm width.

Q4: How much power is required by the NeoPixel Ring 40 x WS2812 5050 RGB LED?

The NeoPixel Ring 40 x WS2812 5050 RGB LED can be powered by a 5V DC supply.

Q5: How much electricity is consumed by the NeoPixel Ring 40 x WS2812 5050 RGB LED?

When at maximum brightness and showing white, each LED on the NeoPixel Ring 40 x WS2812 5050 RGB LED will use around 60mA electricity. As a result, the ring's overall power usage can reach 2.4A. (40 x 0.06A).

Q6: What is the working process of  NeoPixel Ring 40 x WS2812 5050 RGB LED?

The NeoPixel Ring 40 x WS2812 5050 RGB LED is operated by a microcontroller with the proper software or code, such as an Arduino or Raspberry Pi. The data transmission will be to the first LED in the ring and then to the next LED in the chain.

Q7: Can we cut short the length of the NeoPixel Ring 40 x WS2812 5050 RGB LED?

Yes, you can cut short the NeoPixel Ring 40 x WS2812 5050 RGB LED between each LED. This enables you to design LED bands in a variety of forms and sizes.

Q8: What are the various applications of  NeoPixel Ring 40 x WS2812 5050 RGB leds?

The NeoPixel Ring 40 x WS2812 5050 RGB LED is a popular device for lighting and decorating applications such as costumes, jewelry, and art installations. This can also be utilized in applications such as digital signs, ambient lighting, and home automation.
