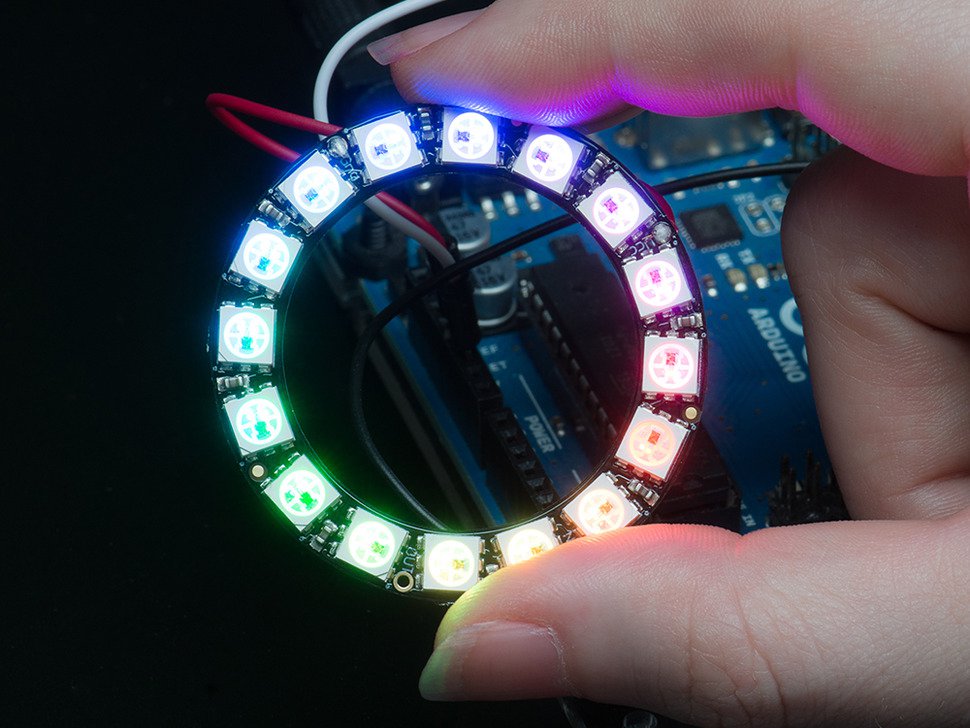

NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers

NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers - Round and round and round they go! 16 ultra bright smart LED NeoPixels are arranged in a circle with 1.75" (44.5mm) outer diameter. The rings are 'chainable' - connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC (4-7V works) and you're ready to rock.

There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microconroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be used with a Linux-based microcomputer or interpreted microcontroller such as the netduino or Basic Stamp. Our wonderfully-written Neopixel library for Arduino supports these pixels! As it requires hand-tuned assembly it is only for AVR cores but others may have ported this chip driver code so please google around. An 8MHz or faster processor is required.

Comes as a single ring with 16 individually addressable RGB LEDs assembled and tested.

Frequently Asked Questions AboutNeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers

Q1: What is NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers?

A collection of 16 independently controllable RGB LEDs, each of which has a red, green, and blue LED, makes up a NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers. The ring also has integrated drivers, making it easier to control the LEDs and enabling more intricate animations and effects.

Q2: How do the 16 x 5050 RGB LEDs in a NeoPixel Ring with Integrated Drivers function?

With the help of a single data line linked to a microcontroller like an Arduino or Raspberry Pi, the NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers is controlled. The data line transmits digital signals to the integrated drivers, which transform them into exact voltage levels that regulate each LED's brightness.

Q3: What are the technical specifications of a NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers?

The NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers has the following technical specifications:

  • Diameter: 44.5mm
  • Thickness: 3.5mm
  • Weight: 4.6g
  • Input voltage: 5V
  • Power consumption: 60mA per LED (960mA total for the ring)
  • LED type: 5050 SMD RGB
  • LED quantity: 16
  • Communication protocol: One-wire protocol (WS2812B)

Q3: What are some applications for a NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers?

With the NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers, you may make mood lighting, embellish costumes or props with visual effects, or construct interactive installations. A ring is a popular option for makers and hobbyists because of its small size and simple interface.

Q4: How do I program a NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers?

Programming a NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers involves sending digital signals to the integrated drivers using a microcontroller, such as an Arduino or Raspberry Pi. The code can be written in a variety of programming languages, such as C++, Python, or JavaScript. Libraries such as Adafruit_NeoPixel or FastLED provide convenient interfaces for controlling LEDs.

Q5: Can I chain multiple NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers together?

Yes, multiple NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers can be chained together using the data line, allowing for larger and more complex lighting installations.

Q6: What are some tips for using a NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers?

  • Be careful not to exceed the maximum current rating of the LED ring.
  • Connect the ring to a stable power source to prevent voltage fluctuations that can damage the LEDs.
  • Use a logic level shifter if the microcontroller is running at a different voltage than the LED ring.
  • Avoid bending or flexing the ring, as this can damage the LEDs or the connections between them.
  • Always use a resistor in series with the data line to protect the LEDs and the microcontroller from voltage spikes or other electrical noise.

TECHNICAL DETAILS

  • Outer diameter: 44.5mm / 1.8";
  • Inner diameter: 31.7mm / 1.2"
  • Thickness: 6.7mm / 0.3"
  • As of 7/16/204 we are now shipping with a standard-thickness PCB and we added an extra ground and power breakout
  • Weight: 3.03g
  • May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol

NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers

NeoPixel Ring 16 x 5050 RGB LED with Integrated Drivers

Low stock: 4 left

Product Code

SKU:1463
