Arduino Mega + ESP8266 WiFi on One Board — The All-In-One WiFi Mega

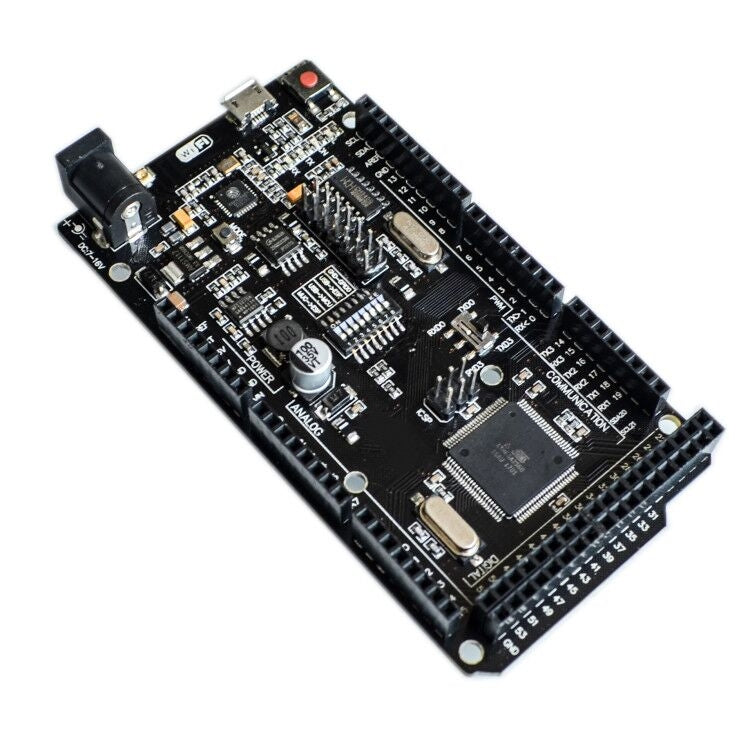

The Mega WiFi R3 ATmega2560 + ESP8266 combines the full power of the Arduino Mega 2560 with an onboard ESP8266 WiFi module — giving you 54 digital I/O pins, 16 analog inputs, hardware UART ports, and WiFi all on a single Arduino-compatible board.
For projects that outgrew the Arduino Uno but also need WiFi — robotics with many sensors, CNC controllers, large relay arrays, multi-serial communication systems — this board eliminates the need for a separate WiFi shield or external ESP module wiring.
Mega WiFi vs Arduino Mega + WiFi Shield — why choose this?
| Feature | Mega WiFi R3 (this board) | Arduino Mega + Separate WiFi Shield |
|---|---|---|
| WiFi | ✅ Onboard ESP8266 — no shield needed | Requires separate WiFi shield |
| Digital I/O | 54 pins (same as Mega) | 54 pins |
| Analog inputs | 16 (same as Mega) | 16 |
| Hardware UARTs | 4 (Serial, Serial1, Serial2, Serial3) | 4 |
| USB modes | USB-TTL switchable — works as serial bridge | Standard USB only |
| Cost | One board — more economical | Mega cost + shield cost |
| Compatibility | Arduino Mega 2560 compatible | Full Arduino Mega compatible |
Key features
- ATmega2560 + ESP8266: Full Mega I/O capability with built-in WiFi
- 54 digital I/O pins: 15 with PWM output
- 16 analog inputs: 10-bit ADC resolution
- 4 hardware UART ports: Serial, Serial1, Serial2, Serial3
- USB-TTL switch: Configure as Arduino + WiFi or use ESP8266 as USB bridge
- Arduino IDE compatible: Select "Arduino Mega 2560" from board list
- Standard Mega shield footprint: Compatible with Arduino Mega shields
Technical specifications
| Main MCU | ATmega2560 (16 MHz) |
|---|---|
| WiFi Module | ESP8266 |
| Flash Memory (Mega) | 256 KB |
| SRAM (Mega) | 8 KB |
| EEPROM | 4 KB |
| Digital I/O | 54 pins (15 PWM) |
| Analog Inputs | 16 × 10-bit ADC |
| Hardware UARTs | 4 (Serial, Serial1, Serial2, Serial3) |
| WiFi Standard | 802.11 b/g/n, 2.4 GHz |
| USB | Micro-USB, USB-TTL switchable |
| Power Input | USB or 7V–12V DC barrel jack |
| Form Factor | Arduino Mega R3 compatible |
Frequently Asked Questions
How does the ATmega2560 communicate with the ESP8266? Via a hardware UART (typically Serial3). The ESP8266 handles WiFi using AT commands or can be flashed with custom firmware. A DIP switch selects the communication mode.
Is it compatible with Arduino Mega shields? Yes. The board follows the Arduino Mega R3 form factor and shield pinout.
Can I program the ESP8266 separately? Yes. The USB-TTL switch lets you connect the USB port directly to the ESP8266 for flashing custom firmware like Tasmota or AT firmware.
Why would I choose this over an ESP32? When you specifically need the ATmega2560's 54 I/O pins, 16 ADC channels, 4 hardware UARTs, or compatibility with a large library of Mega-specific shields and code.
