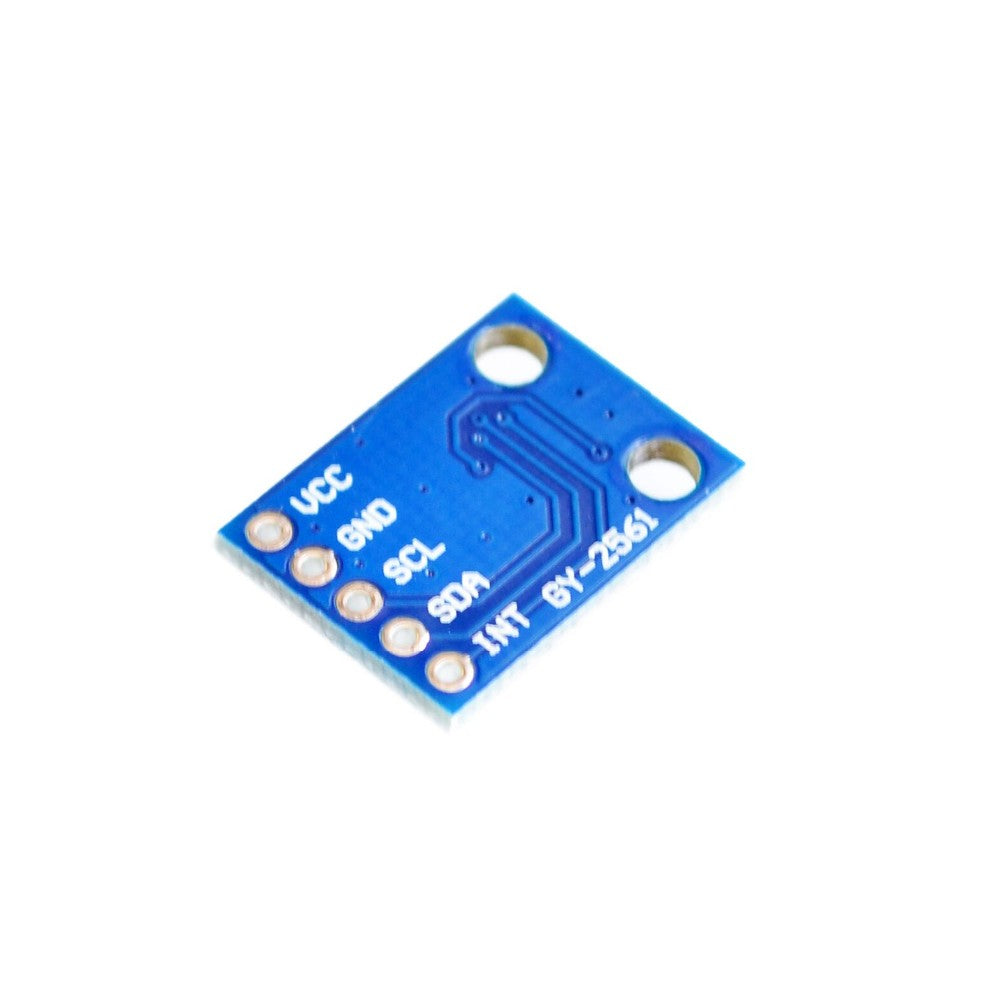

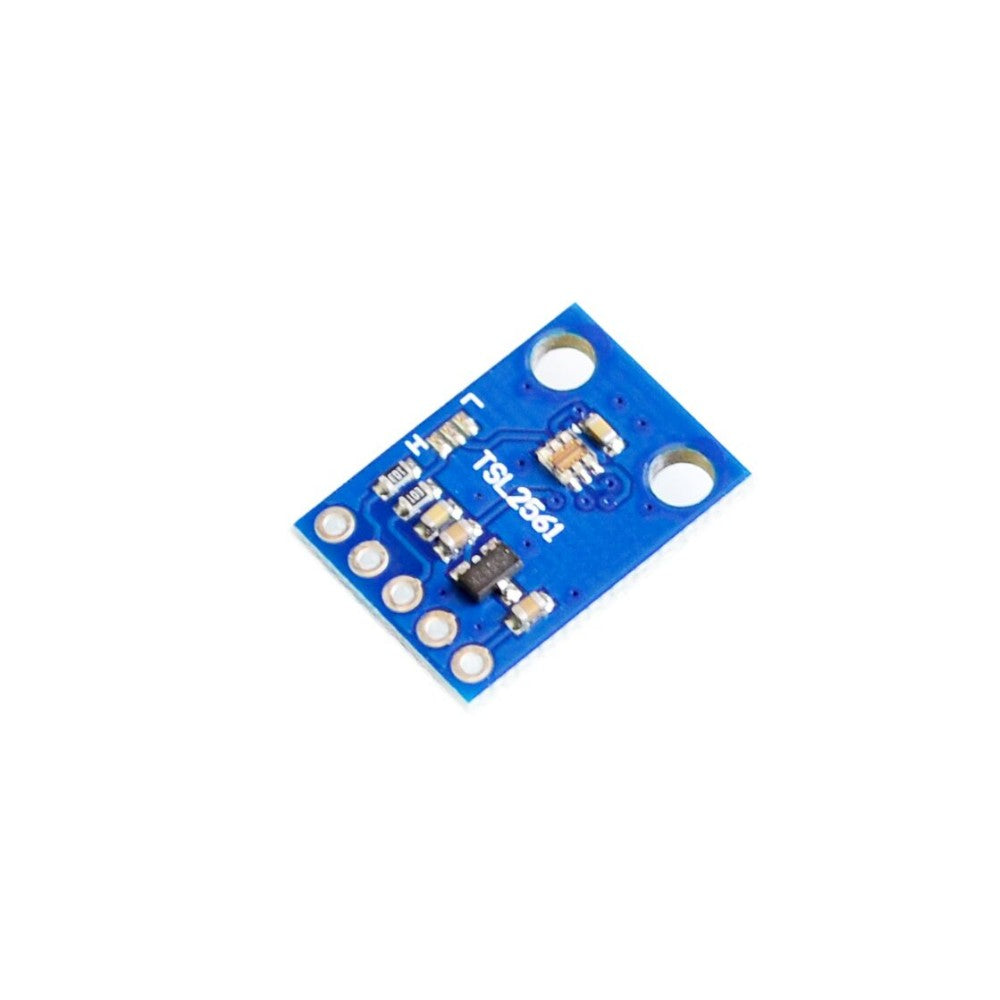

Luminosity / Lux / Light TSL2561 Digital Sensor Breakout

Luminosity / Lux / Light TSL2561 Digital Sensor Breakout - The TSL2561 luminosity sensor is accurate in calculating for Lux comparing with low-cost CdS cells. It can be configured for different timing ranges to detect light up to 0.1 to 40,000+ Lux.

This sensor can measure infrared, full-spectrum, or human-visible light. It could be easily interfaced with your Arduino since it uses I2C. By accessing the three addresses, you can have three sensors at the same time. It is excellent for low-power devices since the current draw is low.

Frequently Asked Questions About Luminosity / Lux / Light TSL2561 Digital Sensor Breakout

Q1: What is brightness in context of measurement?

The entire amount of light released by a source, including all visible and non-visible light wavelengths, is measured as luminosity.

Q2: What exactly is lux?

A unit of measurement called lux is used to represent how much light falls on a specific surface area. It is specified as 1 lm/m2 (lumens per square meter).

Q3: What is a digital sensor breakout for the TSL2561?

A light sensor with the ability to measure both visible and infrared light is the TSL2561 digital sensor breakout. Electronic gadgets frequently utilize it to control screen brightness or detect light in outdoor settings.

Q4: Describe the operation of the TSL2561 digital sensor breakout.

The TSL2561 digital sensor breakout turns light into an electrical signal with the help of a photodiode. An analog-to-digital converter then amplifies the electrical input and transforms it into a digital signal. From extremely low light to strong sunshine, the sensor is capable of detecting a wide range of light intensities.

Q5: What is the TSL2561 digital sensor breakout's measuring range?

The measuring range of the TSL2561 digital sensor breakout is 0.1–40,000+ lux. This makes it appropriate for use in a variety of applications, from controlling inside lights to monitoring the climate outside.

Q6: What are some typical uses for the digital sensor breakout TSL2561?

To change screen brightness based on ambient light levels, the TSL2561 digital sensor breakout is frequently used in electronic devices like smartphones, tablets, and laptops. It is also used to measure sunlight intensity and track changes in natural light levels over time in outdoor environmental monitoring systems.

Q7: How precise is the digital sensor breakout for the TSL2561?

The TSL2561 digital sensor breakout's accuracy is influenced by a variety of variables, including the sensor's build quality, calibration, and operating environment. Typically, the sensor's accuracy in measuring light intensity is within a few percent.

Q8 How can I include the digital sensor breakout board TSL2561 in my project?

You must link the TSL2561 digital sensor breakout to a microcontroller or other device that can read the digital output signal to utilize it in your project. Additionally, you will need to write software to read, understand, and control any other devices linked to the sensor.

Q9: Does the TSL2561 digital sensor breakout have any restrictions?

The TSL2561 digital sensor breakout has several restrictions, much like all sensors. For instance, it might not be appropriate for usage in settings with drastically different light levels, such as those that are extremely bright or dark. Furthermore, the sensor's accuracy and performance may be impacted by environmental variables like temperature and humidity.

Luminosity / Lux / Light TSL2561 Digital Sensor Breakout

Luminosity / Lux / Light TSL2561 Digital Sensor Breakout

Low stock: 5 left

Product Code

SKU:AB022

Regular price ₱ 465.00
Regular price Sale price ₱ 465.00
