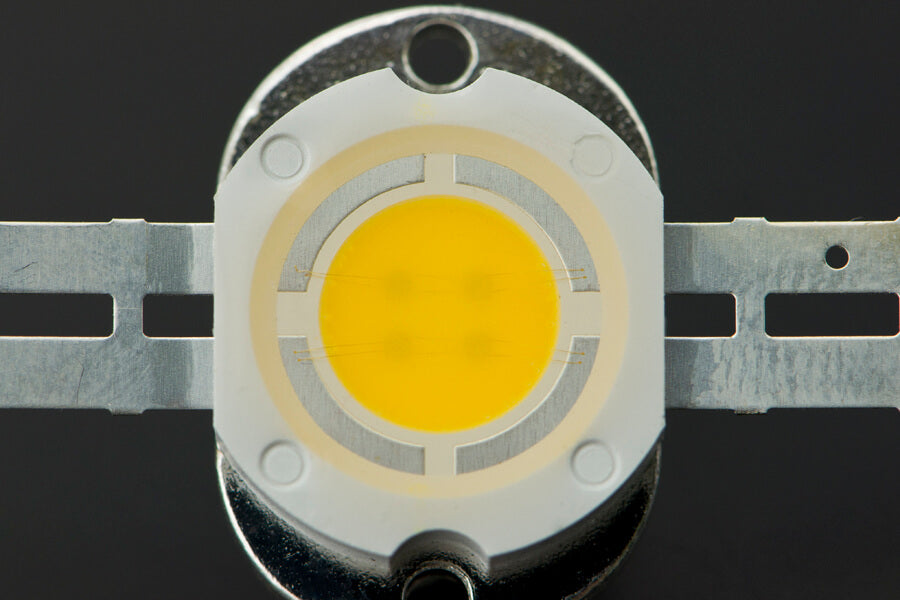

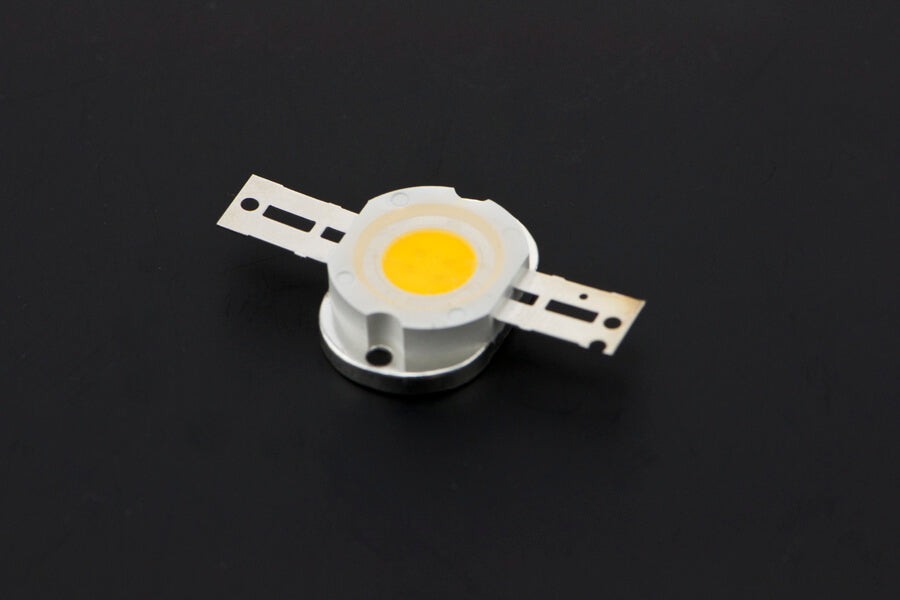

LED High Bright 5.5W Warm White

This 5.5W high bright LED can be used as a flash searchlight for your robot projects. It consists of 4 separate LEDs and has a luminance of 250LM. Comes in various colours.

Warning : If you use the full power, LED will be very hot. Please use Heat Sink to cool it down.

SPECIFICATION

• Rated Power: 5.5W

• Luminance: 200-250LM

• Working Voltage : 6.5V-7V（With Heat Sink); 4.5V-5V（Without Heat Sink）

• Rated Current: 700mA

• Color Temperature: 3000K-4000K

• Angle: 120°;

• Working Temperature: -20°C ~ 60°C

• Reserving Temperature: -20°C ~ 60°C

• Size: 38mm*23mm

• Weight: 10g


DOCUMENTS

• Datasheet

• Circuit Diagram
