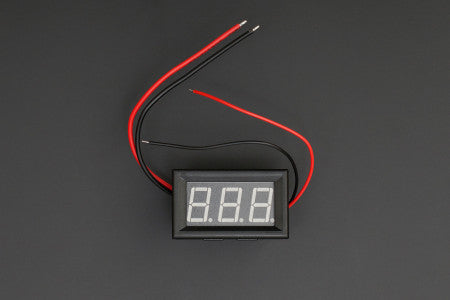

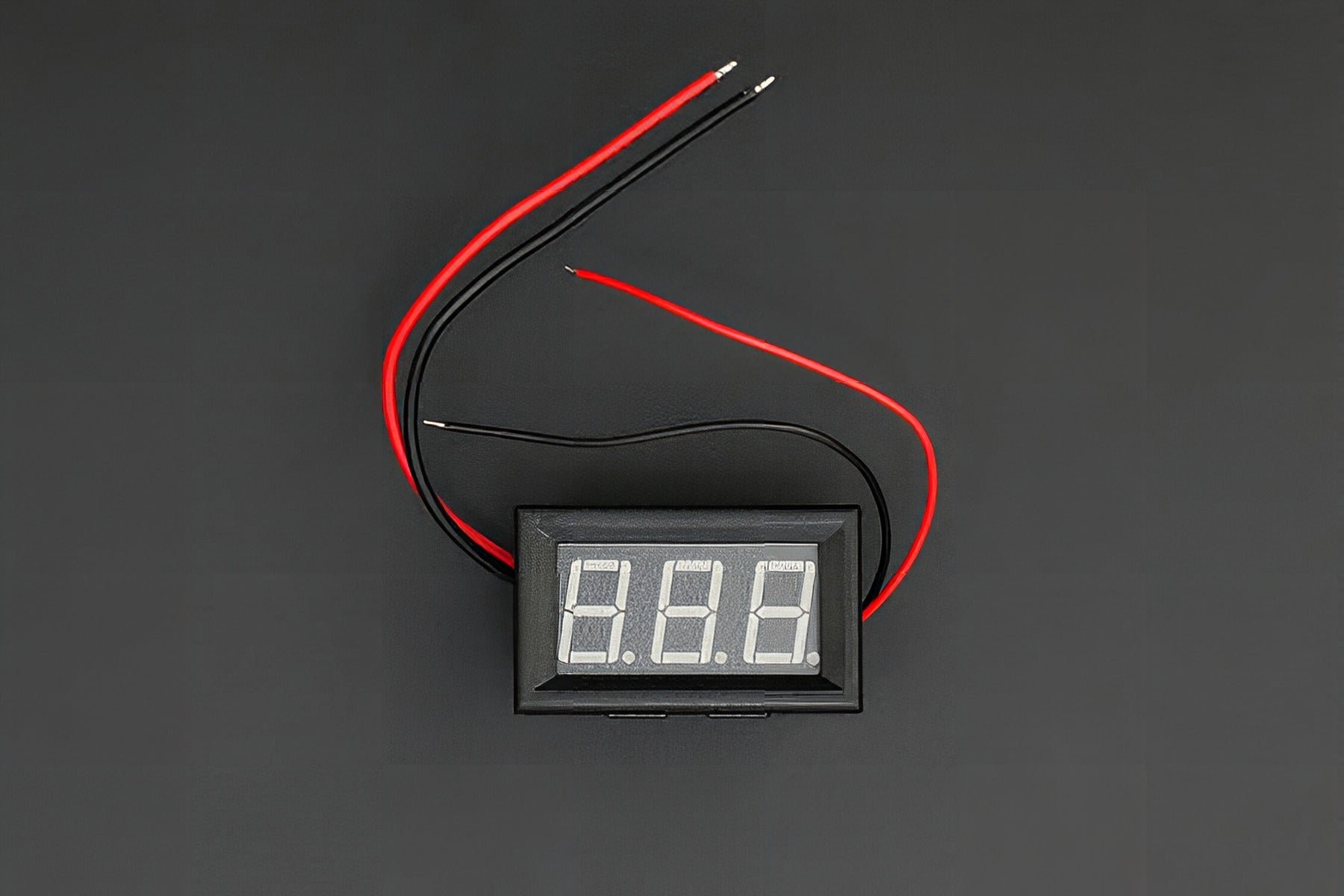

This is a standard LED Current Meter 10A. It measures 0-9.99A with 2% accuracy. Best suitable for current display in the circuit.Just apply four wires without any extra circuit or components, it gives the reading straight away. Easy to use, and good company with robot application.It has three color to select, green/blue/red.
Warnings: Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter are used common-ground connection. So,the measurement terminal of current meter must be cascaded after loads. It's better that power supply of the current meter is isolated.
SPECIFICATION
- Measure Current: 0-9.99A DC
- Power supply voltage: 4-30V DC
- Display mode: 3-bit 0.56 Led digital tube
- Accuracy:2%
- Opening dimension: 45.5mm*26.5mm (1.79"*1.04")
- Dimension: 48mm*29mm*21mm (1.89"*1.14"*0.83")
DOCUMENTS
SHIPPING LIST
- LED Current Meter 10A (Green) x1
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
