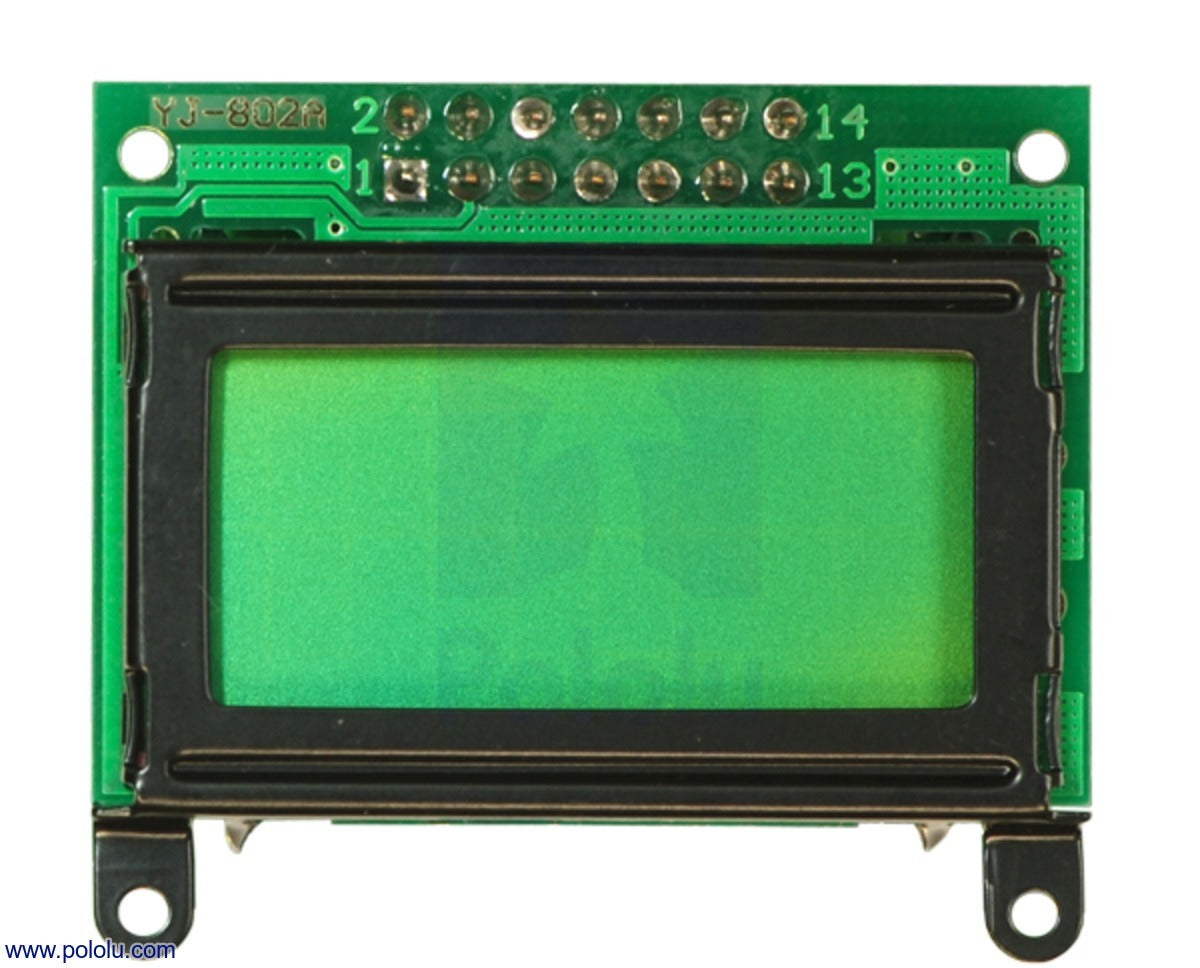

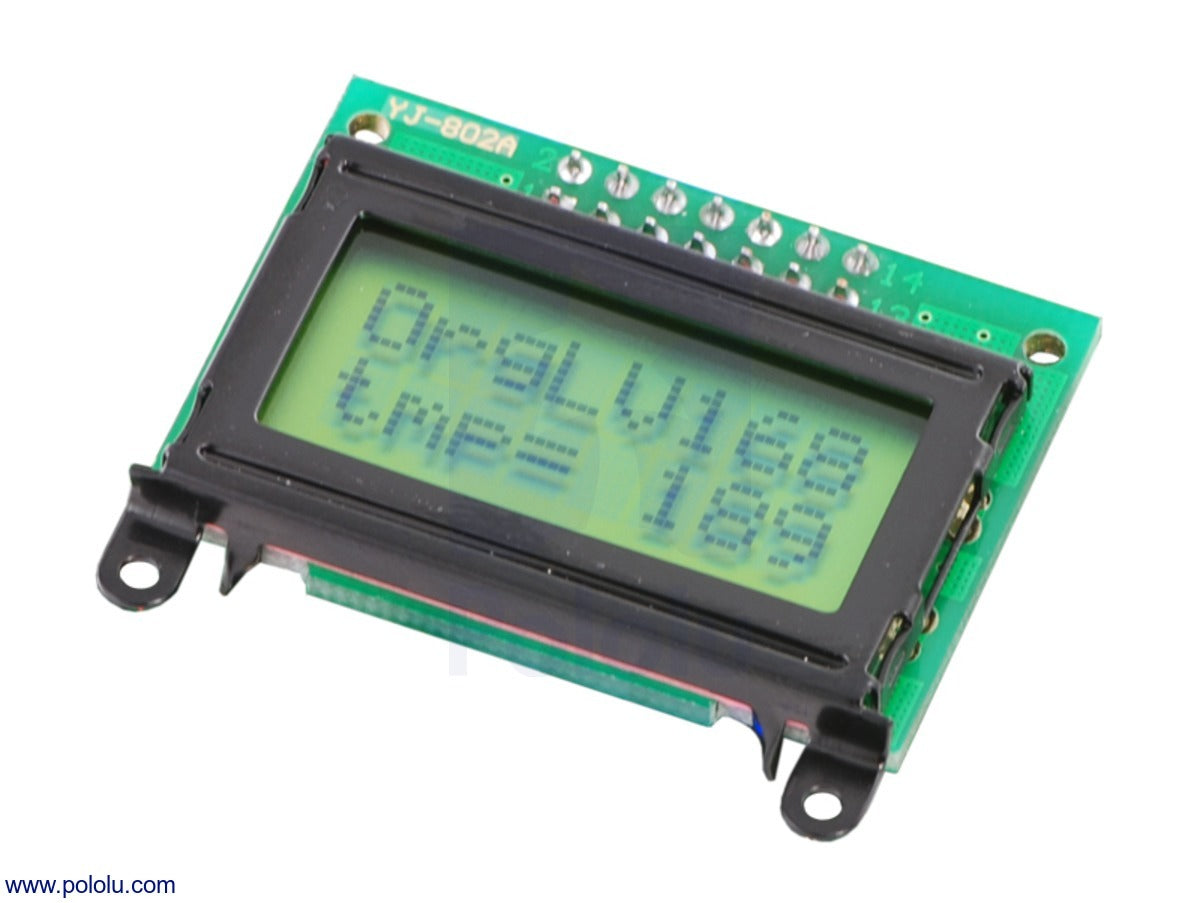

LCD 8x2 Character Black Bezel Parallel Interface


This little 8-character, 2-line parallel liquid crystal display is a generic equivalent of the Optrex DMC-50448N-AAE-AD LCD. It is incorporated into our Orangutan SV-328 robot controllers, some versions of our A-Star 32U4 Prime microcontroller boards Zumo 32U4 and 3pi robots. It uses the common HD44780 interface, so sample interface code is widely available for a variety of microcontrollers. This is the smallest package we know of for this familiar interface.

You can find sample HD44780 LCD interface code written for a variety of AVR microcontrollers as part of the Pololu AVR library.
Pinout
Pin Symbol Function
1 Vss ground (0 V)
2 Vdd 5 V logic supply voltage
3 Vo contrast adjustment
4 RS H/L register select signal
5 R/W H/L read/write signal
6 E H/L enable signal
7-14 DB0 – DB7 H/L data bus for 4- or 8-bit mode
Dimensions
Size: 40 x 35 x 7 mm
Viewing area: 30 x 14 mm
Dot size: 0.5 x 0.5 mm
Character size: 2.78 x 4.49 mm
Weight: 12 g
General specifications
Minimum logic voltage: 4.5 V
Maximum logic voltage: 5.5 V
Supply current: 2 mA
