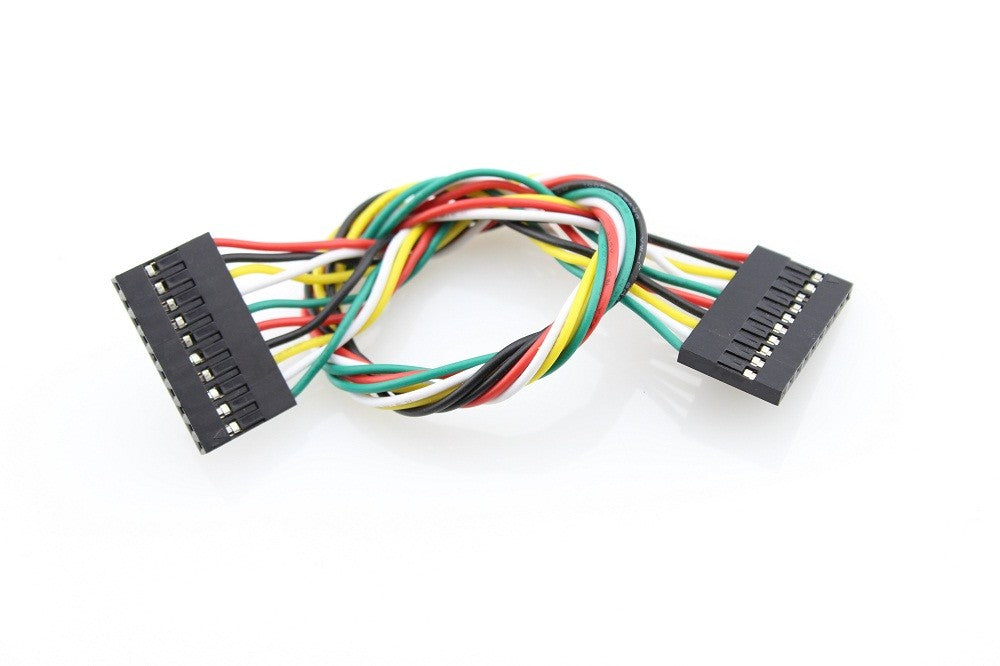

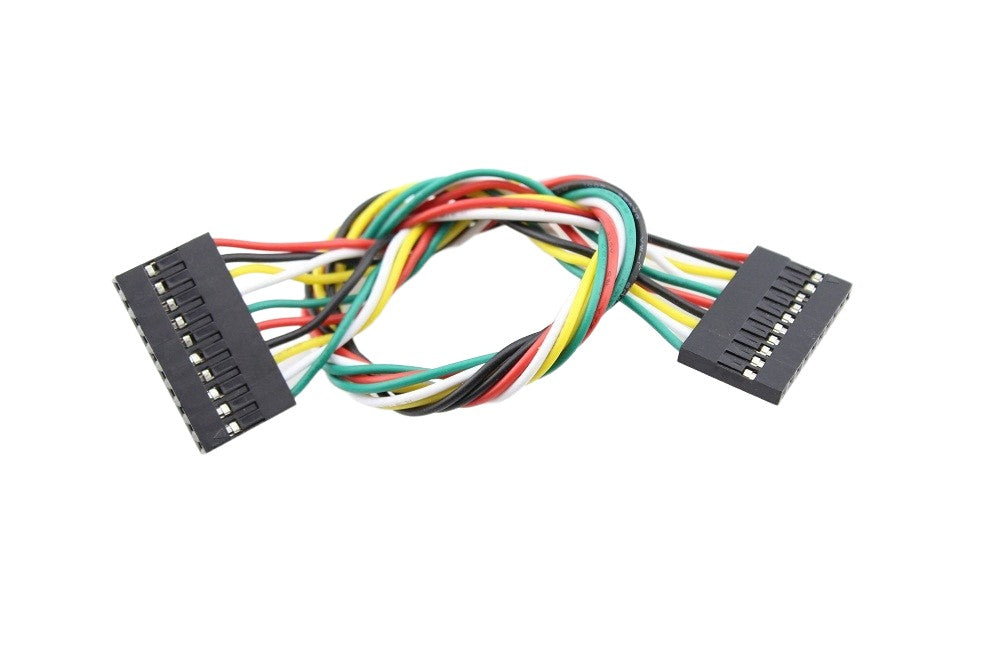

Jumper Wire 10Pin Dual-Female - 200mm - This is 200mm long 10pin female to female jumper wire which uses high quality 26# line. Great for jumping from board to board. These are simple jumper wires used on standard 2.54mm(0.1") breakaway headers.

Frequently Asked Questions about Jumper Wire 10Pin Dual-Female - 200mm

Q1: What is a Jumper Wire 10Pin Dual-Female?

A: A Jumper Wire 10Pin Dual-Female is a type of electrical cable consisting of 10 individual wires, each with a female connector at both ends.

Q2: What is the purpose of a Jumper Wire 10Pin Dual-Female?

A: The purpose of a Jumper Wire 10Pin Dual-Female is to connect two separate electronic components or circuits that require a 10-pin connection. It can be used for a variety of applications, including prototyping, testing, and repairing electronic devices.

Q3: What is the length of a Jumper Wire 10Pin Dual-Female?

A: The length of a Jumper Wire 10Pin Dual-Female can vary depending on the manufacturer and the specific product. However, most jumper wires come in lengths ranging from a few inches to several feet.

Q4: What is the gauge of a Jumper Wire 10Pin Dual-Female?

A: The gauge of a Jumper Wire 10Pin Dual-Female also varies depending on the manufacturer and the specific product. However, most jumper wires have a gauge of around 22 AWG.

Q5: What materials are used to make a Jumper Wire 10Pin Dual-Female?

A: Jumper wires are typically made with stranded copper wire and insulated with PVC or other materials. The connectors are usually made of plastic or metal, such as brass or nickel-plated brass.

Q6: What are the advantages of using a Jumper Wire 10Pin Dual-Female?

A: One advantage of using a Jumper Wire 10Pin Dual-Female is that it allows for easy and quick connections between electronic components or circuits. They can also be used to connect components that are not physically close to each other or to create a temporary connection for testing purposes.

Q7: Can Jumper Wire 10Pin Dual-Female be used in high-voltage applications?

A: Jumper wires are typically designed for use in low-voltage applications, such as those found in electronic devices. They are not typically designed for use in high-voltage applications, and using them in such applications could be dangerous.

Q8: Can Jumper Wire 10Pin Dual-Female be used for data transfer?

A: Jumper wires are not typically designed for use in data transfer applications, as they do not have the necessary shielding or other features that are typically required for reliable data transmission.

Q9: Can Jumper Wire 10Pin Dual-Female be used for permanent installations?

A: Jumper wires are not typically designed for use in permanent installations, as they are intended for temporary connections between electronic components or circuits. For permanent installations, it is generally recommended to use more robust and reliable wiring solutions.

Q10: Can Jumper Wire 10Pin Dual-Female be cut to a shorter length if needed?

A: Yes, Jumper Wire 10Pin Dual-Female can be cut to a shorter length if needed. However, it is important to ensure that the wire is cut cleanly and that the connectors are properly crimped or otherwise attached to the wire to ensure a reliable connection.
