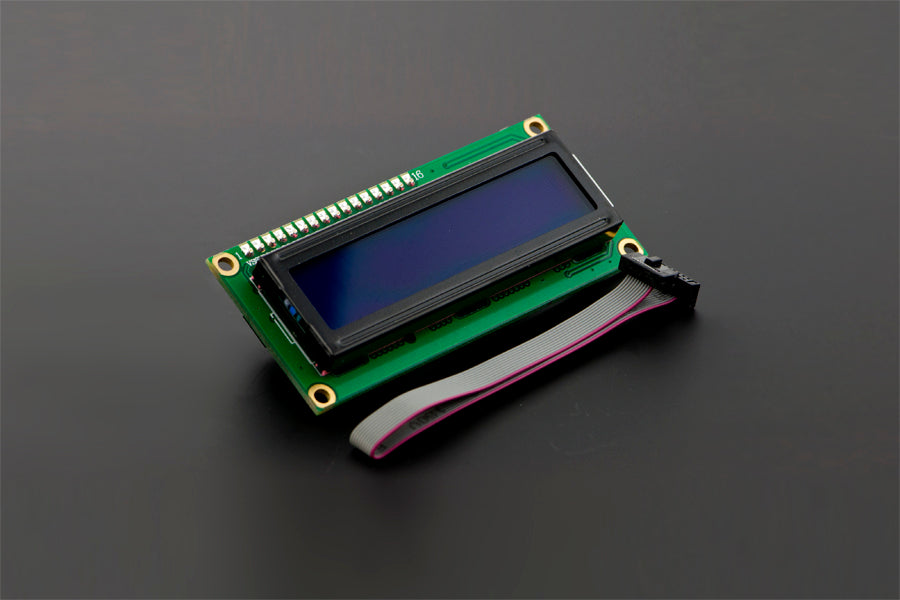

LCD IIC 1602(Arduino Compatible)

This is another great LCD display compatible with Gadgeteer modules from DFRobot. With limited pin resources, your project will quicly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C)to display the information.If you already have I2C devices in your project, this LCD module actually cost no more resources at all. The adress can be set from 0x20-0x27.Fantastic for Arduino or gadgeteer based projects.

  • Last update: V1.2:
  • IIC connector:  VCC, GND, SCL, SDA
  • I2C Address:0x20-0x27(0x20 default)
  • Back lit (Blue with white char color)
  • Supply voltage: 5V
  • Interface:I2C/TWI x1,Gadgeteer interface x2
  • Adjustable contrast
  • Size:82x35x18 mm (3.2x1.4x0.7 in)

  • Wiki
  • Schematic
  • HD44780 LCD datasheet
  • Please install the LiquidCrystal I2C library by Frank de Brabander from the Arduino Library Manager (go to Sketch->Include Library->Manage Libraries to open the Library Manager).
