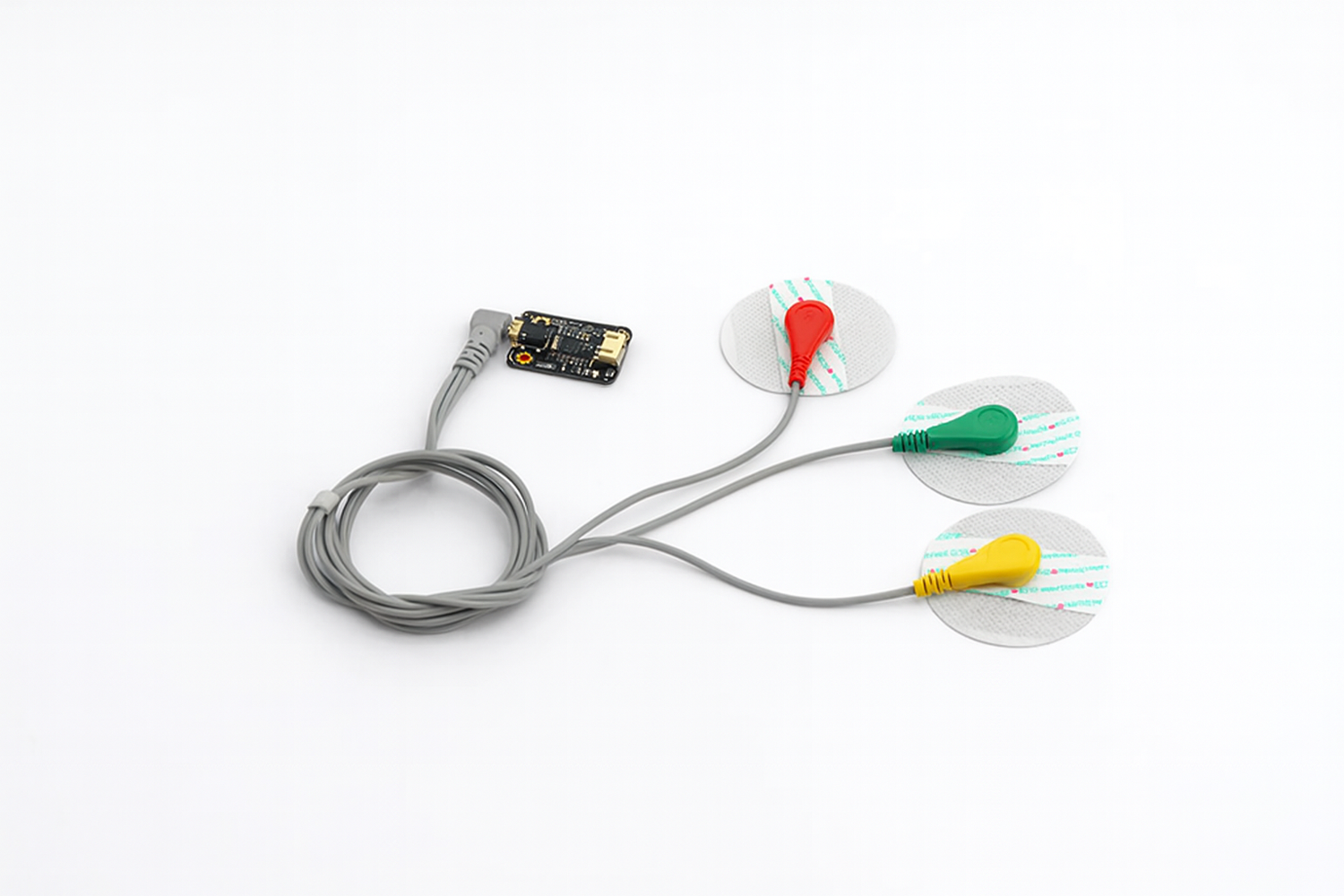

Add Reliable Heart Rate Monitor Sensor Gravity Sensing to Your Next Build
The DFRobot Gravity Heart Rate Monitor Sensor measures the electrical activity of the heart, allowing you to record and visualize ECG (electrocardiogram) signals. Built with the AD8232 chip, it delivers a clean, amplified signal from PR and QT intervals, reducing noise for more accurate readings.
Using the Arduino IDE's Serial Plotter, you can view real-time ECG waveforms directly on your PC — perfect for biomedical projects, health monitoring systems, or educational demonstrations.
Important: Use the official DFRobot links below for wiring, sample code, downloads, and the latest setup notes for this SKU.
Why you'll love it
- Input Voltage: 3.3–6V (5V recommended)
- Output Voltage: 0–3.3V
- Operating Current: <10mA
- Dimensions: 35 × 22mm (1.378" × 0.866")
- Interface: PH2.0-3P
- 1x Heart Rate Monitor Sensor
What you can build
This part fits monitoring, measurement, logging, alarms, and automation builds. It works well in Arduino, ESP32, and Raspberry Pi style projects where you need reliable real-world data from the heart rate monitor sensor gravity.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus sensor cables, headers, or a matching expansion shield for faster setup.
Recommended add-ons
Useful add-ons include displays, data logging modules, waterproof enclosures, and matching Gravity cables or sensor shields.
Technical specifications
| Product | Heart Rate Monitor Sensor Gravity |
|---|---|
| SKU | SEN0213 |
| Brand | DFRobot |
| Input Voltage | 3.3–6V (5V recommended) |
| Output Voltage | 0–3.3V |
| Operating Current | <10mA |
| Dimensions | 35 × 22mm (1.378" × 0.866") |
| Interface | PH2.0-3P |
Pinout & usage notes
Check the supported input voltage before wiring so the module matches your controller and power source. Verify serial levels, baud rate, and pin mapping in the official DFRobot guide before first power-up. If you are using Gravity connectors, align the plug correctly and avoid forcing the cable into the wrong header.
DFRobot resources
Official product page: View on DFRobot
Wiki / documentation: Open DFRobot wiki
What’s in the box
1 × Heart Rate Monitor Sensor Gravity
Frequently Asked Questions
Can I use this for logging or monitoring projects? Yes. It is a good fit for data collection, automation, and alert-based builds when paired with a supported controller.
Does it work with other boards too? Often yes, as long as voltage, interface, and pin mapping match. ESP32 and Raspberry Pi users should still check the official docs first.
Where can I find wiring and examples? Use the official DFRobot product page and wiki links below for guides, downloads, and code examples.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
