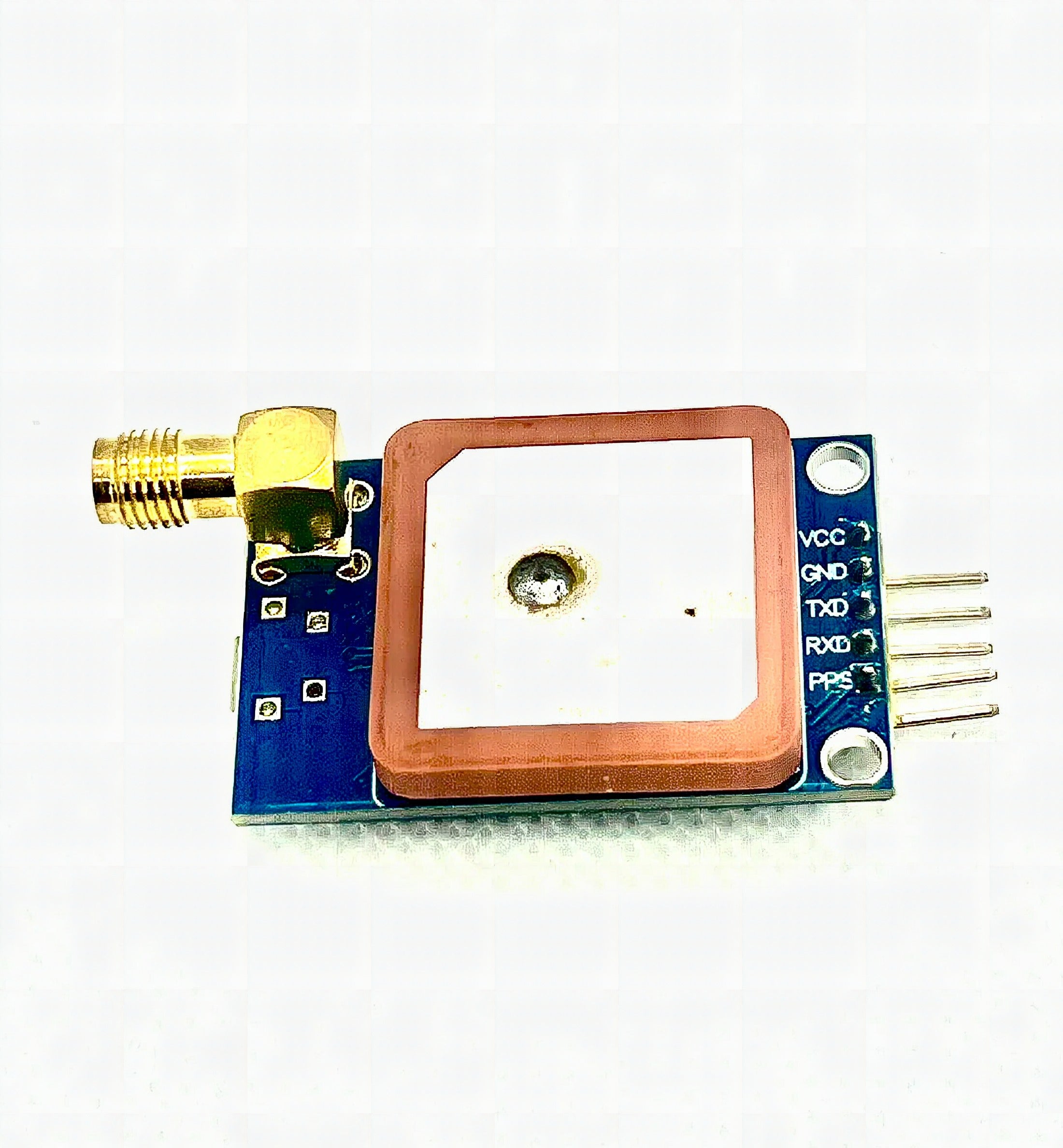

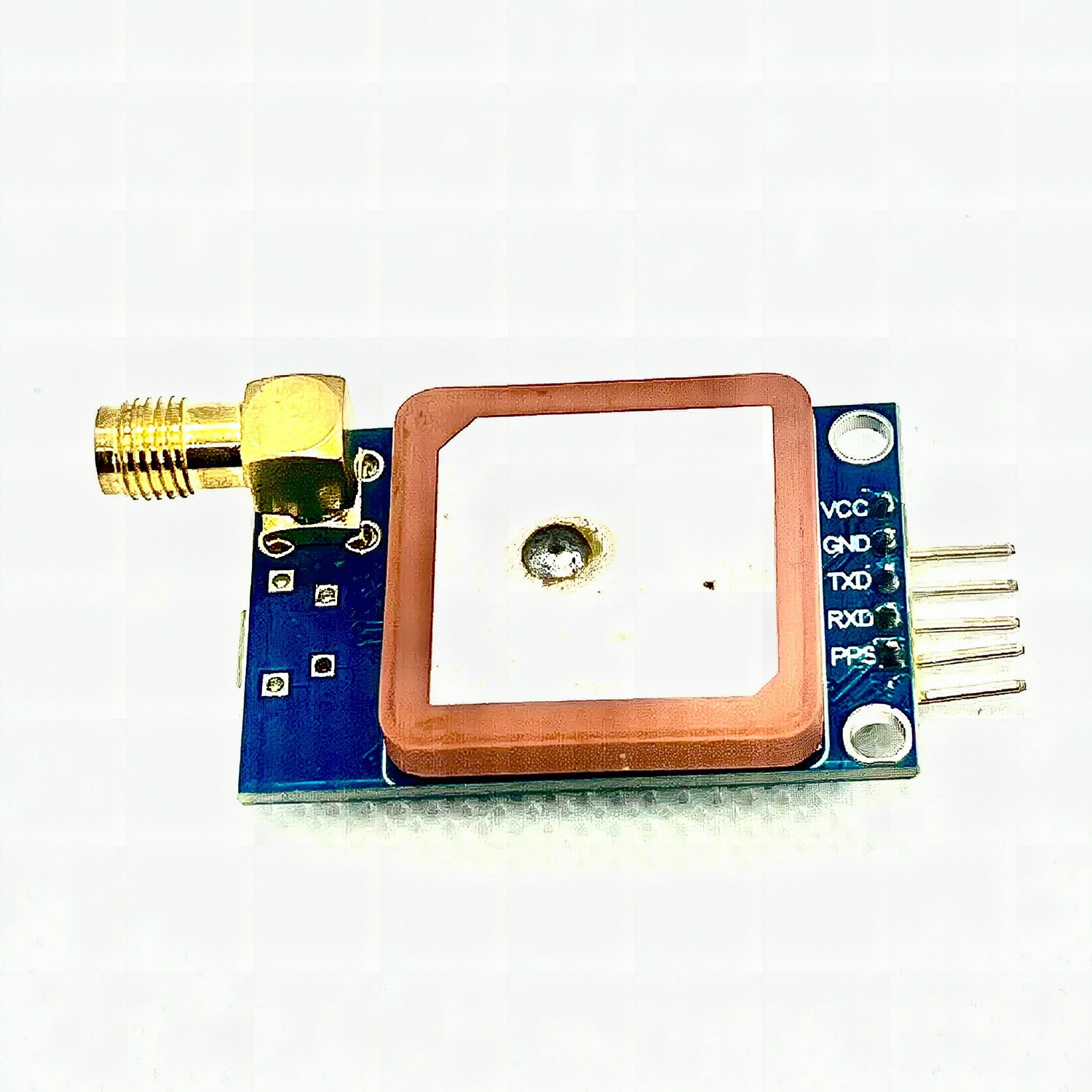

GY-NEO-7M GPS Active Ceramic Antenna Module

The NEO-7M Module + External Antenna and 7M Onboard Antenna with Pin modules offer exceptional GPS performance in compact and robust designs, making them perfect choices for your navigation and tracking needs.

The NEO-7M Module + External Antenna module features the reliable NEO-6M GPS engine, which ensures fast and accurate positioning. With a module size of 35.8mm by 25.6mm and weighing just 17g, it’s an ideal solution for applications where space and weight are at a premium. Paired with an external antenna measuring 28.3mm by 28.3mm, this module provides excellent signal reception, even in challenging environments.

The7M Onboard Antenna with Pin module, on the other hand, is a highly efficient GPS solution that offers great flexibility without an onboard antenna. This module is slightly larger, with a size of 38.9mm by 25.2mm and a weight of 18g, making it perfect for applications where space is available, but an external antenna is needed to optimize signal reception. Powered by the advanced NEO-7M GPS engine, this module ensures enhanced performance and faster acquisition times, delivering precise GPS data quickly and reliably for your navigation or tracking projects.

Both modules are designed for easy integration into various projects, offering robust GPS capabilities with low power consumption. The NEO-7M Module + External Antenna, with its external antenna, is perfect for scenarios where maximizing signal strength is crucial, while the 7M Onboard Antenna with Pin provides the flexibility to connect an external antenna based on your specific needs. Whether you need a GPS module for a drone, a vehicle tracking system, or any mobile application, these modules provide the accuracy, reliability, and ease of use to meet your project’s demands.

Specifications:

NEO-7M Module + External Antenna:

Module Size: 35.8mm*25.6mm
Antenna Size: 28.3mm*28.3mm
GNSS Engine: u-blox 7 GNSS, supporting GPS/QZSS, GLONASS
Channels: 56 channels
Time-To-First-Fix:
- Cold Start: 30s
- Warm Start: 28s
- Hot Start: 1s
- Aided Start: 5s
Sensitivity:
- Tracking & Navigation: -161 dBm
- Reacquisition: -160 dBm
- Cold Start: -147 dBm
- Warm Start: -148 dBm
- Hot Start: -155 dBm
Position Accuracy:
- Autonomous: 2.5m CEP
- SBAS: 2.0m CEP
Interfaces:
- UART
- USB V2.0
- SPI
- I2C (DDC compliant)
Power Supply: 1.65V to 3.6V
Power Consumption:
- Max Supply Current: 67 mA
- Tracking (Continuous Mode): 17 mA
- Power Save Mode (1Hz): 5 mA
Antenna: Supports passive and active antennas
Operating Temperature: -40°C to 85°C

7M Onboard Antenna with Pin:

Weight: 18g
Size: 38.9mm*25.2mm
GNSS Engine: u-blox 7 GNSS, supporting GPS/QZSS, GLONASS
Channels: 56 channels
Time-To-First-Fix:
- Cold Start: 30s
- Warm Start: 28s
- Hot Start: 1s
- Aided Start: 5s
Sensitivity:
- Tracking & Navigation: -161 dBm
- Reacquisition: -160 dBm
- Cold Start: -147 dBm
- Warm Start: -148 dBm
- Hot Start: -155 dBm
Position Accuracy:
- Autonomous: 2.5m CEP
- SBAS: 2.0m CEP
Interfaces:
- UART
- USB V2.0
- SPI
- I2C (DDC compliant)
Power Supply: 1.65V to 3.6V
Power Consumption:
- Max Supply Current: 67 mA
- Tracking (Continuous Mode): 17 mA
- Power Save Mode (1Hz): 5 mA
Antenna: Supports passive and active antennas
Operating Temperature: -40°C to 85°C
