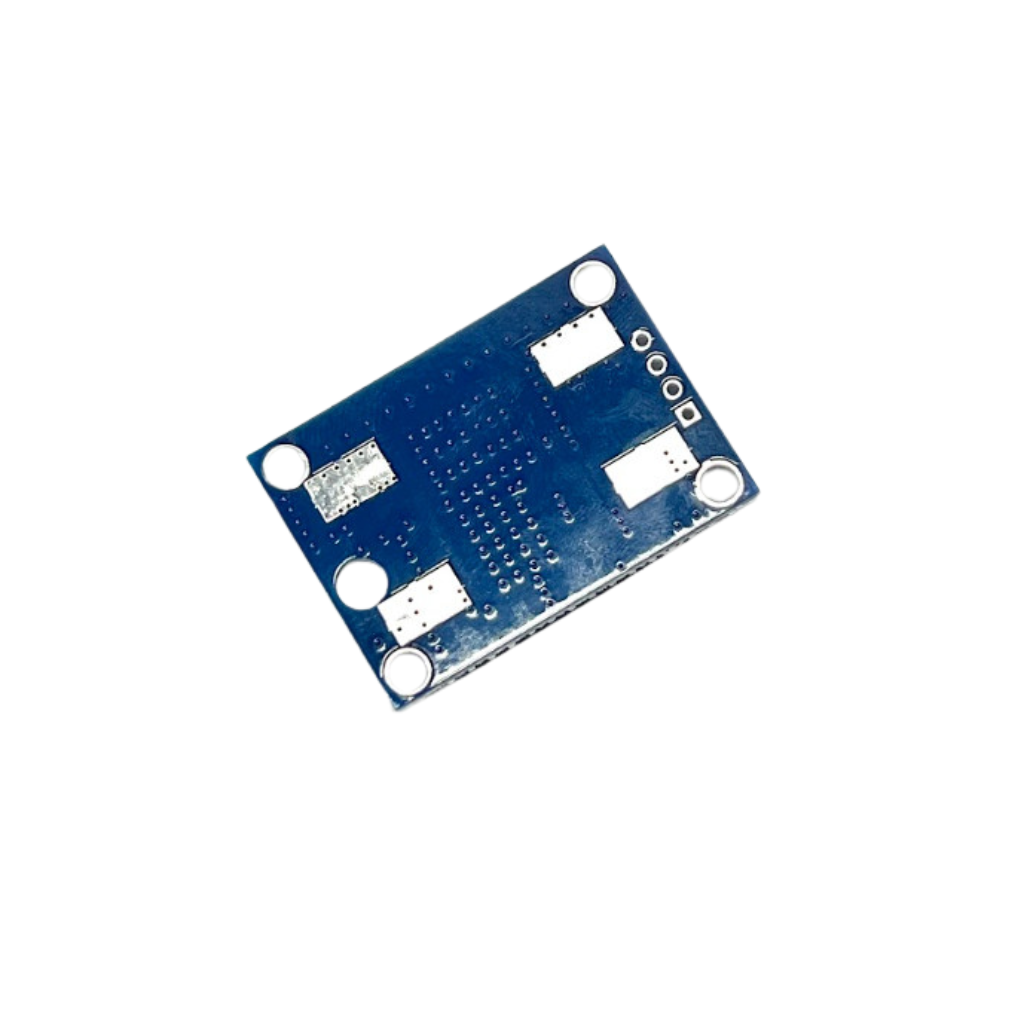

GY-NEO-6M GPS Active Module

The GY-NEO6MV2 GPS module series is a family of high-performance, stand-alone GPS receivers powered by the advanced u-blox 6 positioning engine. Designed to deliver precise and reliable GPS data, this module checks its location on Earth and outputs accurate longitude and latitude coordinates. With the GY-NEO6MV2, you get a complete GPS solution in a compact and efficient package, making it an excellent choice for a wide range of applications, from navigation systems to real-time tracking.

What sets the GY-NEO6MV2 apart is its exceptional tracking capabilities. This module can track up to 22 satellites across 50 channels, achieving industry-leading tracking sensitivity of -161 dB, all while consuming just 45 mA of current. This level of performance ensures that you receive consistent and accurate GPS data even in challenging conditions. Additionally, the module features a small backup battery for hot-start functionality and a built-in EEPROM for saving configuration settings, providing quick and reliable startup times.

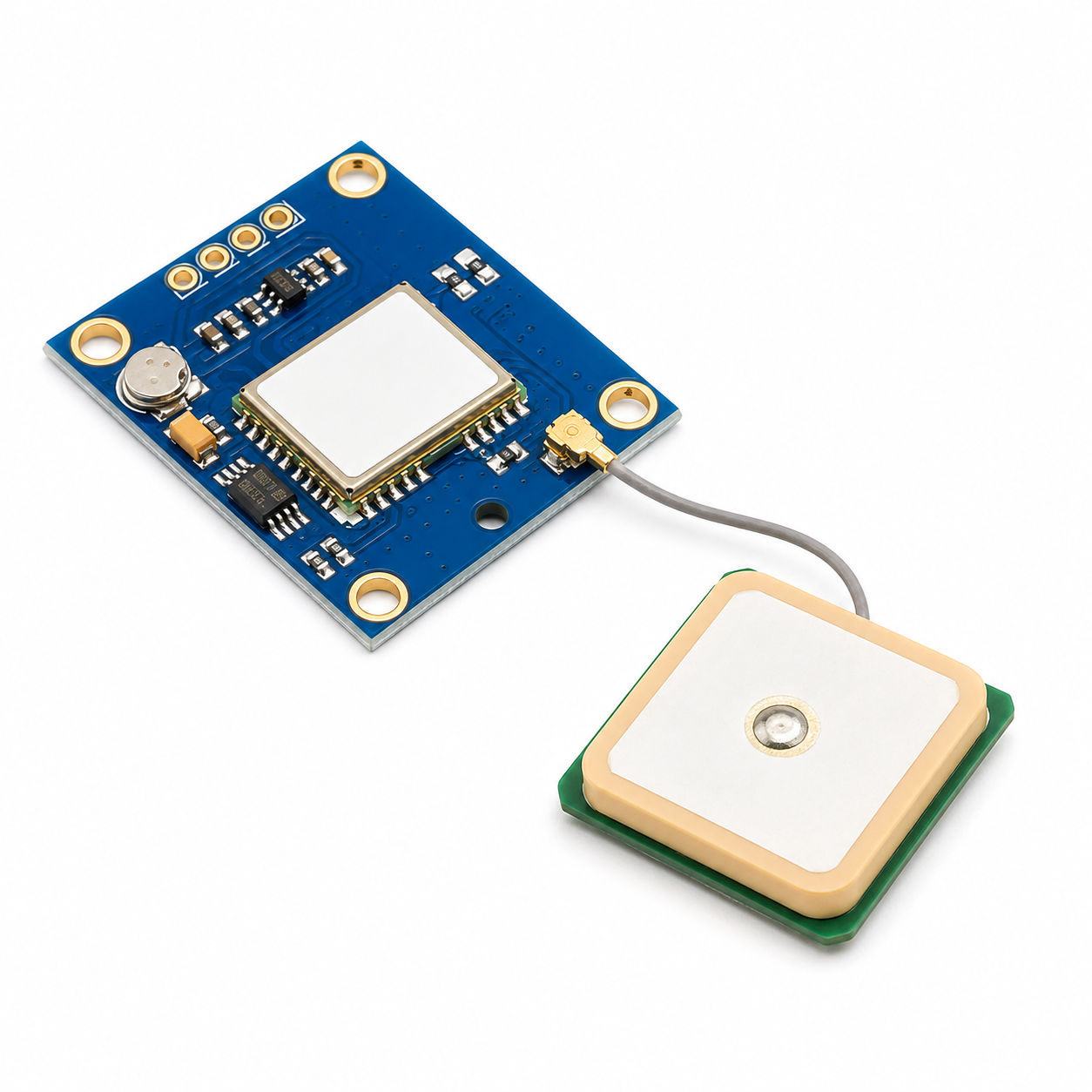

Although the GY-NEO6MV2 does not include an onboard antenna, it offers the flexibility to connect an external antenna via a U.FL connector, allowing you to optimize signal reception based on your specific needs. Its modular design and compact architecture make it ideal for battery-operated mobile devices, where space and power consumption are critical concerns. Whether you're developing a GPS-based project for professional use or as a hobby, the GY-NEO6MV2 GPS module delivers the accuracy, reliability, and ease of integration you need to bring your ideas to life.

Features:

Based on: u-Blox NEO-6M GPS module
Compatibility: Works with APM2.0, APM2.5, and other flight controller boards
Reception: Navigate down to –162 dBm, –148 dBm cold start
Configuration: EEPROM for saving settings, faster acquisition with AssistNow Autonomous
Power Management: Configurable power options
Technology: Hybrid GPS/SBAS engine, anti-jamming, compatible with u-Blox GPS Solution for Android
A-GPS: AssistNow Online/Offline, OMA SUPL compliant
Time-To-First-Fix: Cold Start 32s, Warm Start 23s, Hot Start <1s
Interface: UART output, options for SPI, I2C, USB with soldering

Specifications:

Weight: 5g
Size: 35.8mm*25.6mm
GNSS Engine: 50-channel u-blox 6
Sensitivity:
- Tracking: –161 dBm
- Cold Start: –147 dBm
- Hot Start: –156 dBm
Time-To-First-Fix:
- Cold Start: 27s
- Aided Start: <3s
- Hot Start: 1s
Position Accuracy:
- Standard: 2.5m CEP
- SBAS: 2.0m CEP
Interfaces:
- UART
- USB V2.0
- I2C (DDC compliant)
- SPI
Power Supply: 2.7V – 3.6V
Power Consumption:
- Continuous: 111 mW @ 3.0V
- Power Save Mode: 33 mW @ 3.0V (1 Hz)
Backup Power: 1.4V – 3.6V, 22 µA
Operating Temperature: –40°C to 85°C
Protocols: NMEA, UBX binary, RTCM
