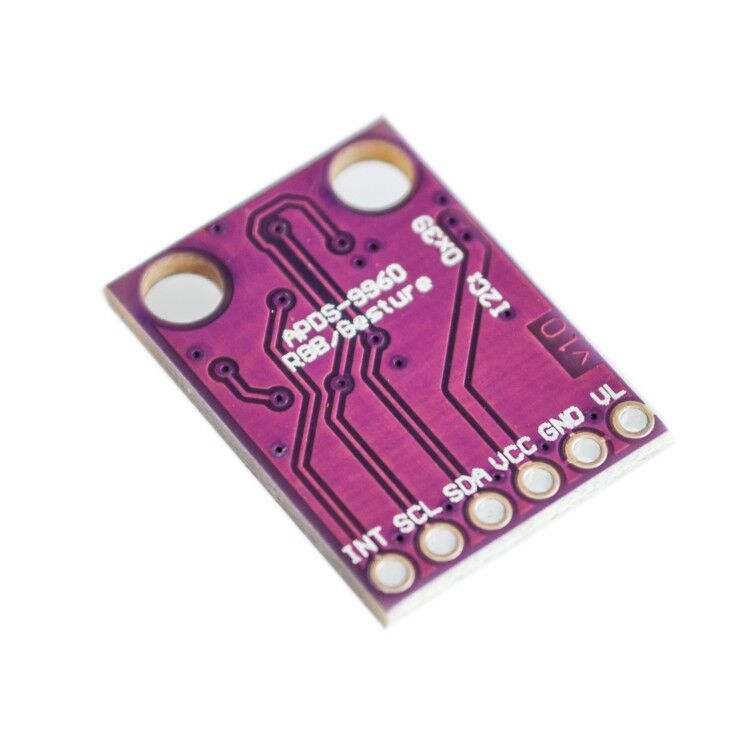

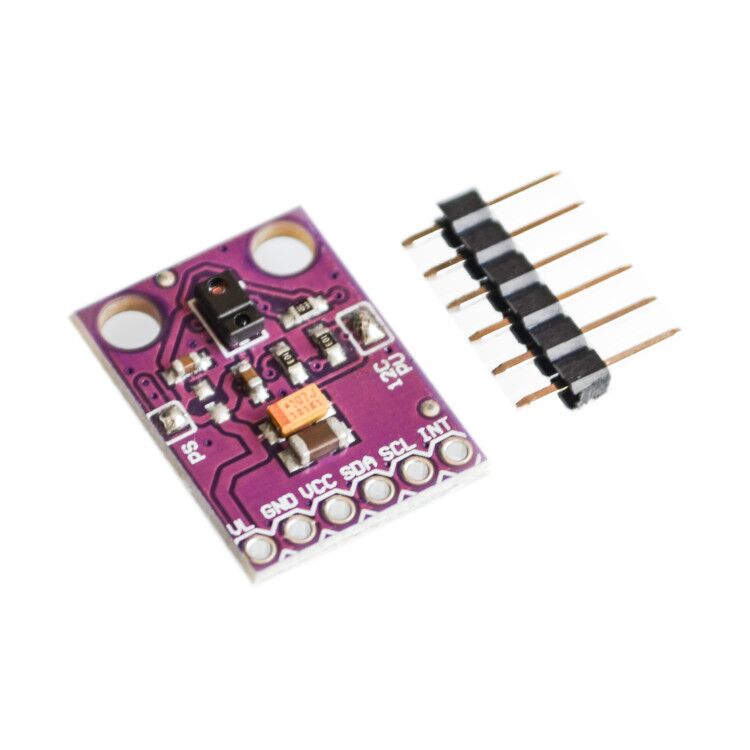

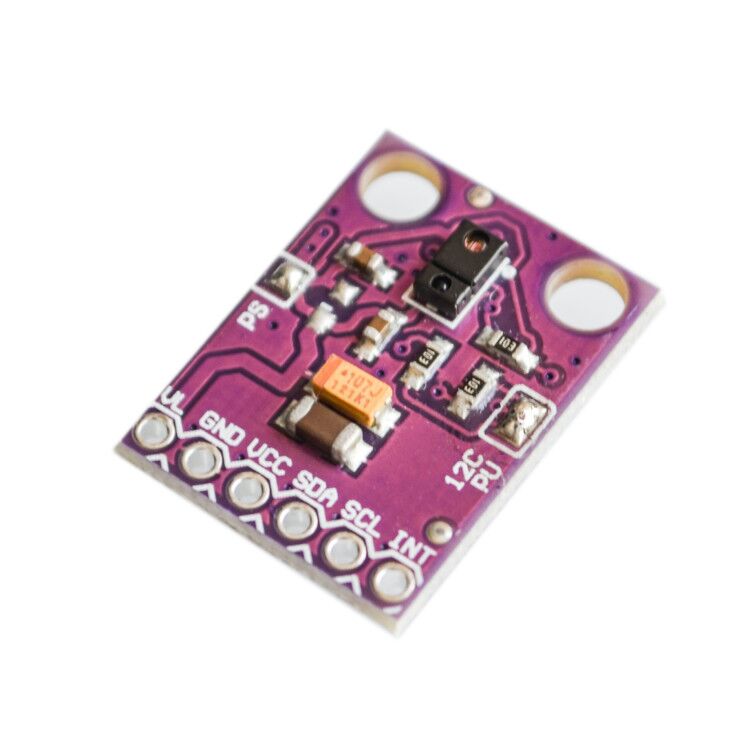

Measure Light and Optical Changes with a Compact Sensor
The Gesture and RGB Sensor APDS 9960 is a gesture sensor designed for light logging, optical switching, line tracking, and brightness-aware projects. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Detecting range: 100mm(3.94"); Operating Voltage: 3.3-5V; Interface: I2C.
Why you’ll love it
- Interrupt pin x1: Interrupt pin x1
- Sensing range: 100mm(3.94")
- Power range: 3.3-5V
- Compact size: 18.3x16.4mm(0.72x0.65")
- Easy wiring: I2C
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Gesture and RGB Sensor APDS 9960 | gesture sensor | Current item |
| Adafruit APDS9960 Proximity, Light, RGB, and Gesture Sensor - STEMMA QT / Qwiic | gesture sensor with I2C | STEMMA QT connector, Qwiic connector |
| Color RGB Sensor with IR filter and White LED TCS34725 | infrared proximity sensor with digital output | model TCS34725 |
| Adafruit LTR390 UV Light Sensor - STEMMA QT / Qwiic | light sensor with I2C | STEMMA QT connector, Qwiic connector |
What you can build
This sensor is a good fit for automatic brightness control, line followers, light meters, UV monitors, flame detection, and optical encoders.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus an I2C cable or jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include I2C cables, pull-up friendly boards, OLED displays, and logging modules, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Gesture and RGB Sensor APDS 9960 |
|---|---|
| Detecting range | 100mm(3.94") |
| Operating Voltage | 3.3-5V |
| Module size | 18.3x16.4mm(0.72x0.65") |
| Interface | I2C |
| Category | optical light imaging photon sensors |
Wiring & usage notes
Connect VCC, GND, SDA, and SCL to your controller. Use the correct board voltage and I2C address in your code.
What’s in the box
1 × Gesture and RGB Sensor APDS 9960
Frequently Asked Questions
What does the Gesture and RGB Sensor APDS 9960 measure?
It is designed to measure hand motion, proximity, or color changes.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this I2C sensor?
This version uses I2C, so you usually connect VCC, GND, SDA, and SCL.
What affects accuracy?
Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
