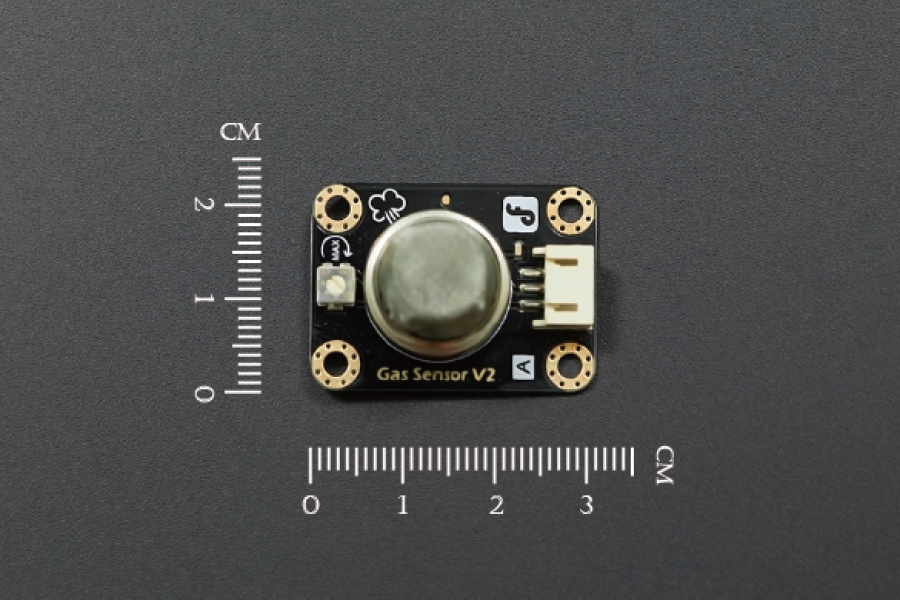

Gas Sensor MQ6 Analog Propane For Arduino

The MQ6 is a simple-to-use liquefied petroleum gas (LPG) sensor. It can be used in gas leakage detecting equipment in consumer and industry applications,this sensor is suitable for detecting LPG, iso-butane, propane, LNG. Avoid the noise of alcohol, cooking fumes and cigarette smoke. The sensitivity can be adjusted by the potentiometer.



SPECIFICATION

• Power supply needs: 5V

• Interface type: Analog

• Pin Definition:  1-Output  2-GND  3-VCC

• High sensitivity to LPG, iso-butane, propane

• Small sensitivity to alcohol, smoke

• Fast response

• Stable and long life

• Simple drive circuit

• Size: 40x20mm

DOCUMENTS

• Wiki Doc

• MQ6 datasheet

• Schematic
