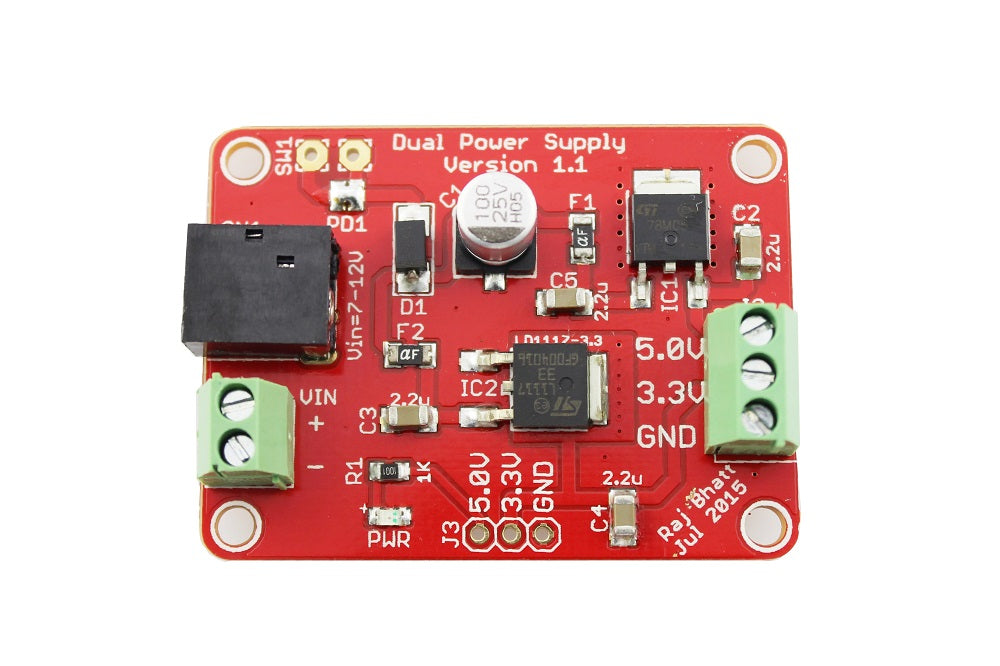

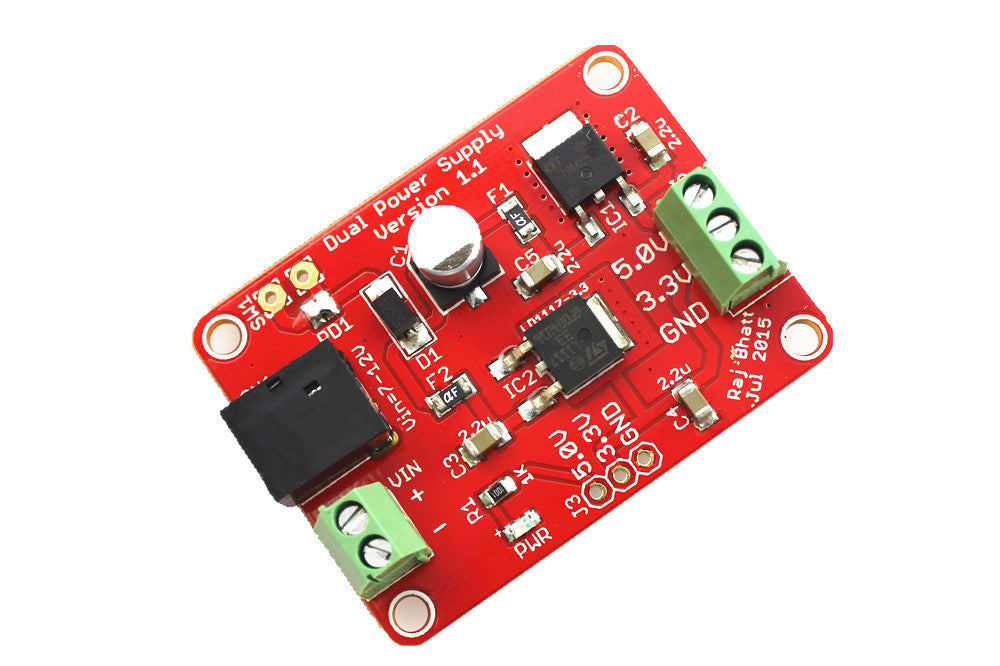

All electronics projects require power supply. This is a dual-voltage power supply board that provides fixed 3.3V and 5.0V outputs from an unregulated DC input ranging from 7-12V. With its small size (1.8" X 1.4"), it can be easily enclosed inside a project box along with your project circuit. It uses LM78M05 and LD1117-3.3V fixed voltage regulator chips that are both capable to deliver 500mA of output current. The unregulated DC input is provided through a 2-pin terminal block or 2.1mm DC barrel. The fixed output voltages are accessible through a 3-pin terminal block.
Features
- Fixed +5.0V and +3.3V output
- Maximum output current 500 mA for 5.0V and 3.3V separately
- On-board PTC Fuse (500 mA) for both regulators chips
- Through-hole pads onboard to connect an external ON/OFF switch
- 500mA output capability for both 3.3V and 5.0V
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
