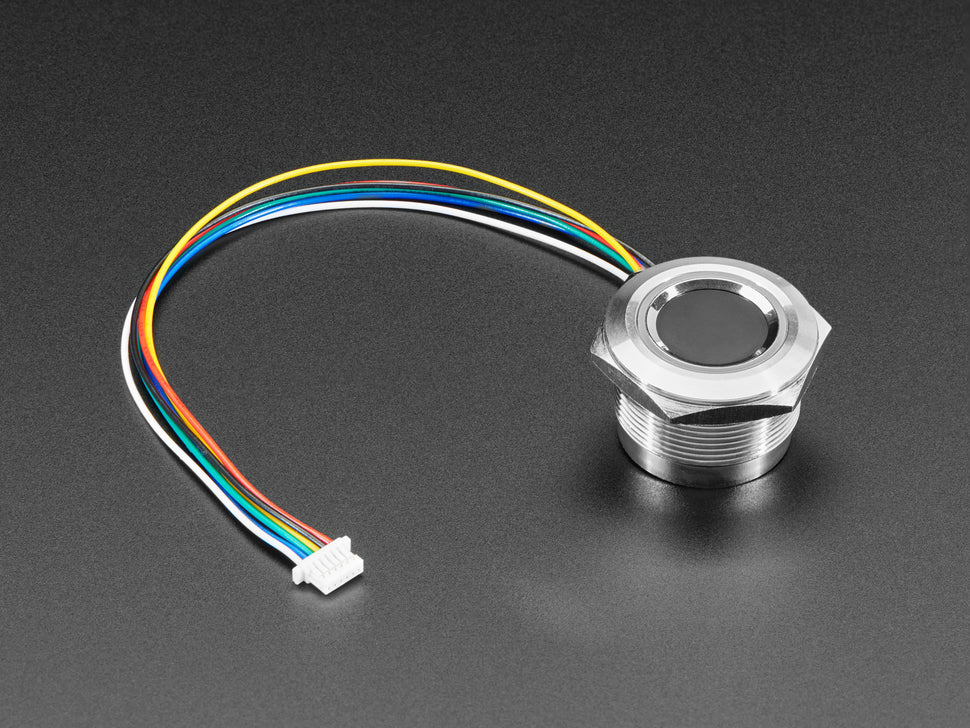

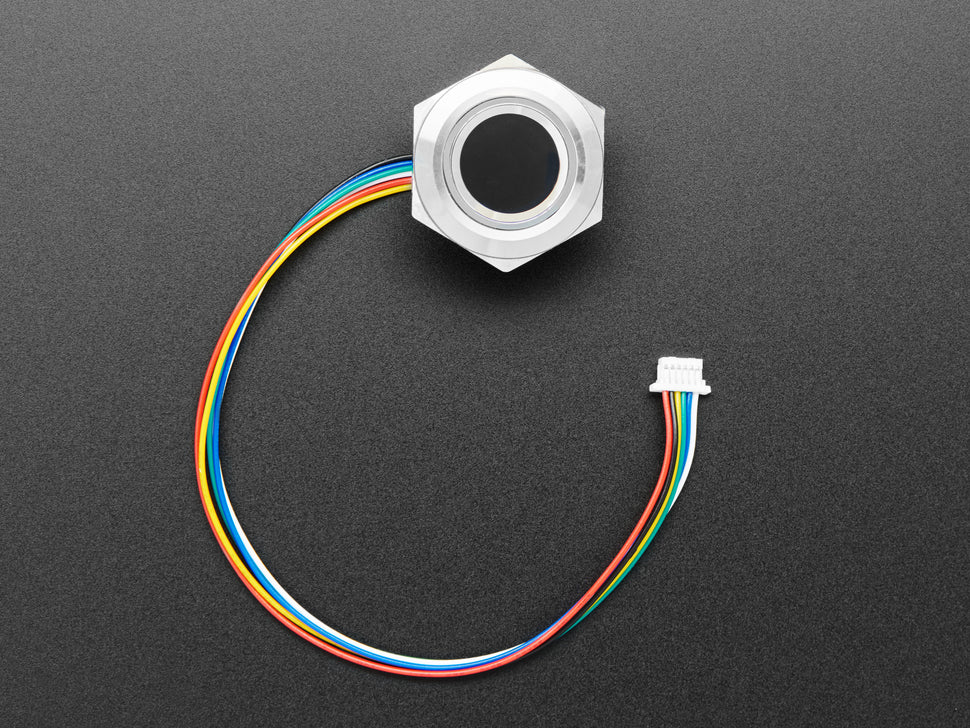

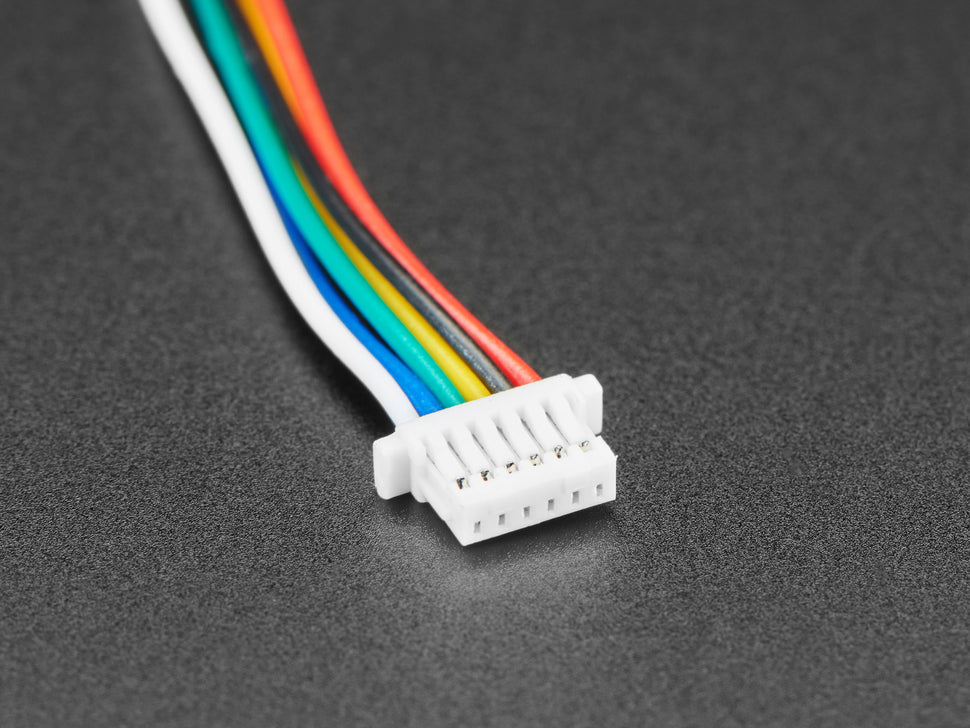

R503 New Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner

R503 New Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner

Frequently Asked Questions

What is a capacitive fingerprint scanner?

A capacitive fingerprint sensor works by discharging energy only where your fingertip patterns hit a screen of small capacitors. The fingerprint pattern can then be traced using an arrangement of thousands of capacitors. These sensors can occasionally handle swipes or force detection as well.

What is a fingerprint sensor module?

To confirm identification, the fingerprint sensor module is used. Electronic door locks, access control systems, security safes, laptops, mobile phones, and other devices are just a few examples where it is frequently used.

How does a fingerprint scanner work?

A light-sensitive microchip, such as a CCD, charge-coupled device, or CMOS image sensor, is used by the scanner to create a digital picture. Automatic picture analysis by the computer recovers simply the fingerprint, which is then converted into a code using advanced pattern-matching software.

What is the working principle of the capacitive level sensor?

The capacitance change of a capacitor serves as the foundation for the capacitive level measuring principle. The amount of product in the tank affects the capacitance of a capacitor made up of the sensor and the tank wall: A tank's capacitance is lower for an empty tank and higher for a loaded tank.

Why are fingerprint scanners used?

To increase safety and security and to quickly identify users, many current IoT applications incorporate fingerprint sensors. Fingerprint sensors are widely used in smartphones and other wearables, as well as in applications for the smart home and smart industrial for data security and entrance identification.

What are the three types of fingerprint scanners?

The four different types of fingerprint scanners are optical, capacitance, ultrasonic, and thermal. Every type of scanner's fundamental job is to capture a picture of a user's fingerprint and look up a match in its database.

R503 New Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner



  1. Integrated image collecting and algorithm chip together, ALL-in-One
  2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have a high recognition rate
  3. The main application areas: can be embedded into a variety of end products, such as access control, attendance, safety deposit box



R503 New Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner

R503 New Circular Round Two-Color Ring Indicator LED Control DC3.3V MX1.0-6pin Capacitive Fingerprint Module Sensor Scanner

Out of stock

Product Code

SKU:AB727

Regular price ₱ 965.00
Regular price Sale price ₱ 965.00
