Build Faster with the Expansion Shield IO for Arduino V7.1:Gravity

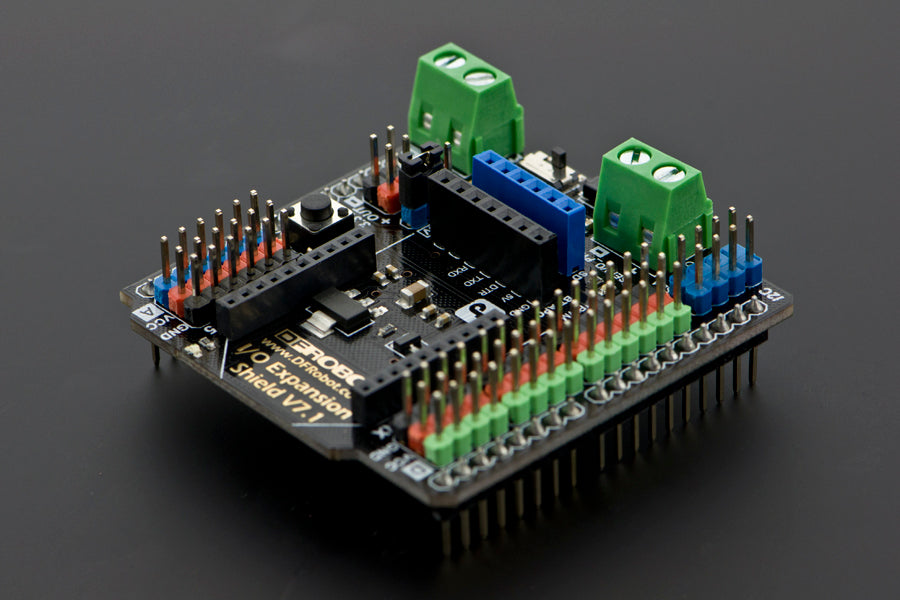

Expansion Shield IO for Arduino V7.1:Gravity Expansion Shield IO for Arduino V7.1: Gravity makes it easier to connect sensors, servos, wireless modules, and common interfaces without messy jumper wiring.
It is useful when you want a cleaner prototyping layout and faster access to power, signal, and common communication ports.
Important: Use the official DFRobot links below for wiring, sample code, downloads, and the latest setup notes for this SKU.
Why you'll love it
- Gravity-style ports: Fast plug-in wiring for many modules
- 3.3V or 5V selector: Better match for mixed-voltage hardware
- Servo power input: Helpful for motion projects
- Wireless module support: Works with XBee, Bluetooth, APC220, and more
- Arduino Due friendly: Broader board support
- Color-coded connectors: Easier port identification
What you can build
This board is a good fit for learning, prototyping, robotics, and controller-based builds. Use it as the main brain for sensors, displays, wireless projects, and classroom or workshop demos.
Starter bundles
A solid starter setup includes a USB cable, breadboard, jumper wires, and a few DFRobot Gravity sensors or an LCD module for quick testing.
Recommended add-ons
Useful add-ons include sensors, displays, shields, breadboards, headers, and enclosures if you are building a complete prototype or classroom kit.
Technical specifications
| Product | Expansion Shield IO for Arduino V7.1:Gravity |
|---|---|
| SKU | DFR0265 |
| Brand | DFRobot |
| Interface | I2C, USB, Bluetooth, SPI |
| Gravity-style ports | Fast plug-in wiring for many modules |
| 3.3V or 5V selector | Better match for mixed-voltage hardware |
| Servo power input | Helpful for motion projects |
| Wireless module support | Works with XBee, Bluetooth, APC220, and more |
| Arduino Due friendly | Broader board support |
| Color-coded connectors | Easier port identification |
Pinout & usage notes
Check the supported input voltage before wiring so the module matches your controller and power source. Use the correct SDA and SCL pins on your controller and make sure the bus voltage is compatible. If you are using Gravity connectors, align the plug correctly and avoid forcing the cable into the wrong header.
DFRobot resources
Official product page: View on DFRobot
Wiki / documentation: Open DFRobot wiki
What’s in the box
1 × Expansion Shield IO for Arduino V7.1:Gravity
Frequently Asked Questions
Is this a good choice for learning and prototyping? Yes. It is well suited for classroom work, hobby builds, quick tests, and project development with common modules and sensors.
Does it work with other boards too? Often yes, as long as voltage, interface, and pin mapping match. ESP32 and Raspberry Pi users should still check the official docs first.
Where can I find wiring and examples? Use the official DFRobot product page and wiki links below for guides, downloads, and code examples.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
// downloads
- Schematic pdf
