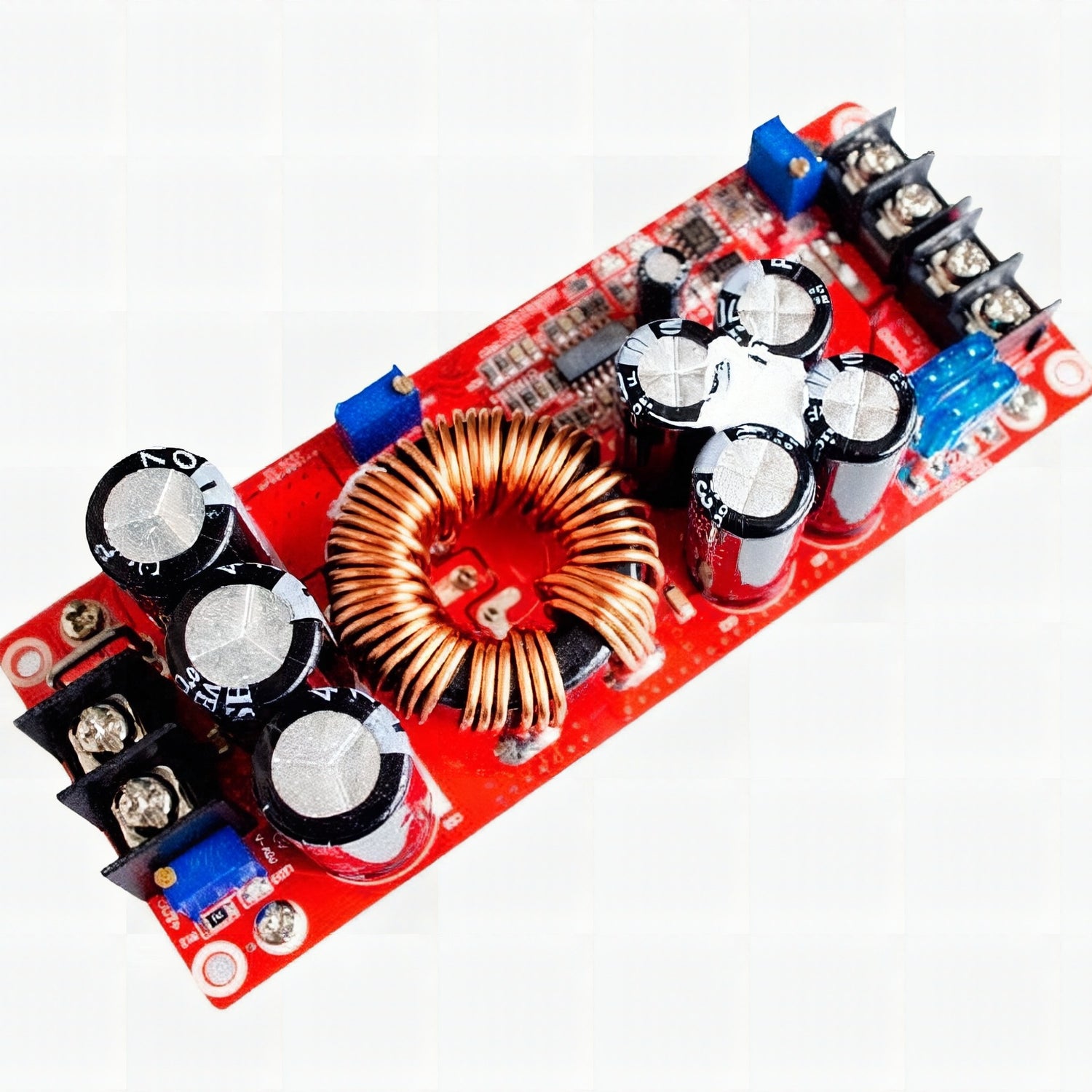

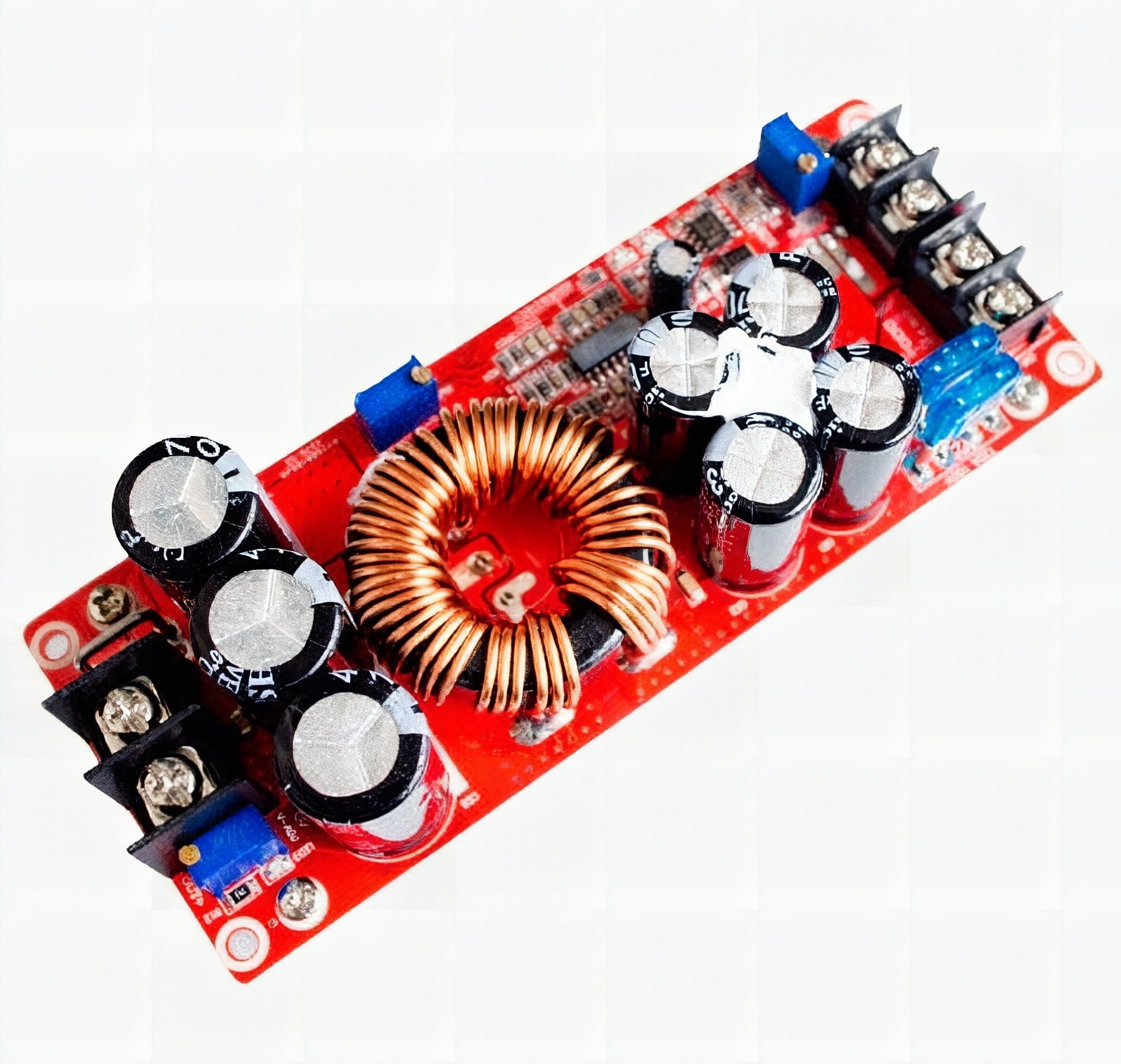

Are you lacking the necessary output voltage from your battery? Well this step up booster might be the answer. It has a whopping output voltage of 83v. Simply wire the input to the terminal and adjust the potentiometer to necessary output voltage.
- Input voltage: 8 to 60V
- Input current: 20A
- Quiescent operating current: 15mA
- Output voltage: 12-83V continuous adjustable
- Output current: MAX 12A over 20A
- Constant current range: 0.3-20A
- Output power: = input voltage *10A
- Working temperature: -40~+85 degrees
- Working frequency: 150KHz
- Conversion efficiency: ≤95% (efficiency and input, output voltage, current, pressure difference)
- Module size LxWxH: 130 x52 x 46
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
