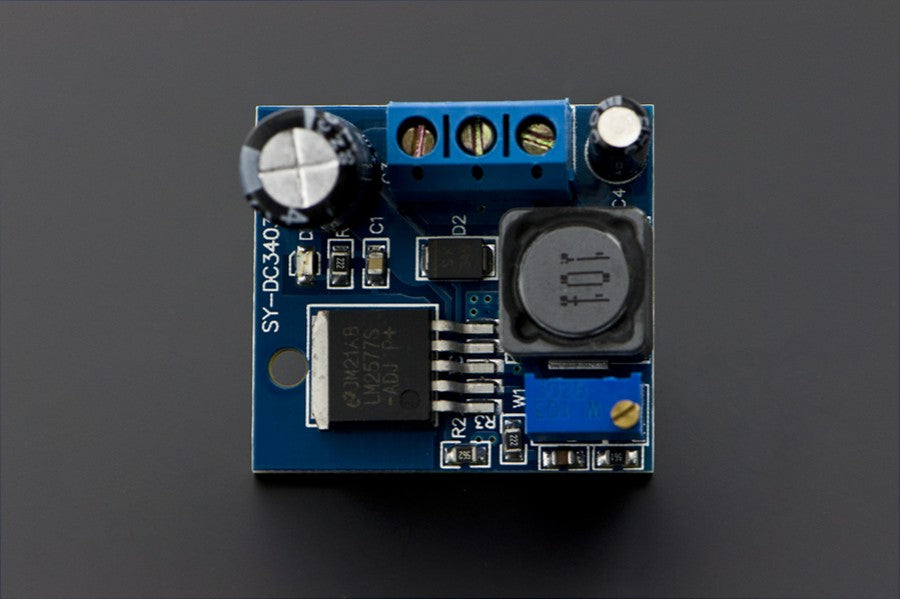

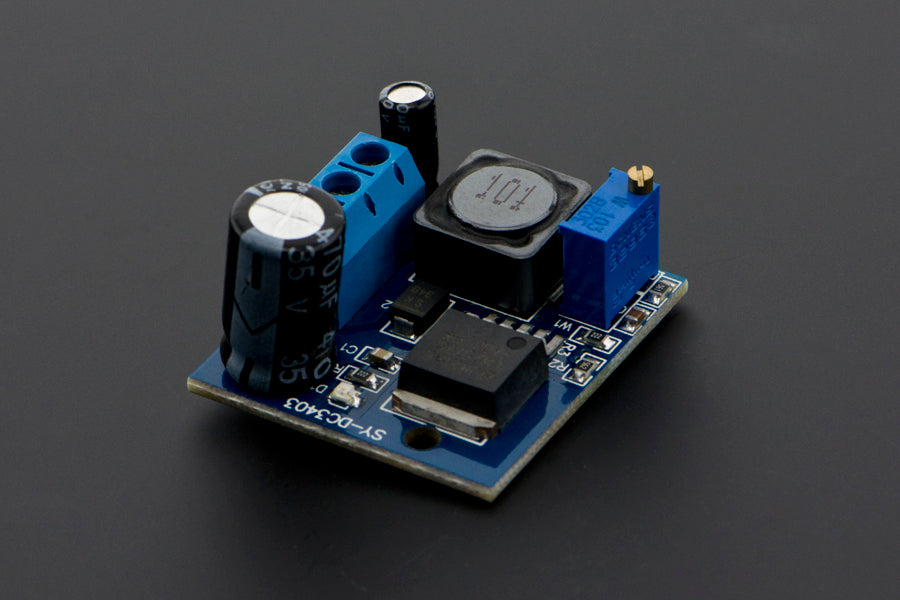

DC DC Boost Multipurpose Converter LM2577 3.7V to 34V

DC-DC Boost Converter. This is a multipurpose boost converter, a breakout board. The supply voltage is as low as 3.7v and it boosts to as high as 34v.

With this module, you can now power your Arduino with our 3.7V LiPo battery or use it to regulate any other project.

The tiny form factor and its simplicity make it a very nice addition for all projects requiring an extra power module.

NOTE:

This board does not have reverse polarity protection, so please be sure to recognize the polarity of your connections!

The input voltage must be less than the output voltage, otherwise, it may damage the board.

 SPECIFICATION

• Input voltage: 3.7-34V

• Output voltage: 3.7-34V

• Max input current: 3A

• Max Power:15W

• Efficiency: 90%

• Size: 32x34x20 mm

DOCUMENTS

• LM2577 Datasheet

SHIPPING LIST

• DC-DC boost converter x1
