Have you ever thought of making a DIY power bank, or even create a power supply for your microcontroller, as well as the modules connected to it?

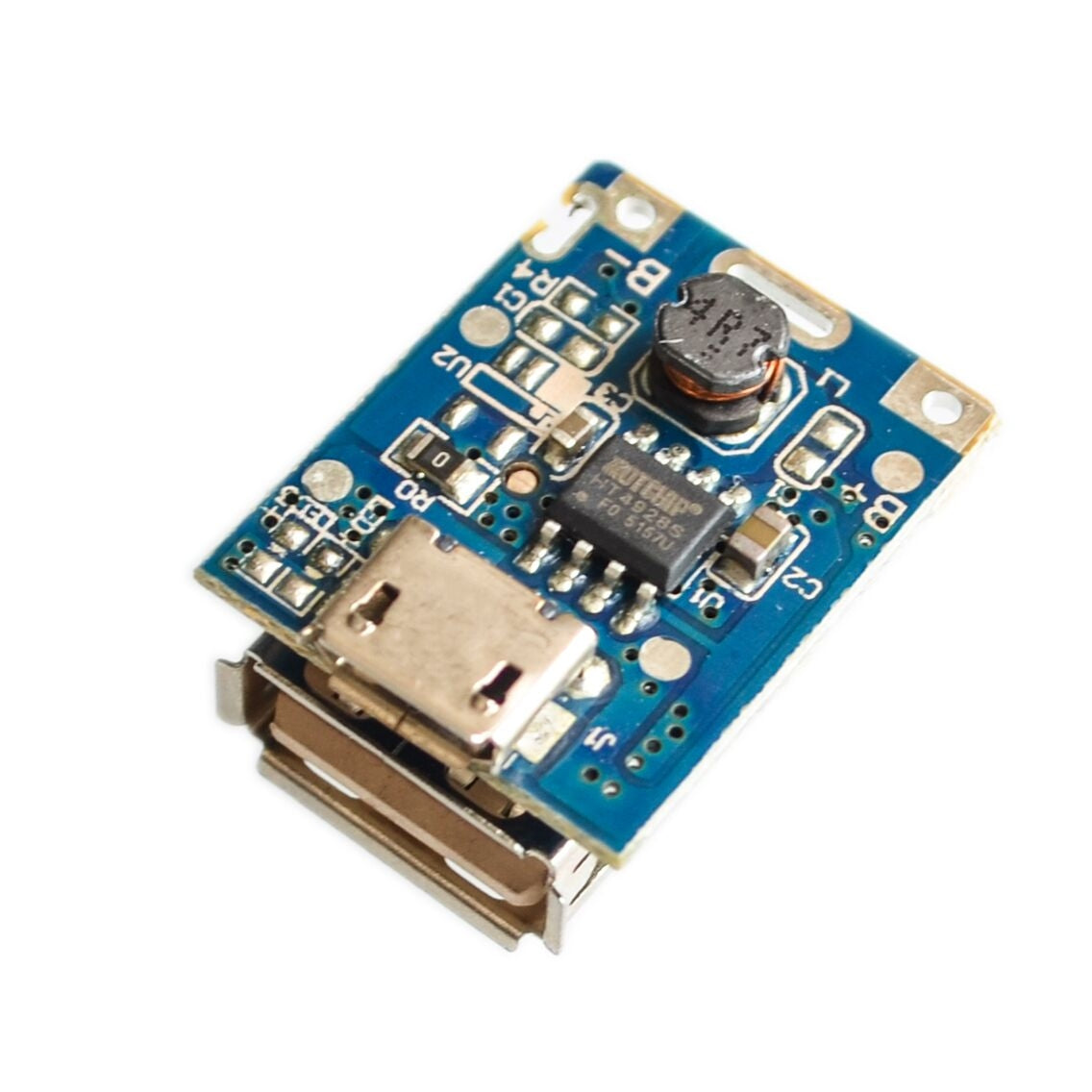

This 134N3P Charging module has an output of consistent 5V with an input voltage ranging from 3.7V to 5.5V. This module has a built-in MOS for charging and discharging. It has an output current of 1A. The module stops the dispensing power if the input voltage reaches 2.9V. It has a discharge efficiency of 85% with 3.7V input.

It has a maximum of 8µA standby current. It has an over-temperature, overvoltage, overload, and short circuit, as well as overcharging and over-discharging protection. It supports trickle mode, keeping your battery from draining, by charging it equal to its discharge rate. It also supports zero voltage charging.

It could operate in places with temperatures ranging from -30°C to 85°C.

In the ever-evolving world of electronics, the ability to efficiently convert and manage power is crucial. Among the various components that serve this purpose, the DC-DC 5V Boost Charging Module (model 134N3P) stands out as a versatile and valuable tool for hobbyists and professionals alike.

Here, we will delve into the features, applications, and benefits of this innovative module.

What is a Boost Charging Module?

A boost charging module is designed to step up (or boost) a lower input voltage to a higher output voltage. The DC-DC 5V Boost Charging Module takes input voltages ranging from 3V to 5V and boosts it to a stable 5V output. This capability makes it particularly useful for powering devices that require a consistent 5V supply, such as microcontrollers, sensors, and other low-power electronics.

Key Features of Boost Charging Module

• Wide Input Voltage Range: The module operates effectively within a range of 3V to 5V. This flexibility allows users to power the module from various sources, including lithium-ion batteries, USB power banks, or even solar panels.
• High Efficiency: One of the standout features of the 134N3P module is its efficiency rate, which can reach up to 95%. This means less wasted energy, making it an excellent choice for battery-powered applications where maximizing battery life is essential.
• Compact Size: The module is designed to be small and lightweight, making it easy to integrate into various projects without taking up too much space. Its compact form factor is ideal for portable devices and embedded systems.
• Overcurrent Protection: Safety is paramount in electronic design, and this module includes built-in overcurrent protection. This feature helps prevent damage to both the module and the connected devices, making it a reliable option for various applications.
• Adjustable Output: Some variants of this module offer adjustable output voltage, allowing users to fine-tune the output according to their specific requirements. This feature is particularly useful for projects that require precise voltage levels.

Applications of Boost Charging Module

The versatility of the DC-DC 5V Boost Charging Module opens the door to numerous applications:

• Portable Devices: Ideal for powering portable gadgets like Arduino projects, Raspberry Pi, and wearable technology where a stable 5V supply is necessary.
• Battery Management Systems: The module can be integrated into battery management systems to ensure efficient power delivery and charging of lithium-ion or lithium-polymer batteries.
• LED Lighting: Used in LED lighting applications where a consistent voltage is required for optimal performance and brightness.
• Sensor Projects: Perfect for powering various sensors in IoT applications, ensuring that they receive a stable voltage for accurate data collection.

Conclusion

The DC-DC 5V Boost Charging Module (134N3P) is an essential component for anyone involved in electronics. Its ability to efficiently boost lower voltages to a stable 5V output, combined with its compact design and safety features, makes it a go-to choice for a wide range of applications.

Whether you’re a hobbyist working on a DIY project or a professional developing complex electronic systems, this module can help streamline your power management needs. Embrace the power of efficient voltage conversion and take your projects to the next level with the DC-DC 5V Boost Charging Module!
