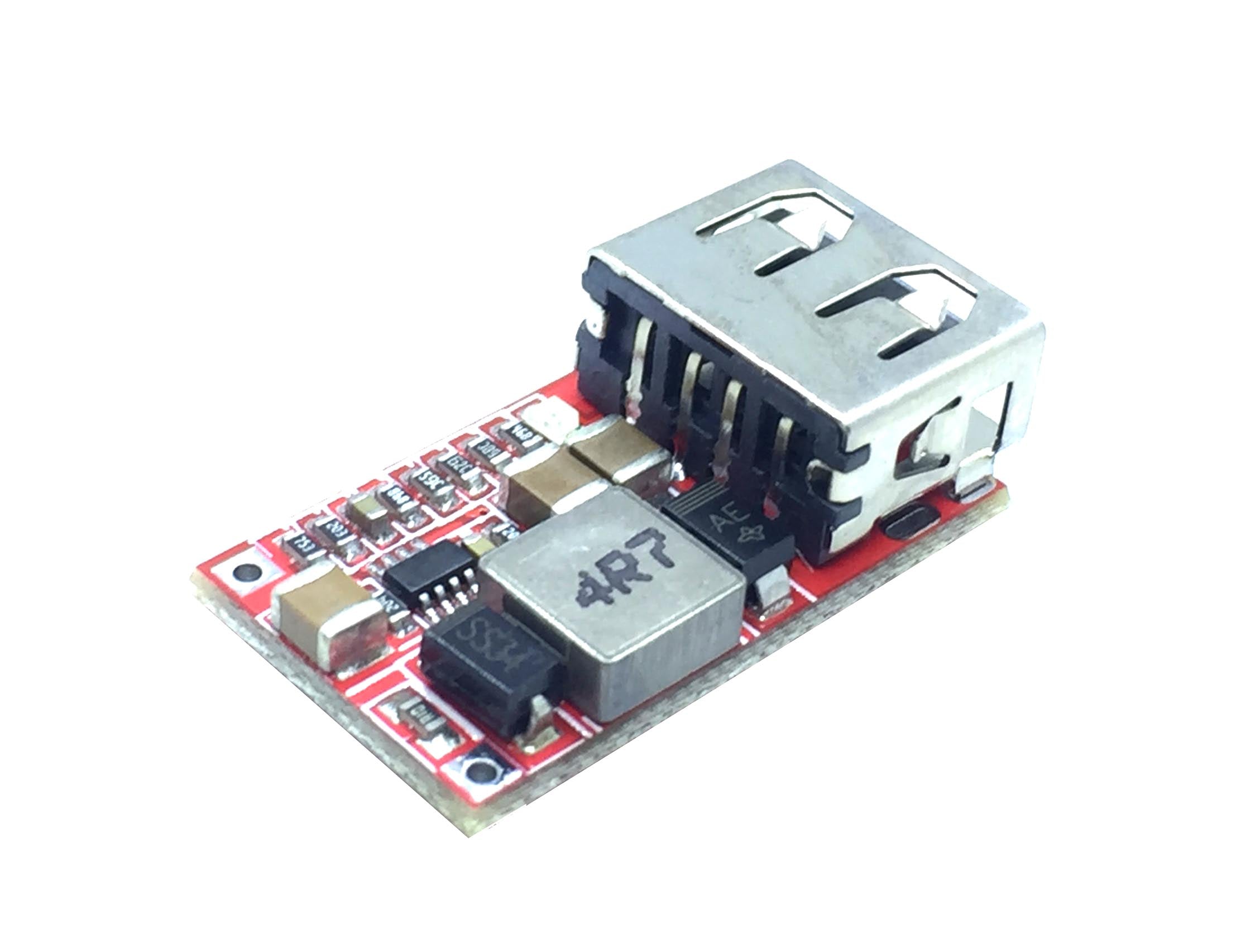

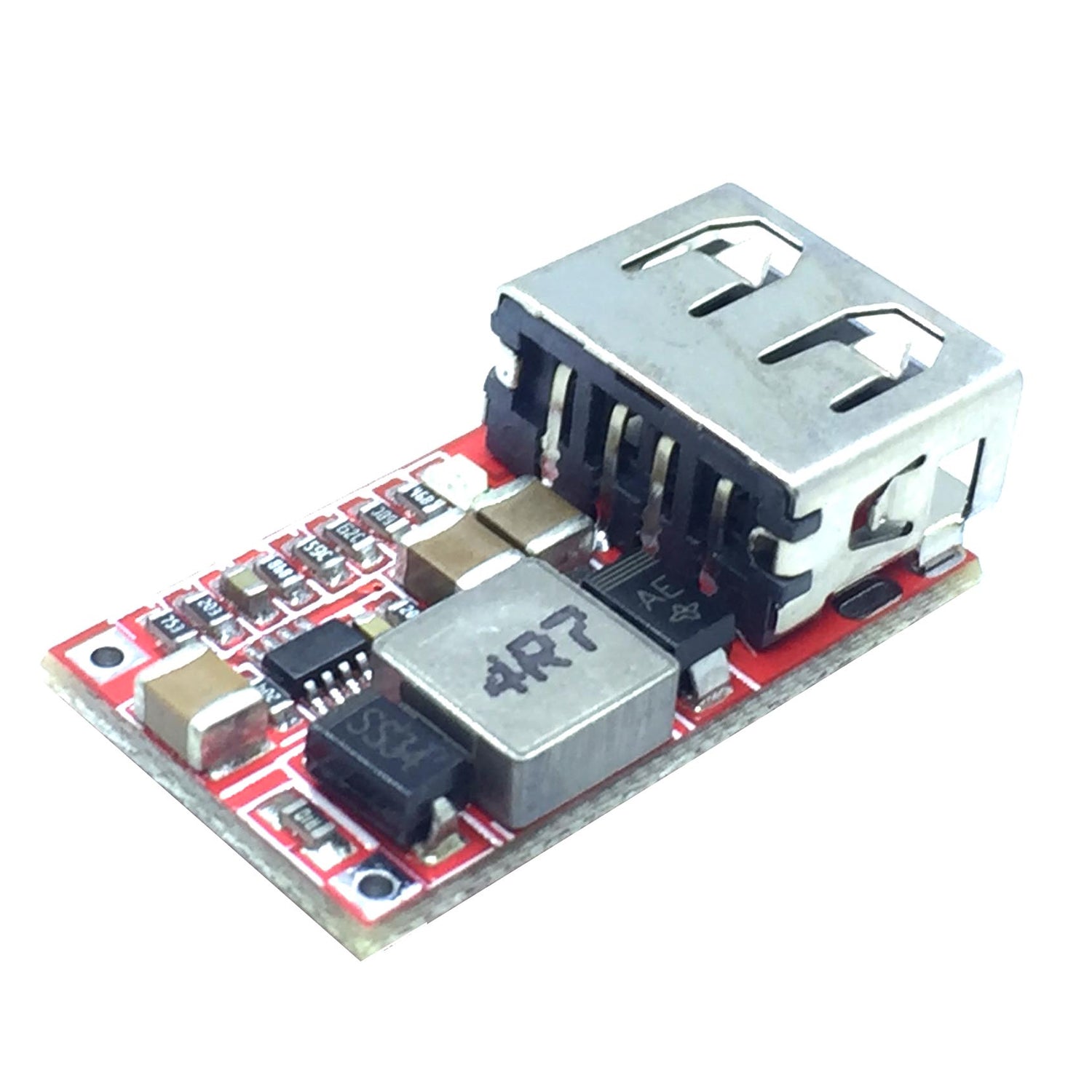

DC 6–24V to 5V USB Output Step-Down / Buck Module Up to 3A
Need a clean 5V USB power source but your supply is higher (like 12V/24V batteries, vehicle power, solar, or adapters)? This compact buck (step-down) converter converts 6–24V DC input to a steady 5V USB output for powering USB devices and microcontroller builds.
Why you’ll want this module
- Wide input: 6V to 24V DC
- Fixed output: 5V via USB-A port
- High current capable: up to 3A (depends on source + cooling)
- Protection features: input reverse-polarity protection + output overvoltage protection
- Perfect for powering Arduino/ESP projects, USB LEDs, small USB fans, and charging small devices
Tip: If you’re powering boards like ESP32 or sensors from a 12V battery, this is an easy way to get stable 5V without wasting heat like a linear regulator.
Common builds (ideas)
- DIY car/vehicle USB power (12V → 5V USB)
- Battery-powered Arduino projects using a 2S/3S pack (7.4V/11.1V → 5V)
- Solar + battery setups needing regulated 5V USB output
- Portable USB power hub inside enclosures
Technical specifications
| Input voltage | DC 6V – 24V |
|---|---|
| Output | 5V regulated, USB-A output |
| Max output current | Up to 3A (real-world depends on your input source + heat dissipation) |
| Efficiency | Up to ~97.5% (claimed) |
| Protection | Input reverse polarity protection, output overvoltage protection |
Wiring notes (important)
- Input side: connect your DC source to the module’s input pads/terminals (+ and −).
- Output side: plug your USB cable/device into the USB-A port for 5V.
- Heat: if you’re pulling high current (near 3A), make sure there’s airflow or space in the enclosure.
- USB charging: this provides 5V power; device charging behavior can vary depending on cable/device requirements.
Quick sanity check: If your input is 12V and you need 5V @ 2A, your source must supply roughly (5V×2A / efficiency) ÷ 12V ≈ ~0.9A or more.
