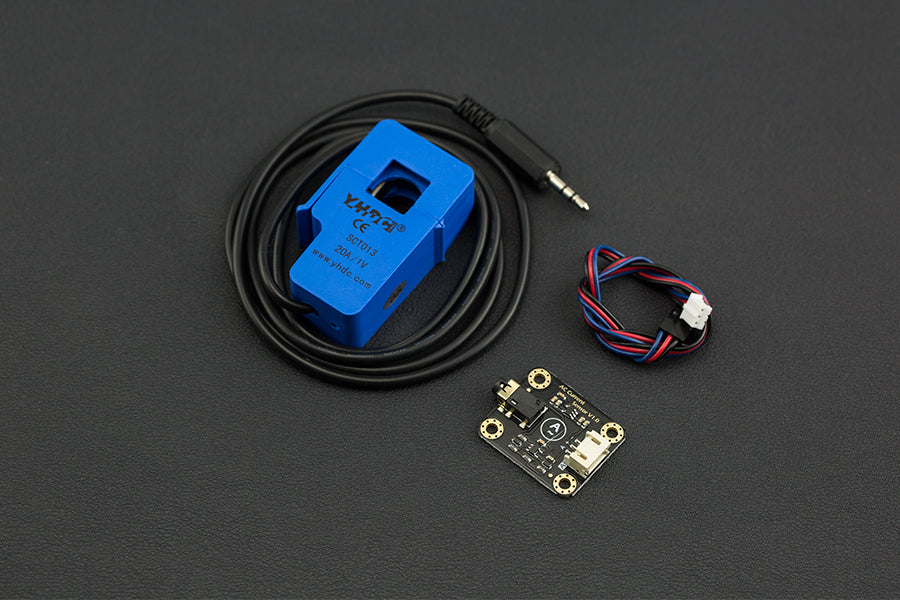

Add Reliable Current AC Sensor Analog Gravity Sensing to Your Next Build
Current AC Sensor Analog Gravity Gravity Analog AC Current Sensor measures AC current through a clamp-style probe, so you can monitor current without cutting the wire under test.
It is a good fit for energy logging, appliance studies, lab demos, and maker projects that need safe current sensing with an Arduino-compatible analog input.
Important: Use the official DFRobot links below for wiring, sample code, downloads, and the latest setup notes for this SKU.
Why you'll love it
- Clamp probe design: Measure AC current without breaking the circuit
- Gravity analog output: Easy to read with common controllers
- Wide supply support: Works from 3.3V to 5.5V
- Good for logging: Useful in home energy and classroom projects
- Compact module: Easy to mount in a project box
- Gravity-ready: Easy plug-and-play wiring for fast setup
What you can build
This part fits monitoring, measurement, logging, alarms, and automation builds. It works well in Arduino, ESP32, and Raspberry Pi style projects where you need reliable real-world data from the current ac sensor analog gravity.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus sensor cables, headers, or a matching expansion shield for faster setup.
Recommended add-ons
Useful add-ons include displays, data logging modules, waterproof enclosures, and matching Gravity cables or sensor shields.
Technical specifications
| Product | Current AC Sensor Analog Gravity |
|---|---|
| SKU | SEN0211 |
| Brand | DFRobot |
| Interface | Analog |
| Clamp probe design | Measure AC current without breaking the circuit |
| Gravity analog output | Easy to read with common controllers |
| Wide supply support | Works from 3.3V to 5.5V |
| Good for logging | Useful in home energy and classroom projects |
| Compact module | Easy to mount in a project box |
| Operating voltage | 3.3V |
Pinout & usage notes
Check the supported input voltage before wiring so the module matches your controller and power source. For analog readings, use a stable reference and keep wiring short when possible for cleaner signals. If you are using Gravity connectors, align the plug correctly and avoid forcing the cable into the wrong header.
DFRobot resources
Official product page: View on DFRobot
Wiki / documentation: Open DFRobot wiki
What’s in the box
1 × Current AC Sensor Analog Gravity
Frequently Asked Questions
Can I use this for logging or monitoring projects? Yes. It is a good fit for data collection, automation, and alert-based builds when paired with a supported controller.
Does it work with other boards too? Often yes, as long as voltage, interface, and pin mapping match. ESP32 and Raspberry Pi users should still check the official docs first.
Where can I find wiring and examples? Use the official DFRobot product page and wiki links below for guides, downloads, and code examples.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
