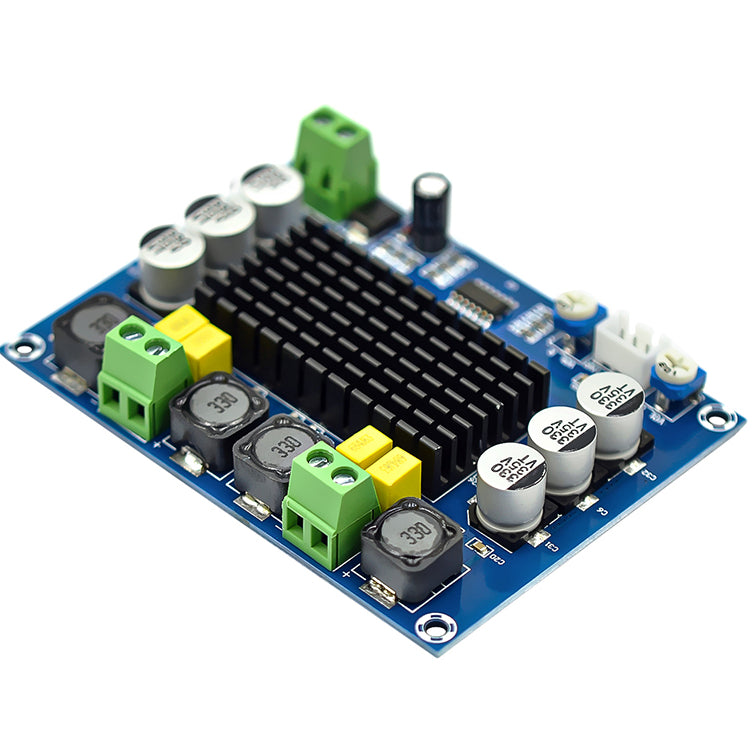

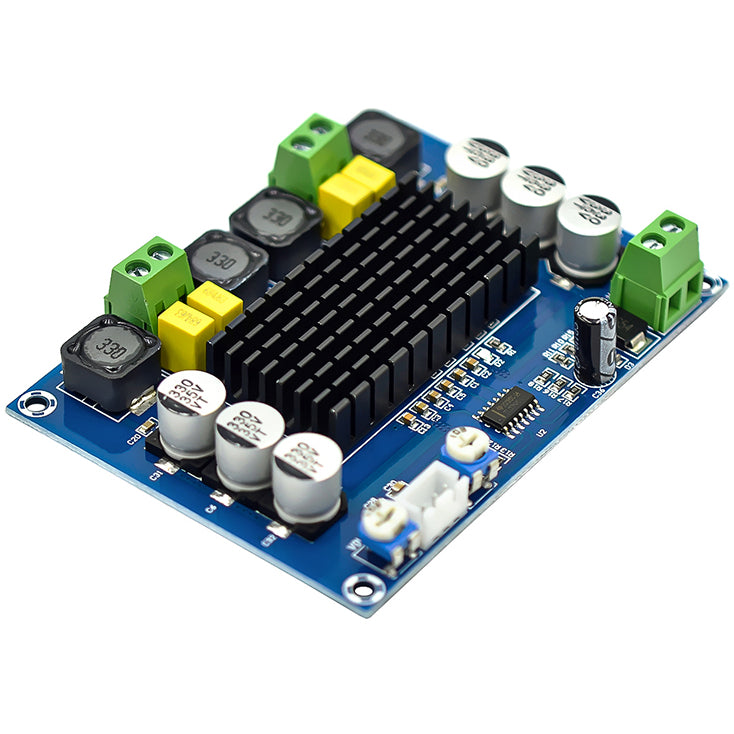

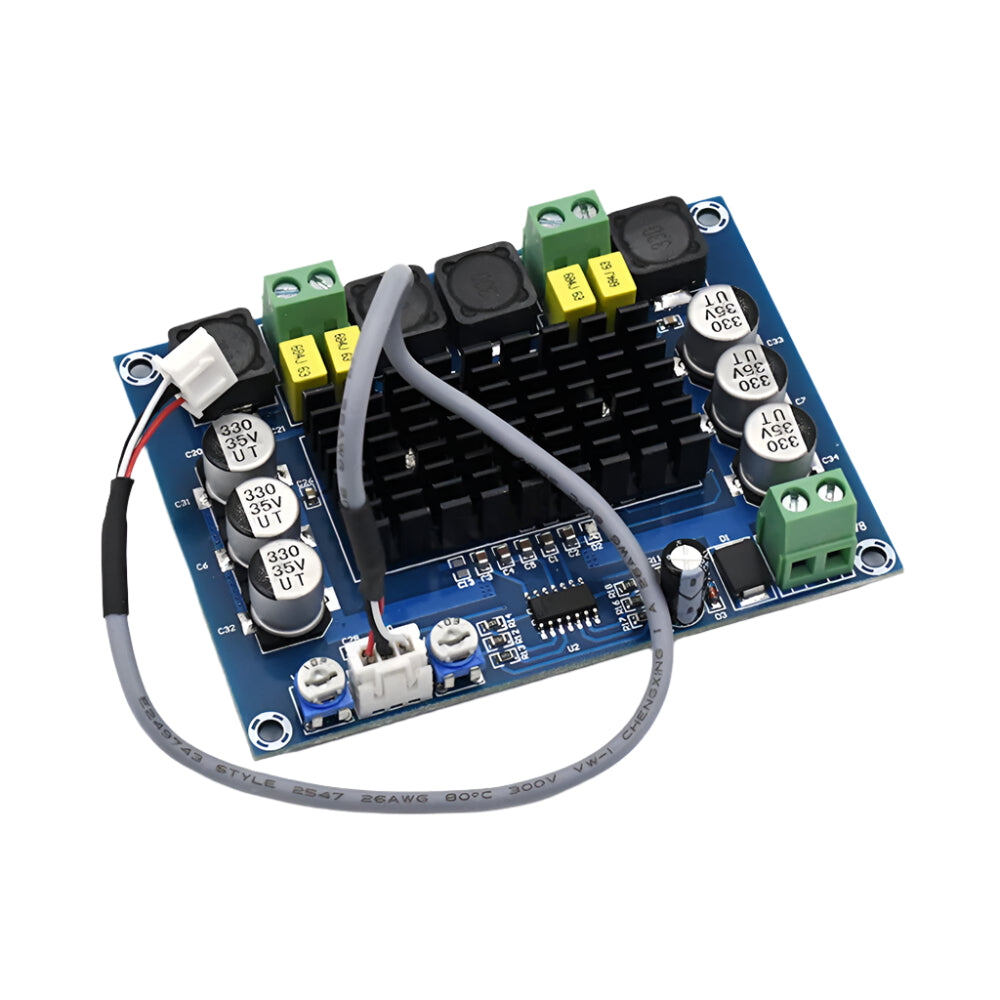

Circuitrocks 120W Digital Power XH-M543 TPA3116D2 Amplifier Board

The Digital Power XH-M543 TPA3116D2 Amplifier Board is designed to bring high-definition audio to a wide range of applications, making it an ideal choice for anyone looking to enhance their sound systems. Whether you're building a home audio system, upgrading your car stereo, or working on custom audio projects, this amplifier board provides the power and clarity needed to elevate your listening experience.

Purpose-built for versatility, the TPA3116D2 Amplifier Board operates efficiently across a wide voltage range of DC12-26V, making it suitable for various environments and power sources. Its high output power, reaching up to 120W per channel, is perfect for driving powerful speakers, ensuring that your audio projects can deliver clear and robust sound even at high volumes. The board's compact design allows for easy integration into different setups, from portable speaker systems to more permanent home or car audio installations.

The primary use of this amplifier board is to amplify audio signals, delivering stronger, clearer sound output for your speakers. It's particularly useful in DIY audio projects, where enthusiasts want to customize their sound systems to achieve the best possible audio quality. Whether you're enhancing a home theater, building a custom speaker system, or simply upgrading your existing audio setup, the 120W Digital Power XH-M543 TPA3116D2 Amplifier Board offers the performance and flexibility you need to achieve superior sound.

 Features:

•  Advanced Chip Type: Utilizes the TPA3116D2 chip, known for its excellent performance and efficiency.
• Versatile Working Voltage: Operates within a wide voltage range of DC12-26V, making it compatible with various power sources.
• High Output Power: Delivers a maximum output power of 120W per channel, ensuring robust and powerful sound.
• Specific Configurations:
    - DC12V: 2*50W
    - DC24V: 2*120W
• Superior Signal to Noise Ratio: Boasts a signal-to-noise ratio of 100db, ensuring crystal clear audio with minimal background noise.

• Dual Channel Stereo: Provides a rich and immersive stereo sound experience.]


Specifications:

• Chip Type: TPA3116D2
• Working Voltage: DC 12-26V
• Output Power:
  • DC12V: 2 x 50W
  • DC24V: 2 x 120W
• Signal-to-Noise Ratio: 100 dB
• Channels: Dual channel stereo
• Dimensions: 92 x 68 x 16 mm

Technical Details

• Datasheet
• Learn More Details in the Video
