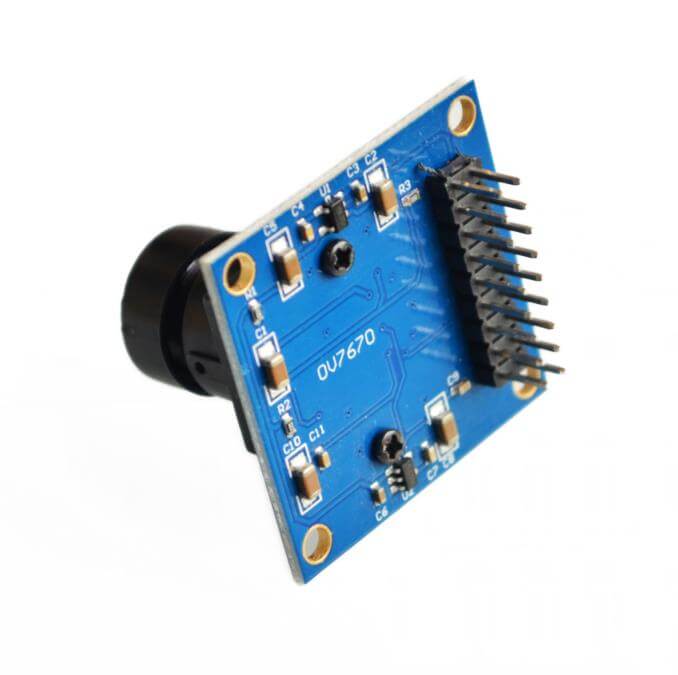

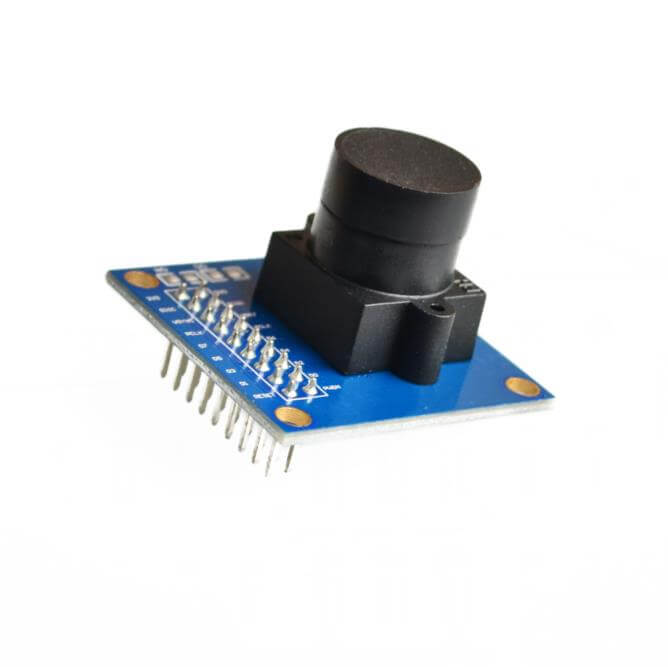

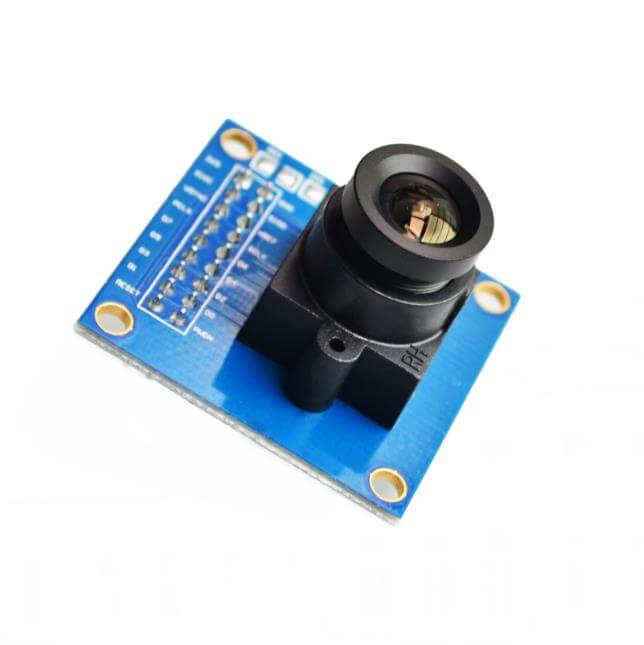

Camera for Arduino OV7670

Camera for Arduino OV7670 - The OV7670 image sensor is a small size, low voltage, single-chip VGA camera and CMOS image processor for all functions. It provides full-frame, sub-sampled or windowed 8-bit images in various formats, controlled through the Serial Camera Control Bus (SCCB) interface.

The camera module is powered from a single +3.3V power supply, and external clock source for camera module XCLK pin. The OV7670 camera module built-in onboard LDO regulator only requires single 3.3V power and can be used in Arduino, STM32, Chipkit, ARM, DSP,FPGA and etc.

Frequently Asked Questions About Camera for Arduino OV7670

Q1: The OV7670 camera module is exactly what it says it is.

For usage with microcontrollers like Arduino, popular camera modules like the OV7670 were created. It can capture both colour and black-and-white images and films.

Q2: What kind of connection does the OV7670 camera module have to Arduino?

The OV7670 module is often connected to Arduino via the power supply, ground, SCCB (Serial Camera Control Bus), and data pins for picture transmission.

Q3: How do I connect to the OV7670's camera module?

The OV7670 module may be communicated with via the SCCB protocol, which is helpful for customising various camera settings including resolution, frame rate, exposure, and white balance.

Q4: Can I shoot photographs with the OV7670 and Arduino?

The OV7670 module can take photographs and transfer them to Arduino for editing or storage, therefore the answer is yes.

Q5: The OV7670 module has the ability to capture video, correct?

Yes, the OV7670 can capture video frames, but it's important to keep in mind that the Arduino's limited processing power may put a limits on the video's resolution and frame rate.

Q6: Are there any libraries or code examples available for the OV7670 with Arduino?

Yes, a variety of libraries and code snippets provide ways to communicate with the OV7670 module in order to take images or record movies. The "ArduCAM" library is one of the more frequently utilised libraries.

Q7: The OV7670 has what resolution and picture quality capabilities, right?

The OV7670 can display images at resolutions as little as 160x120 and as high as 640x480. The image quality may be impacted by the camera settings and resolution choice.

Q8: Can I process photographs with the OV7670 camera module and Arduino?

The Arduino platform can do basic image processing tasks with the OV7670. The limited computer power of the Arduino, however, may make complex picture processing challenging.

Q9: Can I use the OV7670 camera module with a microcontroller other than an Arduino?

It is possible to utilise other microcontrollers with the OV7670 module, provided that they have adequate I/O pins and processing capacity to handle and communicate with the camera module.

Q10: Is the OV7670 the only camera module available for Arduino?

Yes, there are several camera modules for Arduino. The OV2640 and the OV7725 are two examples. These modules could offer differing capabilities, resolutions, or image quality in compared to the OV7670.

Circuit Rocks

Camera for Arduino OV7670

Camera for Arduino OV7670

Low stock: 10 left

Product Code

SKU:AB396

Regular price ₱95.00 PHP
Regular price Sale price ₱95.00 PHP
Sale Sold out
Shipping calculated at checkout.
