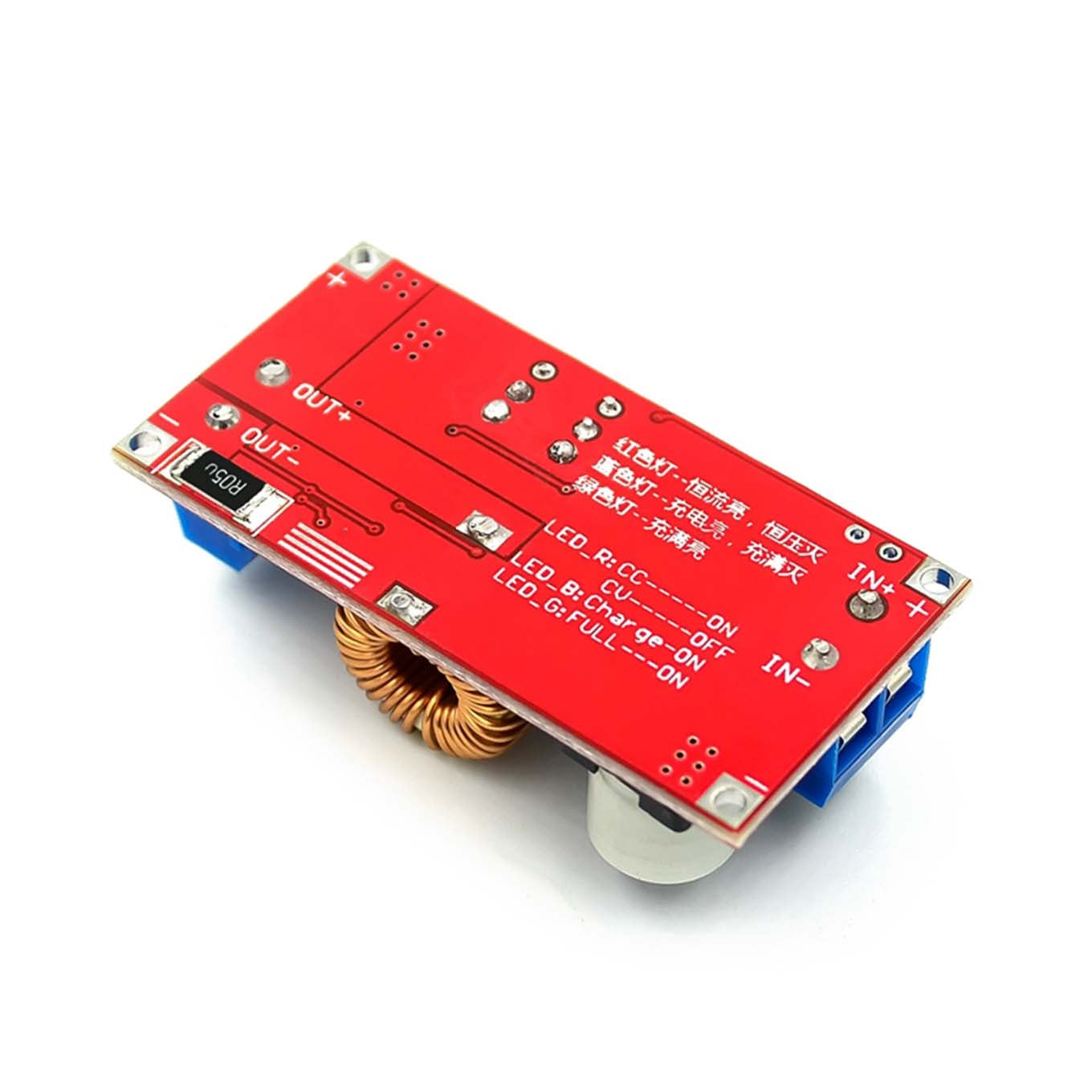

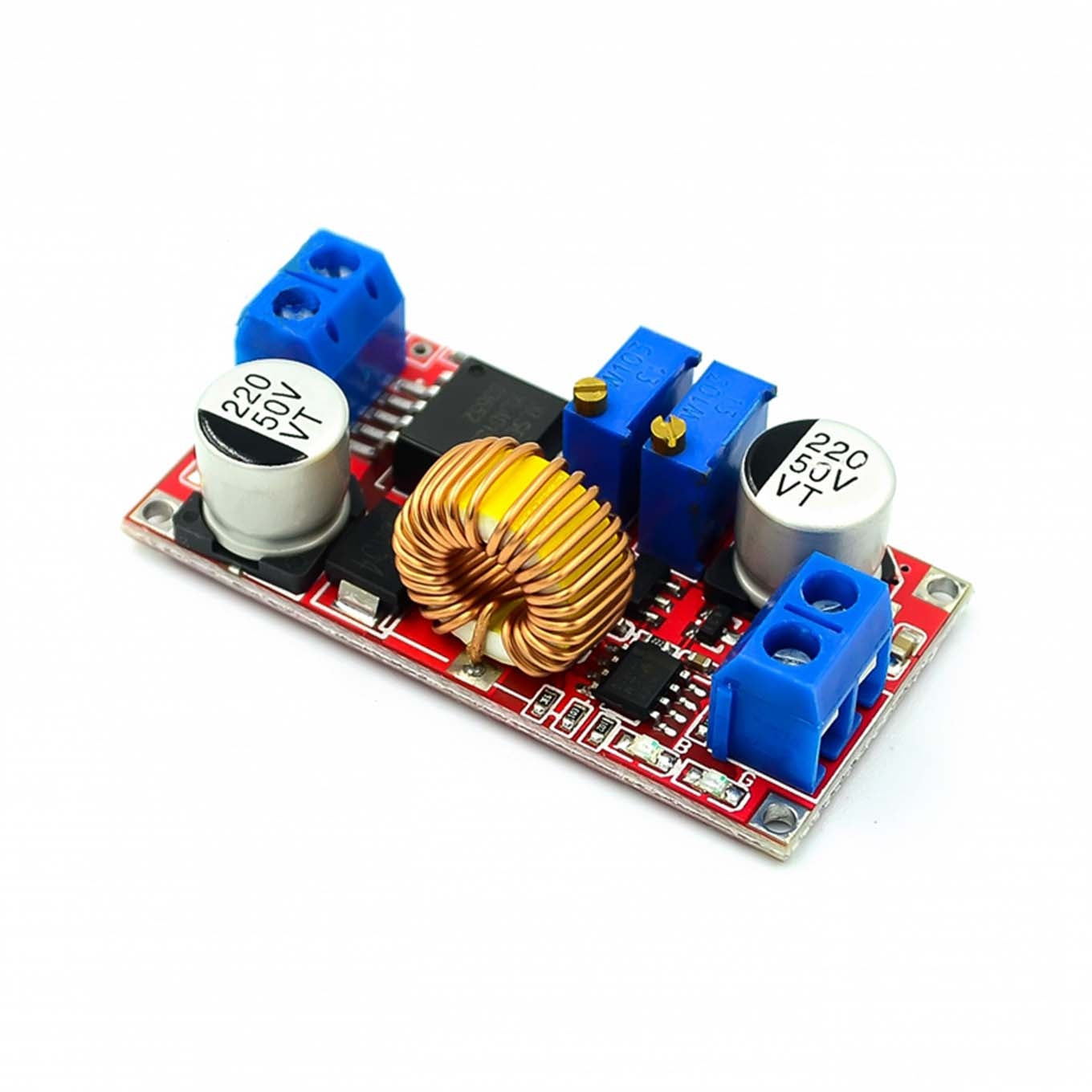

This converter is easy to use. It has a DC plug and a USB out. It can cover voltage from 4-38V to 1.25-36V.
QUICK SPECS:
- Input: IN + input positive, IN- input negative
- Output way: OUT + output positive, OUT- output negative
- Input voltage: 4-38V
- Output voltage: 1.25-36V continuously adjustable
- Output current: adjustable, maximum 5A
- Output Power: 75W maximum
- Operating frequency: 180KHz
- Working temperature: -40 to + 85 degrees
- Conversion efficiency: up to 96%
- Short circuit protection: Yes (limit current 8A)
- Overtemperature protection: (automatically shut off the output after overtemperature)
- Input reverse polarity protection: None, (if necessary, please enter the string into the high current diode)
- Installation: four 3mm screws

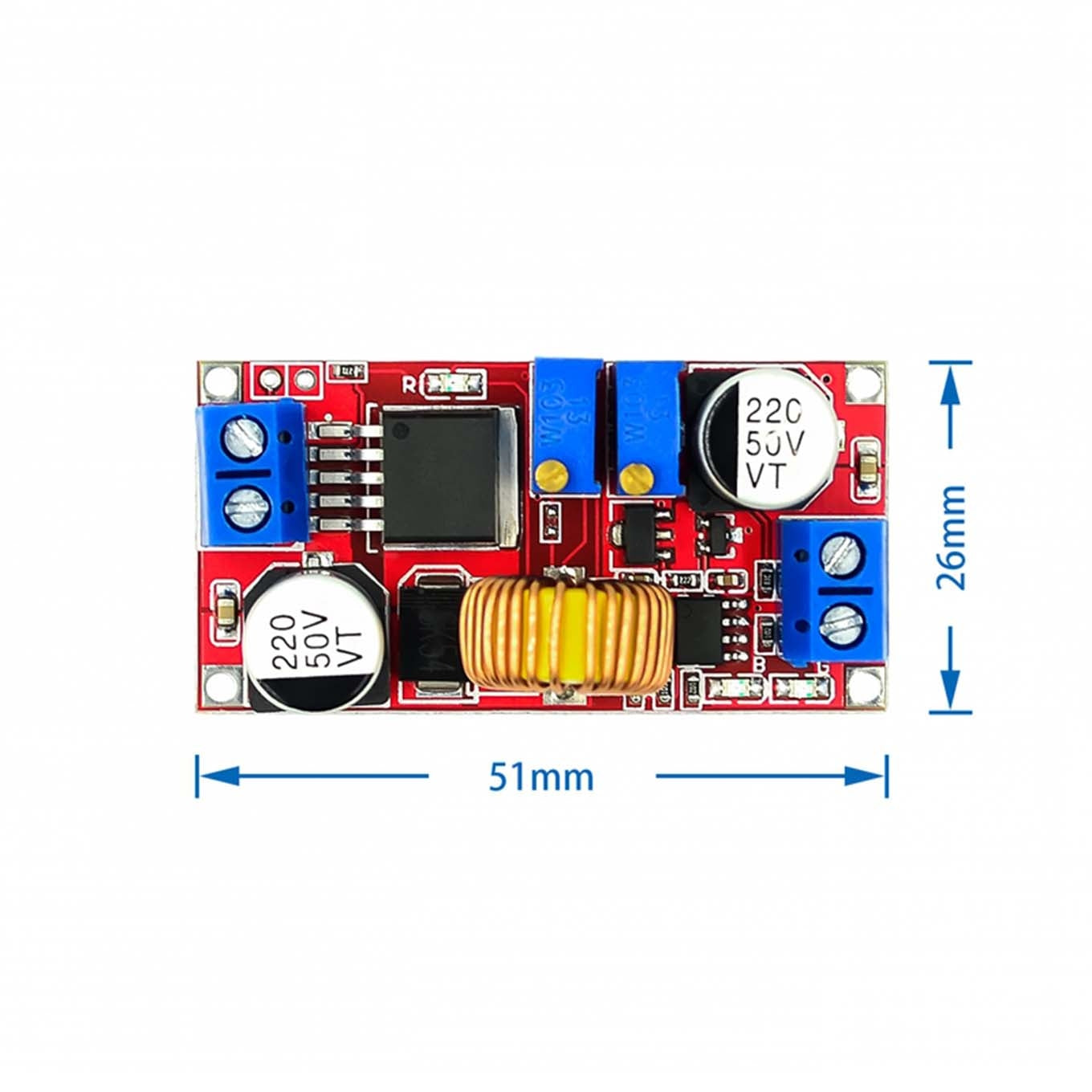

- Module dimensions: 51mm x 26mm x 15mm
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
